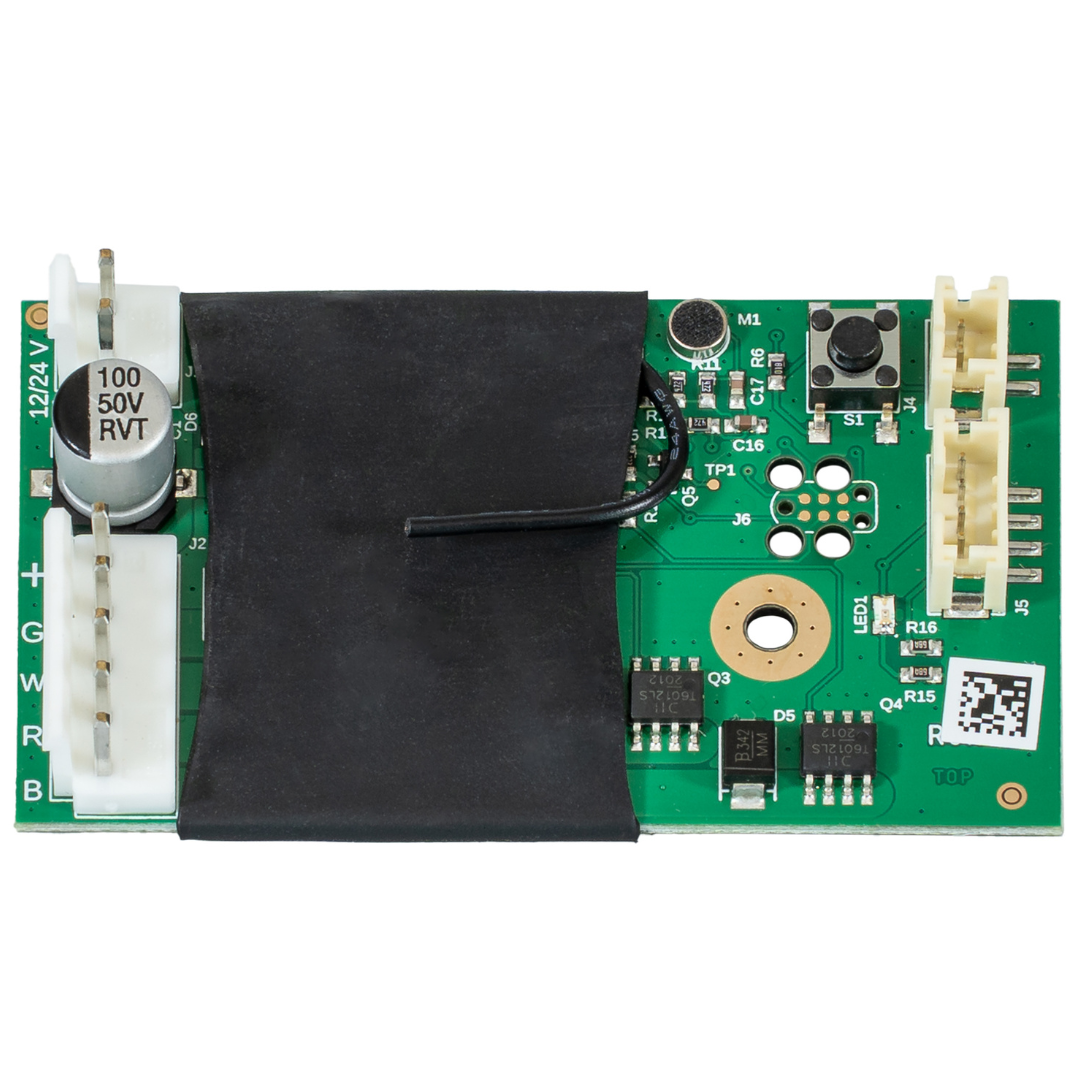

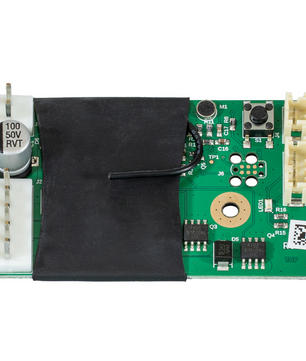

Wireless LED Controller for Standard 12-24V LED Strips
The Ape Labs NeonStripe PCBA Controller allows you to bring standard LED strip tape (analog only, not for digital/pixel tape) from any manufacturer into the Ape Labs ecosystem. This powerful controller supports wireless control via the ApeRemote or the Ape Labs Connect app, seamlessly integrating your existing LED rope lights into the Ape Labs system. Equipped with a built-in microphone, it enables MusikMode for automatic sound-synced light shows, just like every other Ape Labs product.
Designed for flush-mount boxes and permanent installations, the NeonStripe PCBA Controller also works with any commercially available 12-24V LED strips. Whether controlling multiple groups with a remote, smartphone app, or DMX universes, this controller provides flexibility and ease of use for both temporary and permanent lighting setups. It includes PCB plugs and connecting terminals, simplifying installation and setup.
Ape Labs NeonStripe PCBA Controller Features
- Compatible with standard LED strip tape from any manufacturer (analog only, does not support digital/pixel tape)
- Integrates seamlessly into the Ape Labs ecosystem with wireless control via ApeRemote or Ape Labs Connect app
- Enables MusikMode for automatic sound-synced light shows with built-in microphone
- Supports 4-group management via remote control and app or up to 4 DMX universes
- Automatic signal repeater from lamp to lamp for extended wireless range
- Plug-and-play design with easy PCB connector and terminal contact for LED strip and power supply
- IP-rated for permanent indoor installations
Specifications
-
Control Options: ApeRemote, Ape Labs Connect app, DMX control (4-channel mode 8 bit, 7-channel mode 8 bit, 8-channel mode 16 bit)
-
Wireless Frequency: 2.4 GHz (2,400 - 2,485 MHz)
-
Wireless Power: Max. 20 dBm ~ 100mW (EIRP)
-
Power Input: 12-24V DC
-
Power Output: 12-24V DC
-
Max Power: 100 watts (supports up to 20 meters of Ape Labs NeonStripe)
-
RGBW: 4-channel LED controller
-

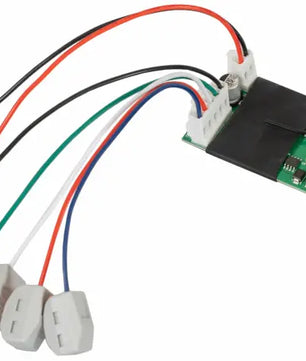

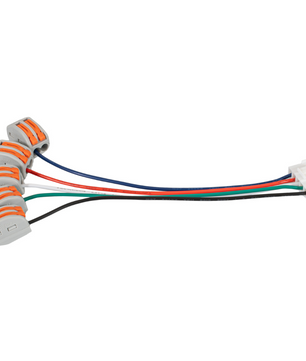

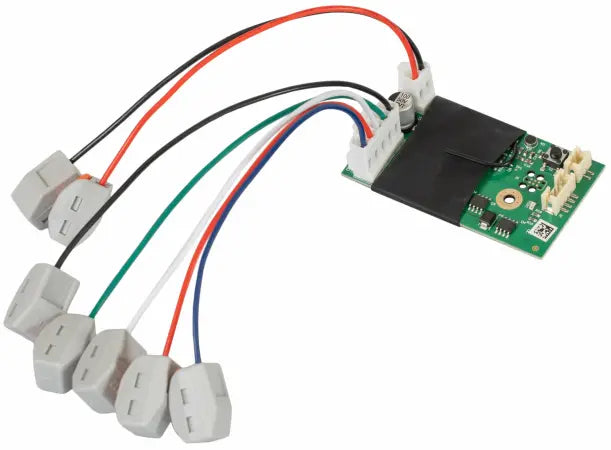

Included Accessories: Controller circuit board, PCB plug with terminal contact for LED strip and power supply
Ape Labs Ecosystem
- Control all Ape Labs items with a single RF Remote or App (or standard DMX)
- 1-Mile Wireless Range with App or DMX, 200ft Non-Directional Range with Remote
- Without DMX, still get DMX-Like effects with super-simple "grouping"
- MusikMode: 1-Button Light Show to Sound (Not 'Sound Active', a real light show)
- Automatic integration and syncing with every other Ape Labs product
- Smart set-ups instantly and seamlessly connect to your controller
- On-the-fly programming and remote addressing
- Cross-platform and Community Sharing of Scenes and Programs
- High CRI Output, Ultra Vivid Colors
- Hand Crafted Color Macros by Top Tier Event Professionals from USA
- Battery Life Extension: Set the time you need and lights auto dim to the max output for that duration
- Flicker Free Mode for Video Recording
- Wireless Range Increases as More Fixtures are Added (all have repeaters)
- Premium Components for Superior Quality
- Super High Efficiency: More Output with Less Power
- Solid State, Fanless Operation
- PWM (LED refresh rate) adjustable via smartphone app (500Hz to 4000Hz)
- Free Firmware Updates for Life
- Simplified design with smart software, ensuring ease of use and reliability
- Compact and lightweight design, making it easy to transport and set up
- 100% Designed, Engineered & Hand Assembled in Germany
- 3-Year USA Warranty
