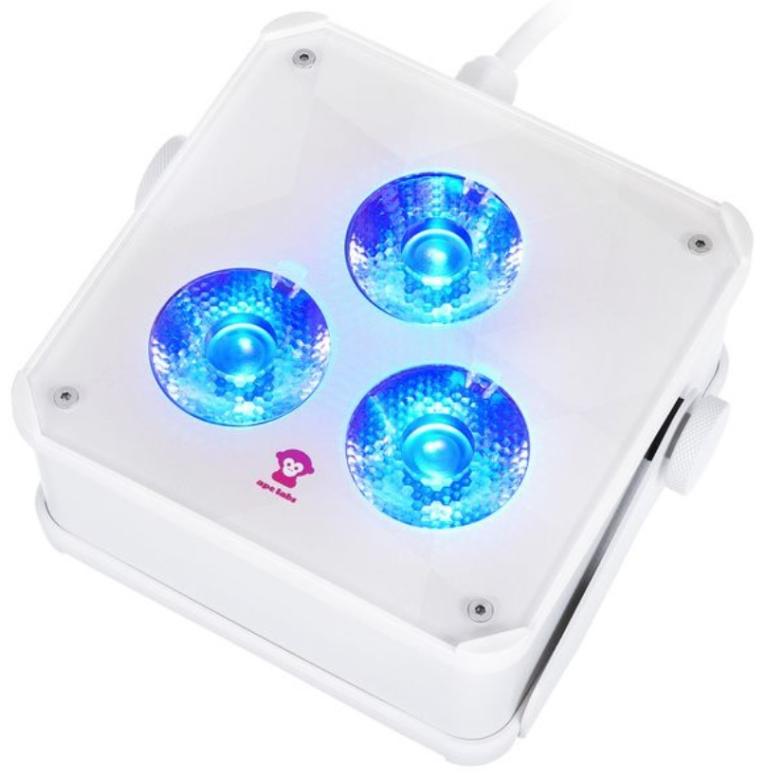

Ape Labs Maxi INS 2.0 | Solo - IP65, Creme

Architectural Wash Light for Installs

The Maxi INS 2.0 IP is the instal version of the Maxi 2.0 IP, with an IP65 integrated power supply and standard Edison plug/cable (without battery). Created in response to the demands of architectural lighting designers and installers, this remarkable fixture combines convenience, versatility, and unparalleled performance.

Simplify installations by eliminating DMX cables and laborious programming efforts. Every Ape Labs product on the market has a rock-solid, wireless receiver built-in for DMX, App Control, and Remote control. The Remote (200ft wireless range) and App (1 mile wirelss range) options are extremely popular among users because they simplify programming and control without sacrificing performance.

Prepare to be dazzled by the Maxi INS 2.0's impressive brightness, offering more than double the luminosity of its predecessor, the Maxi v1. Thanks to cutting-edge AmberWhite LED technology, this fixture delivers color reproduction like never before. Immerse yourself in 29 built-in color presets, meticulously crafted by industry professionals specifically for the event industry. Transform any space with stunning lighting designs at the touch of a button.

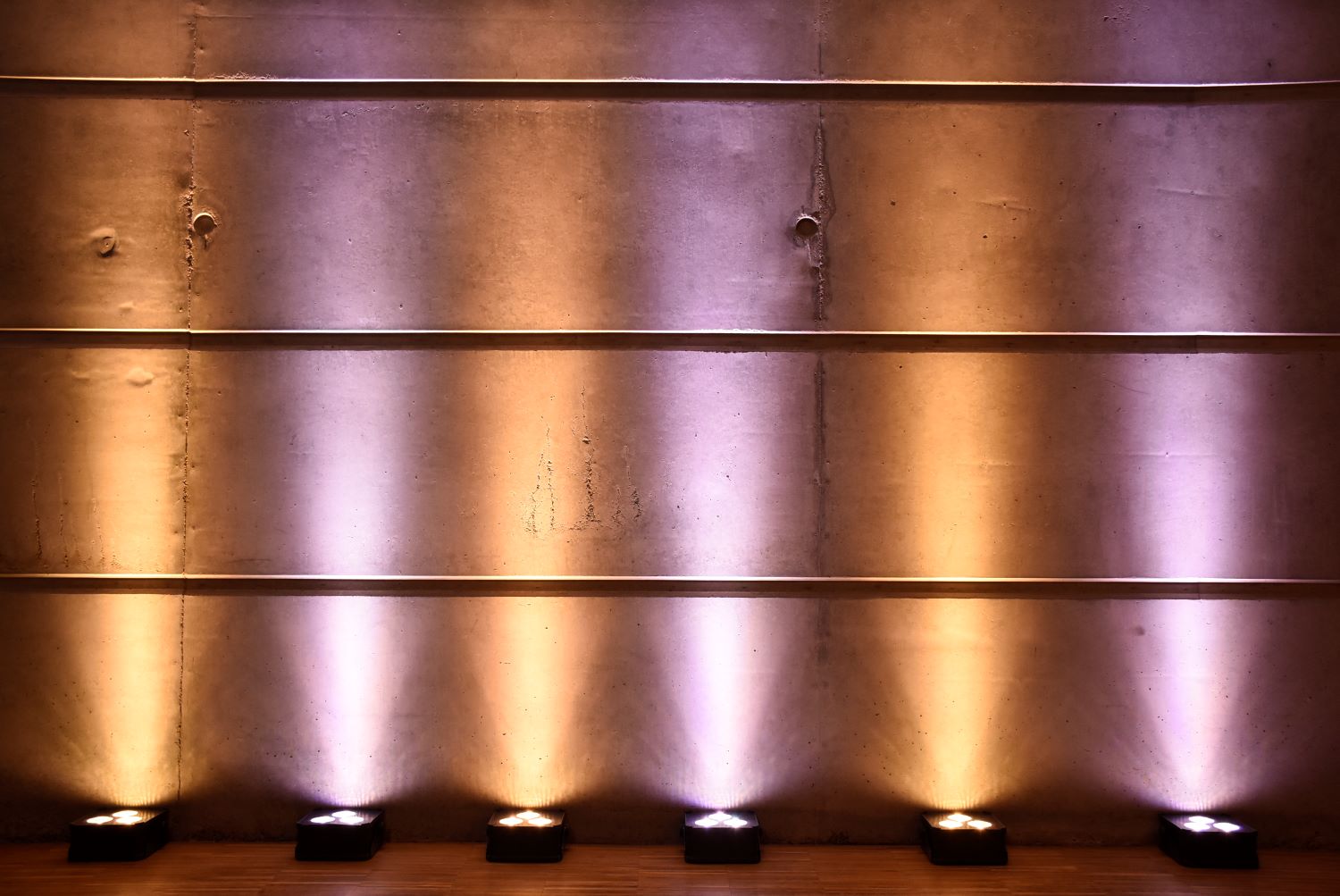

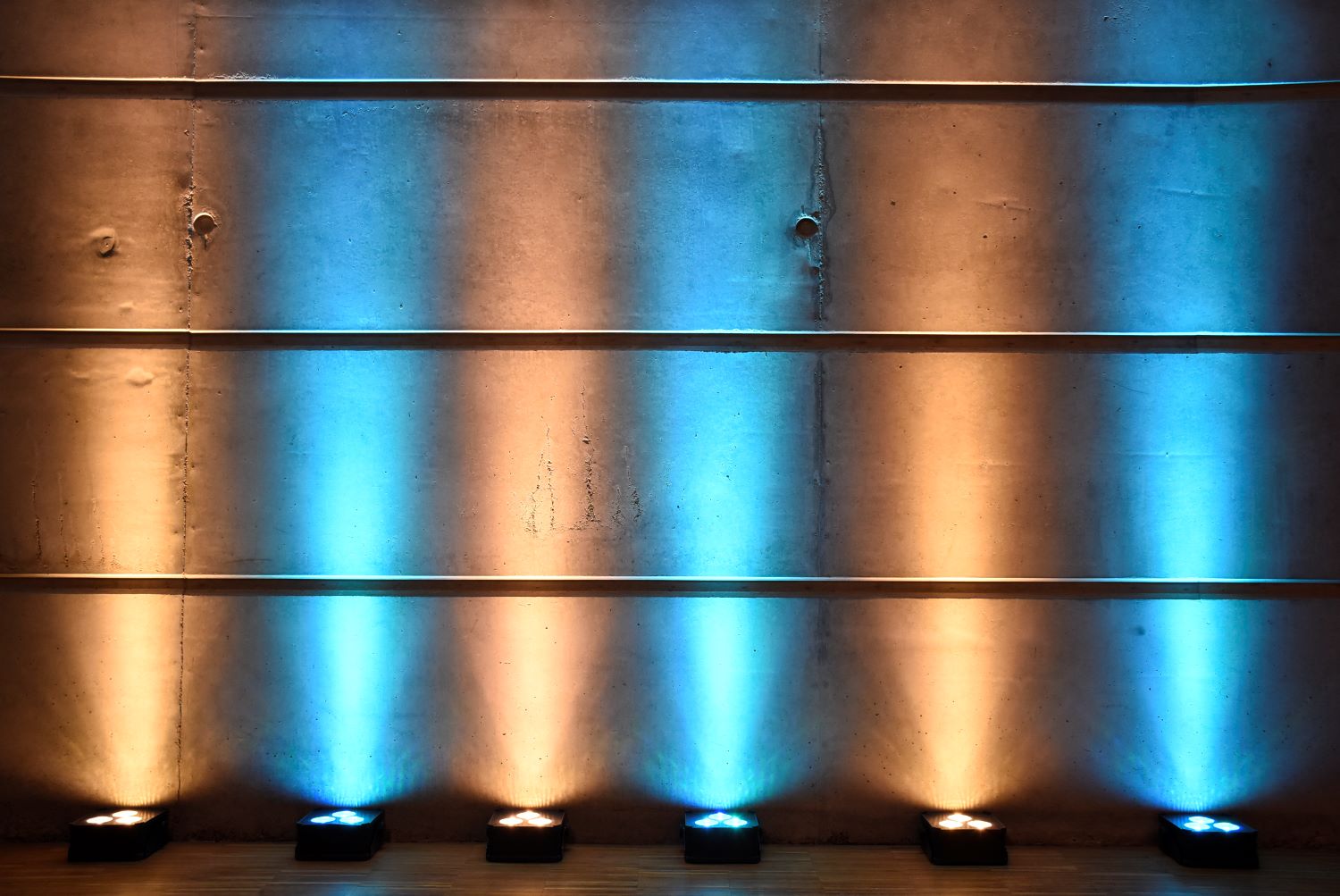

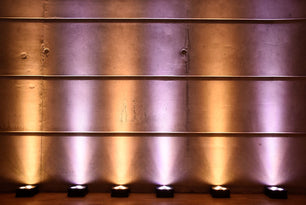

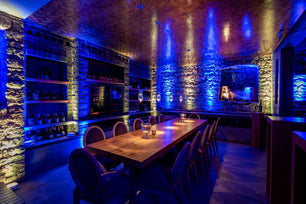

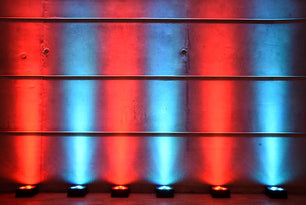

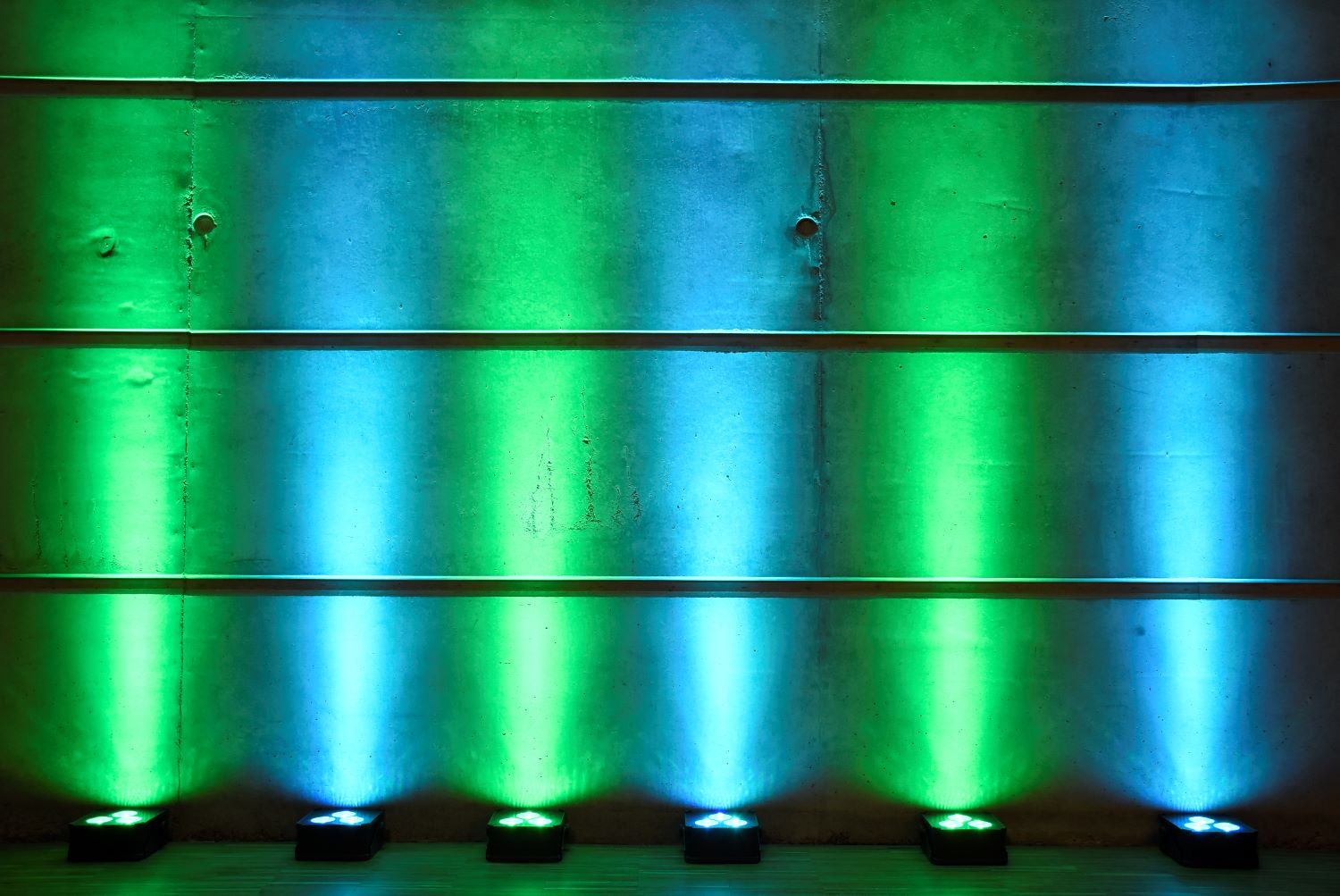

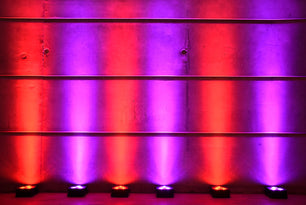

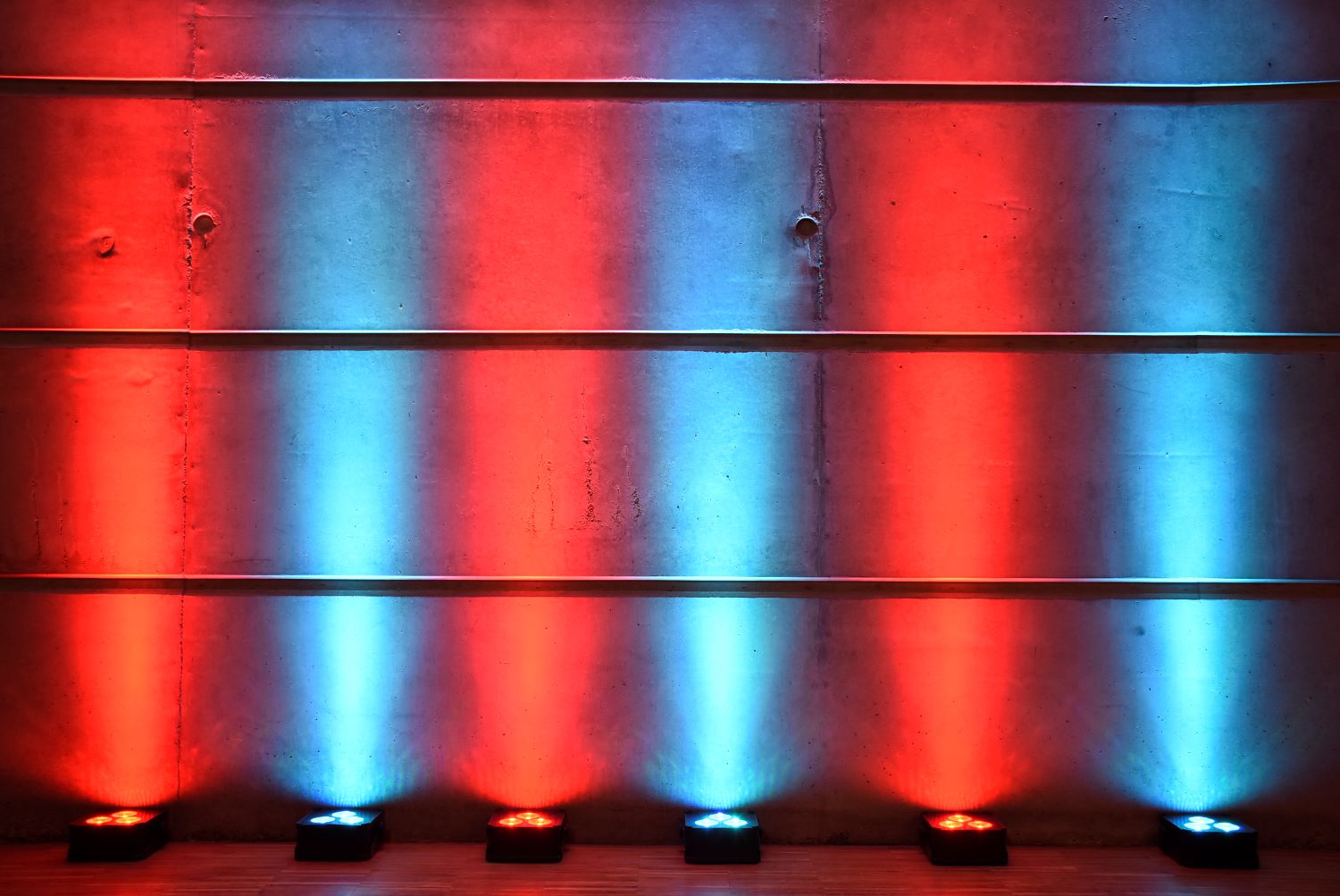

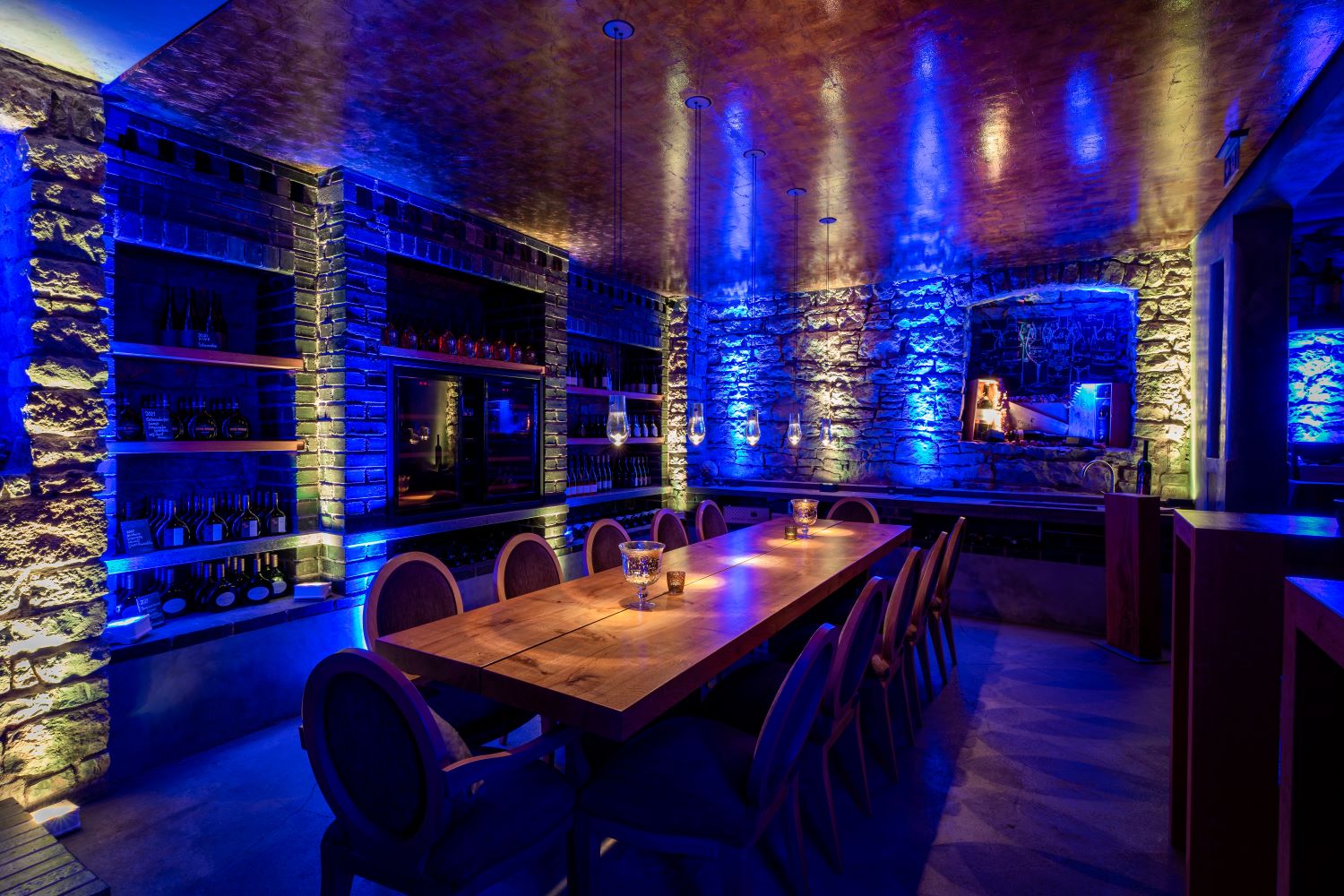

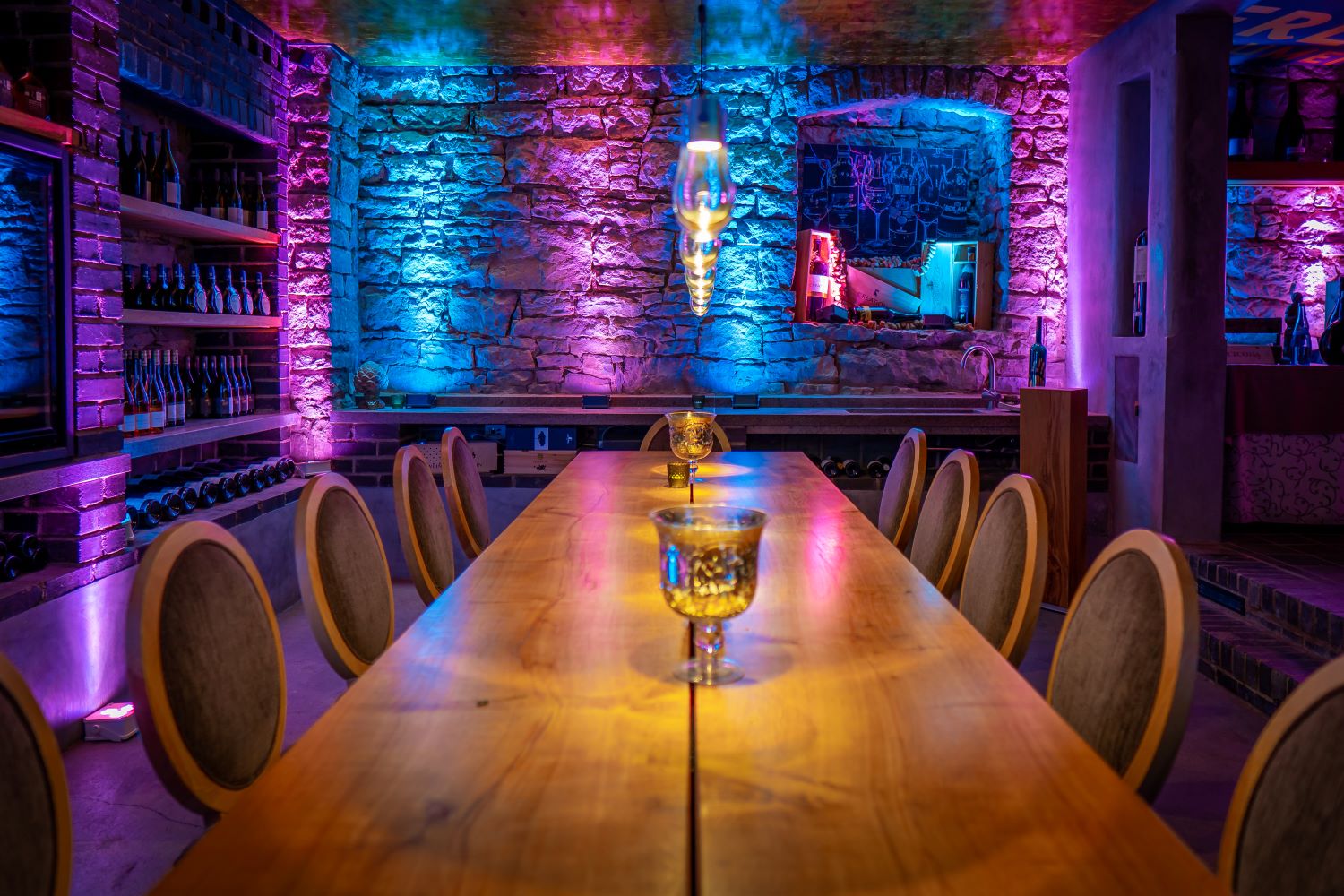

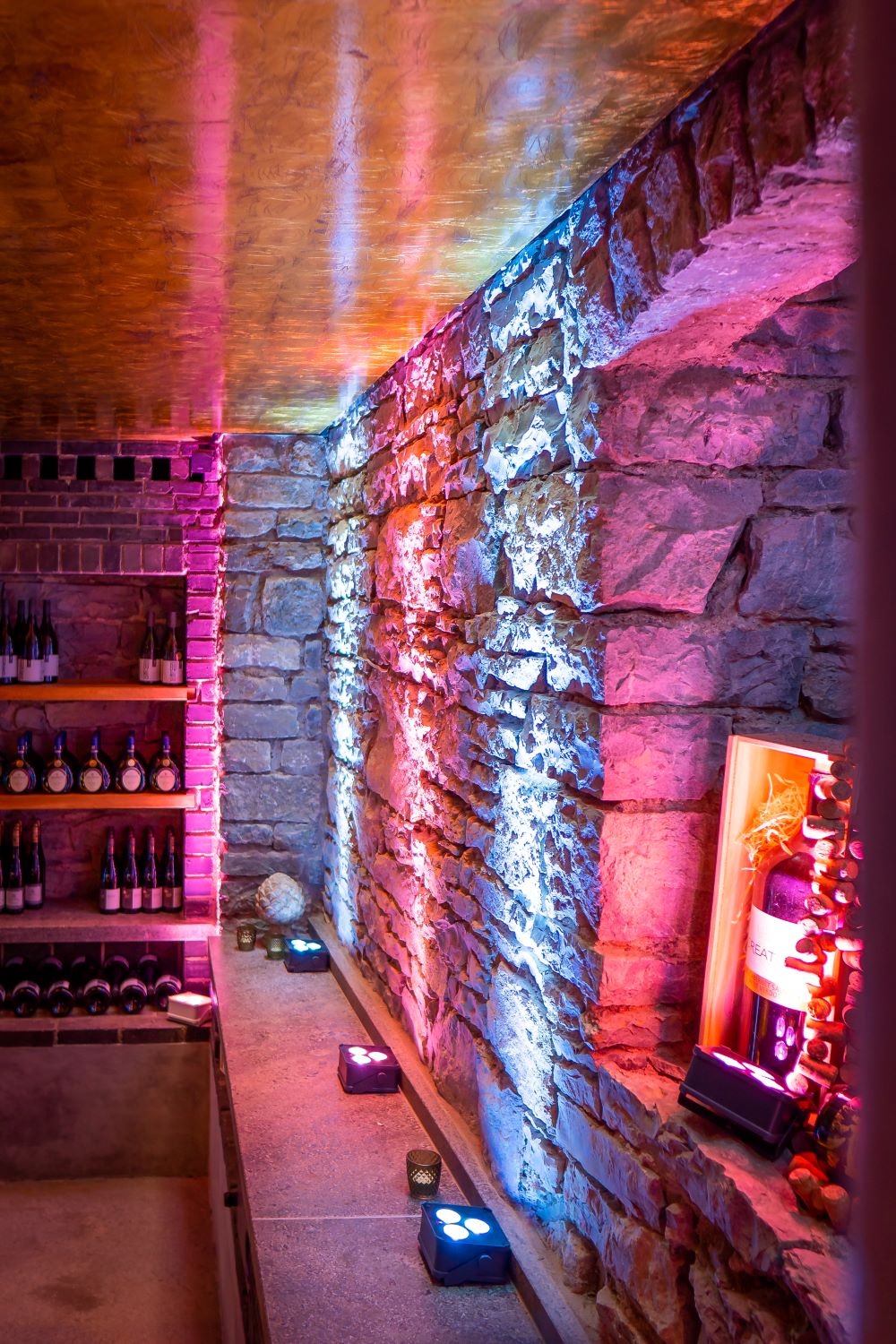

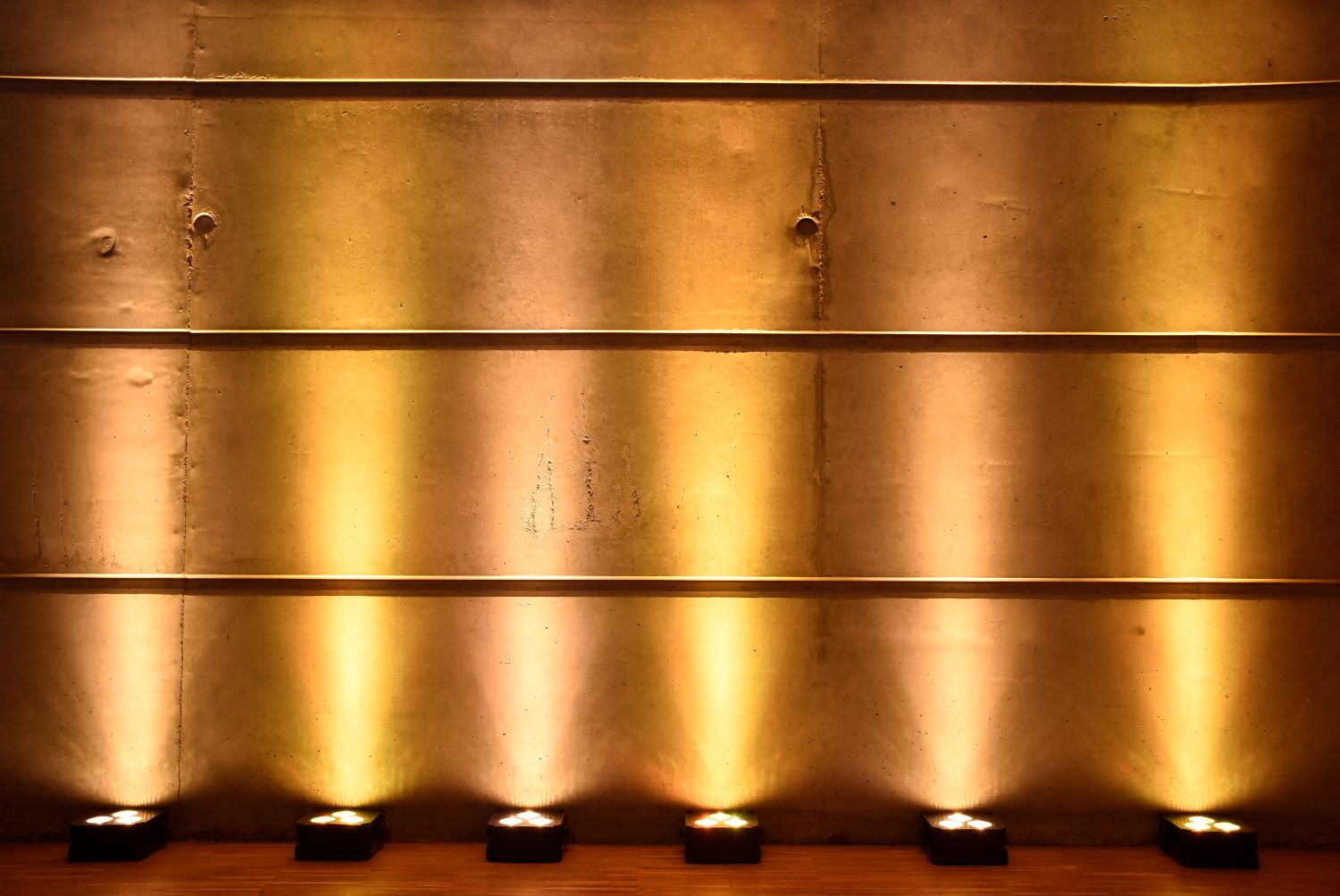

Crafted with meticulous attention to detail in Germany, the Maxi INS 2.0 combines reengineered optics with the warmth of AmberWhite LED technology. The result is a fixture that excels in uplighting, ambient lighting, dance floor lighting, stage lighting, and beyond. Elevate any architectural or entertainment space with ease and precision.

Experience the future of architectural lighting installations with the Maxi INS 2.0 IP. Its remarkable features and unrivaled performance make it the ultimate choice for professionals seeking effortless installation, creative freedom, and exceptional lighting experiences.

Ape Labs Maxi INS 2.0 Features

• 3x 15 Watt RGBaW with AmberWhite LED Technology, 45 Watts
• Single Color LUX as high as 12,370 @1m (see table below)
• Refreshed optics for optimal brightness
• Variable Beam Angle. Standard with 15°. Available optics: 10°, 15°, 25°, & 45°.
• More than 2x brightness of previous generation original Maxi
• Integrated IP65 Power Supply
• Solid State, Fanless operation
• 29 carefully curated color presets designed for weddings & events
• Install Indoor or Outdoor Use
• Scratch Resistant Housing and Acrylic Glass Surface
• Available in Anthracite Gray or Creme
• Free standing or mountable via included bracket
• PWM (LED refresh rate) adjustable via smartphone app (500Hz to 4000Hz)
• Compatible with smartphone app via Connect hardware
• 100% Designed, Engineered, & Hand Assembled in Germany

Control / Operation:

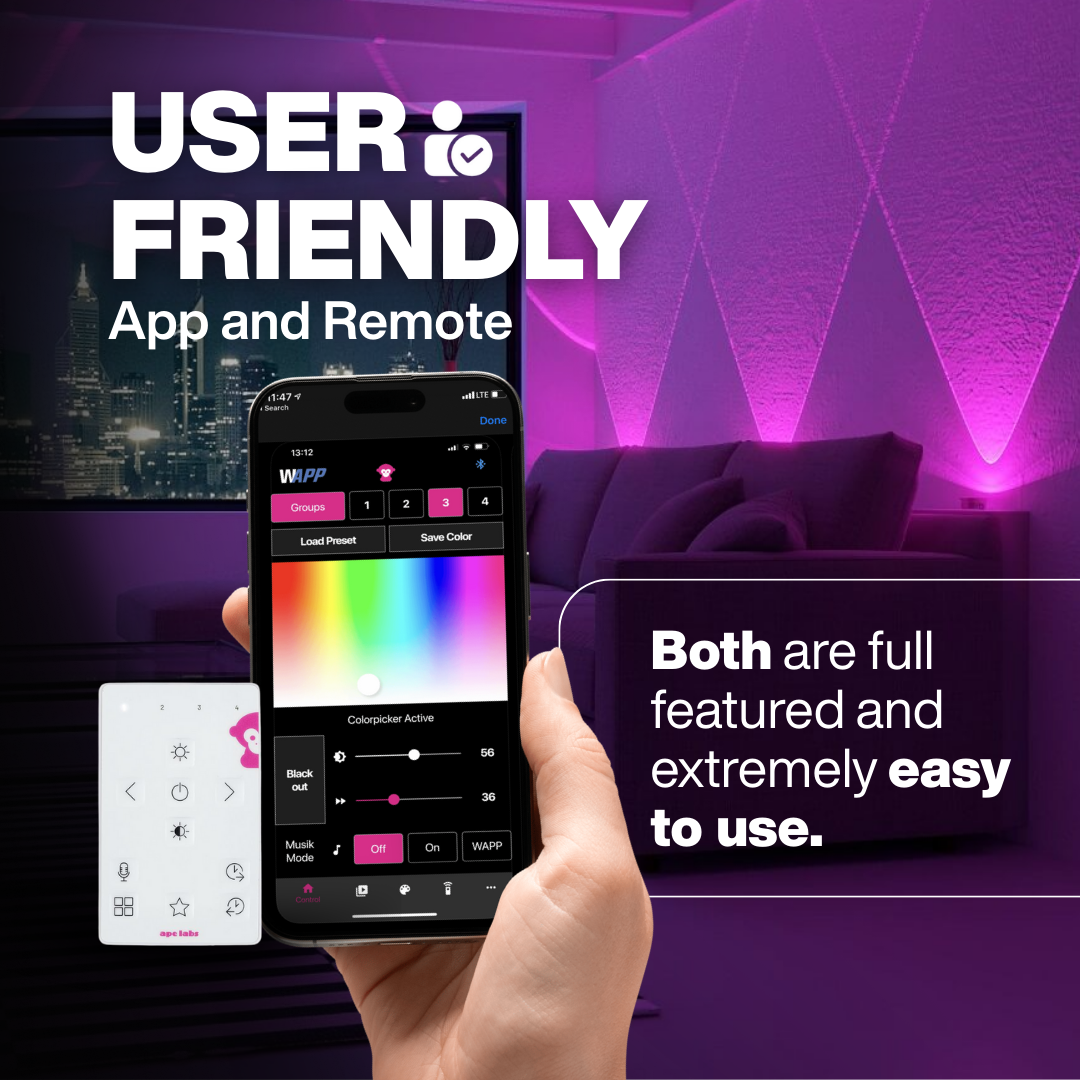

Ape Labs is known to "Keep it Simple" when it comes to controlling lights. A beginner with no instructions can typically operate an Ape Labs fixture within seconds of picking up an ApeRemote or opening the app. But its simplicity does not lack in features. Two of the most famous features are "Grouping" and "MusikMode".

Grouping allows the user to create DMX-Like shows on the fly by grouping any number of mixed & matched Ape Labs SKUs on up to four groups. Then being able to control groups individually or universally.

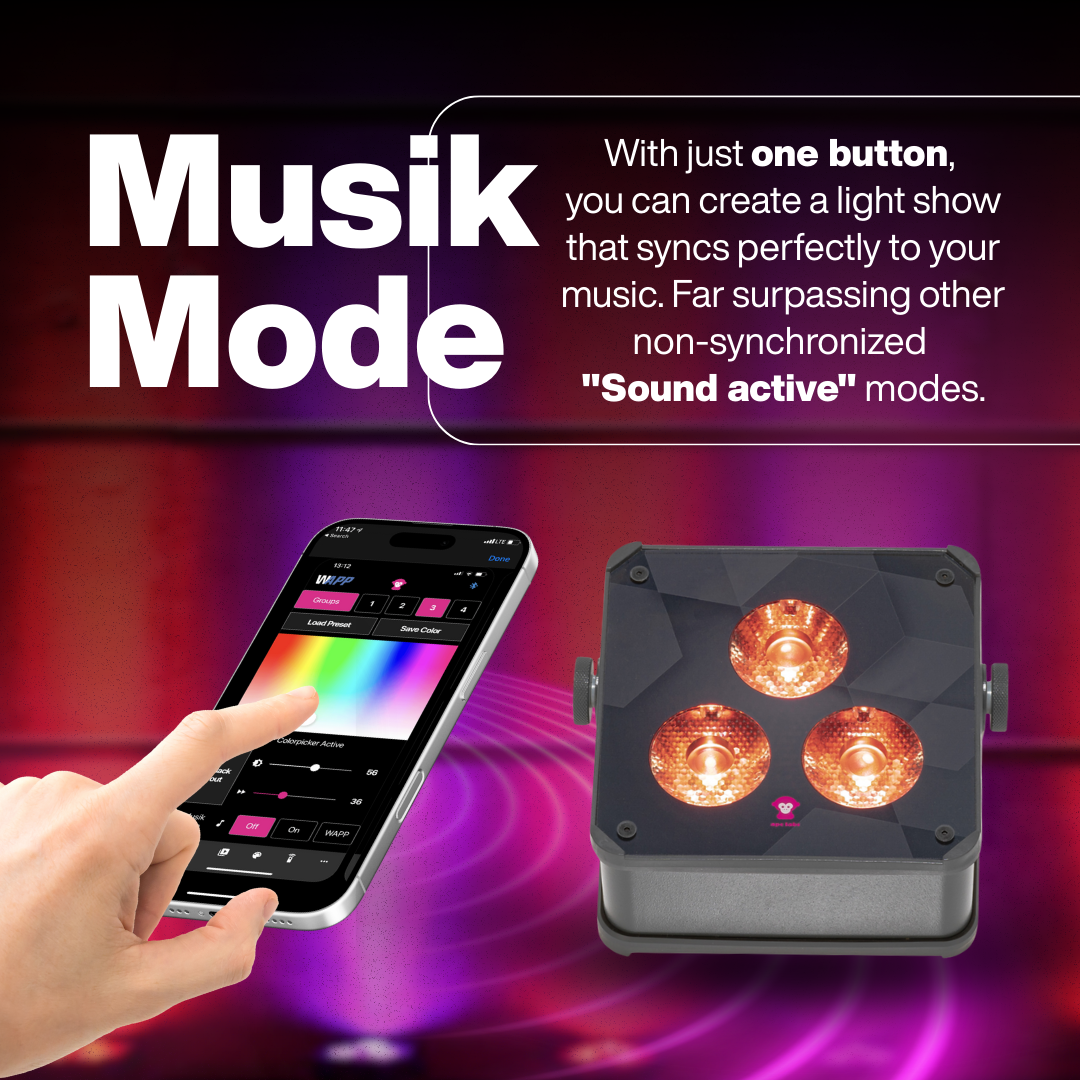

MusikMode will automatically create a music-based light show with the press of a button. It uses proprietary technology that analyzes the sound in the room and total number of Ape Labs fixtures to build a constantly evolving light show. Just don't call it "Sound Active".

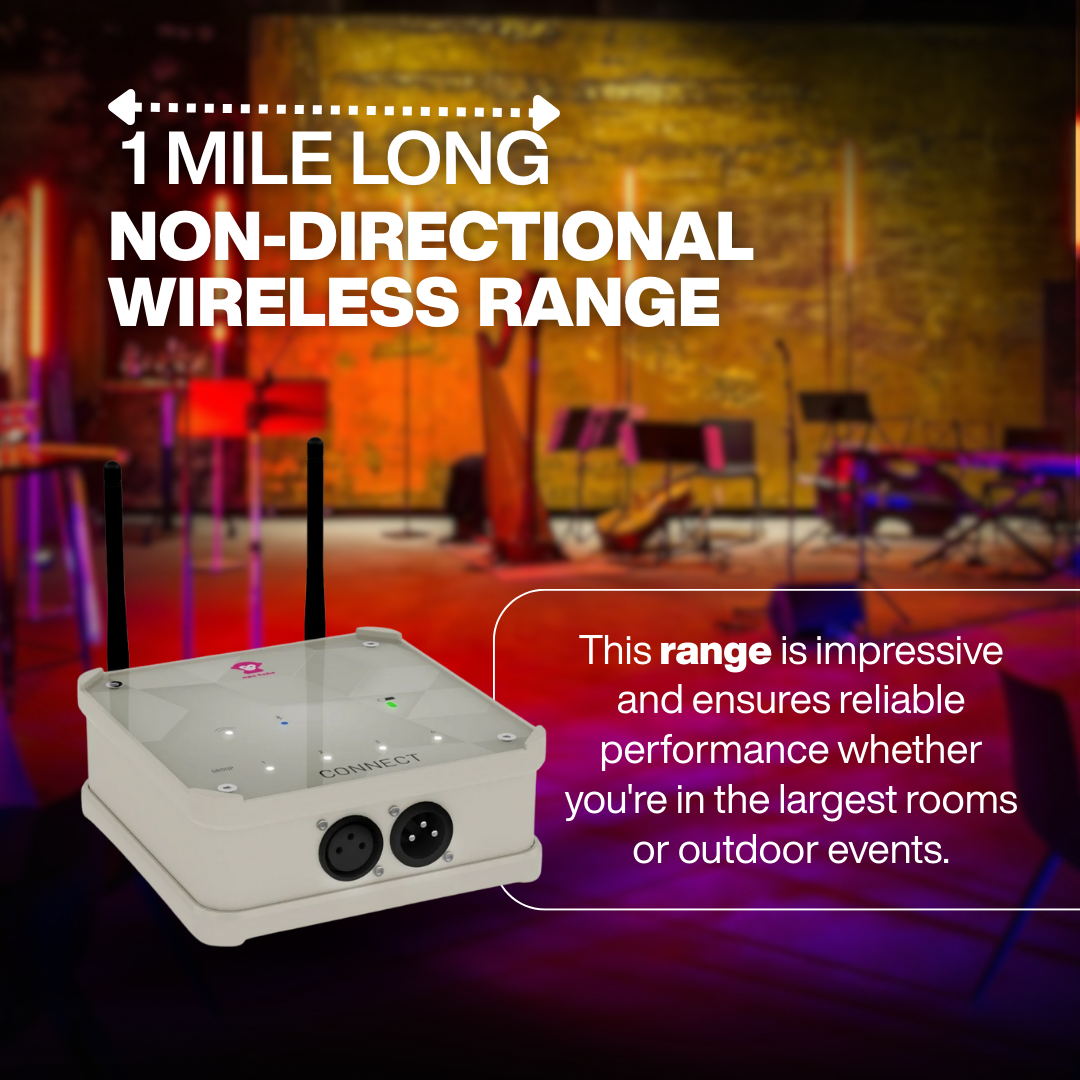

• Wireless DMX: 4, 7, or 8 Channel Modes (W-App / Connect required, 1 Mile Range)
• Wireless KNX (W-App / Connect required, 1 Mile Range)
• Wireless Android / iOS App (W-App / Connect required, 1 Mile Range)
• Wireless Remote Control (ApeRemote required, 200ft Range)

• Wireless range increases as more fixtures are added since all lights repeat the signal
• Pairing is possible with ApeRemotes or W-App/Connects to increase number of groups or universes in the room
• W-App/Connect will save settings and programs to the cloud for cross device operations or community sharing
• Free software/firmware updates via W-App or Connect

Specs:

• Made from stainless steel
• Color cream white or anthracite gray
• wavelength red = 622.5nm
• wavelength green = 522.5nm
• wavelength blue = 457.5nm
• AmberWhite Color Temperature = 2700K
• Color rendering in CRI (Ra) = 90
• PWM (Pulse Width Modulation) = 500Hz - 4000Hz
• flicker free = Yes
• Dimmable = Yes
• Total lamp luminous flux = 1635 lm

Photometric Data:

When comparing Ape Labs LUX values to competitor values, make sure to look at single color ratings. If only a single LUX value is given for a fixture, it's most likely an "All On" rating. This means that every color is combined when rating.

The Ape Labs Maxi 2.0 IP comes standard with 15° optics, but three alternative optics are available. Below are the LUX ratings for each color, with each beam angle, at both 1m and 2m distances.

**With standard 15 degree optics, the Maxi 2.0 LUX ratings average 247% (or 2.47x brighter than) the original Maxi @2m

Size:

• Dimensions Maxi 2.0: 13.7x13.7x6.5cm / 5.4x5.4x2.6in
• Weight Maxi 2.0: 1.5 kg / 3.3 lbs
