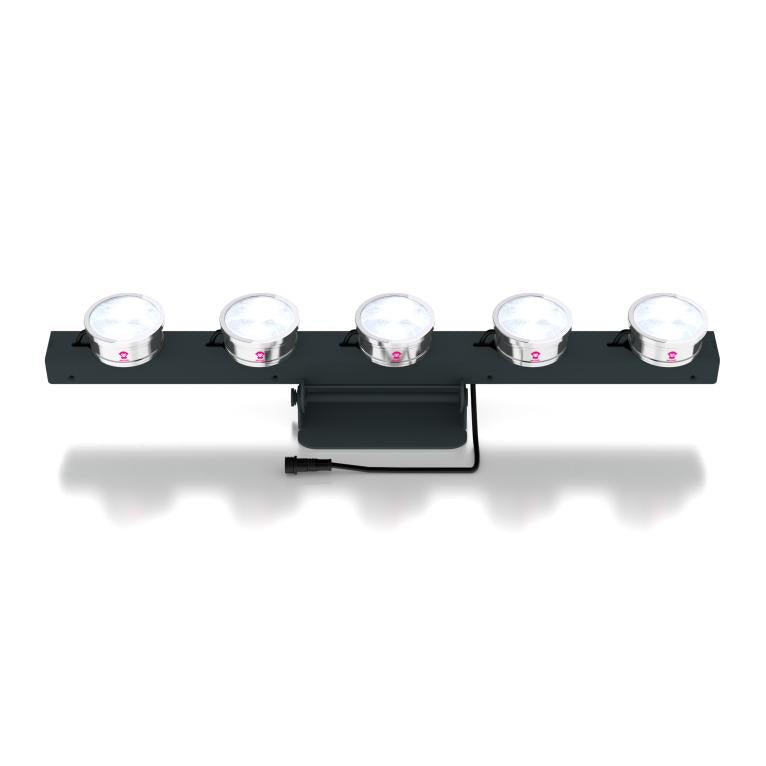

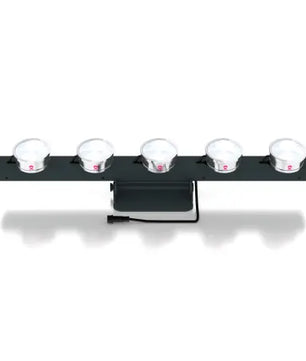

CoinBar XL 2.0 IP65
75 Watts! Quintuple The Possibilities!
Functionality
- 5x Ape Labs Coins Mounted to a Bar

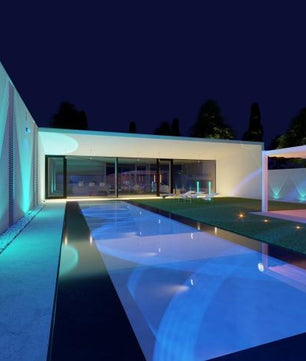

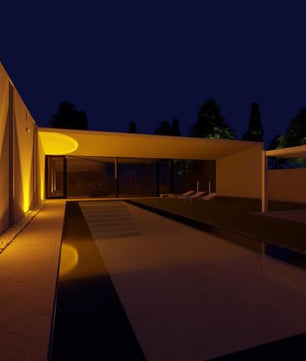

- IP65 Rated for Indoor or Outdoor Installation
- Lightweight and Wirelessly Controllable for Mobile Use
- Ceiling / Wall Mounting Yoke Included
- 5x 15 Watt RGBaW with AmberWhite LED Technology (Now 2.27x Brighter at Same Wattage)
- Standard with Fresnel Effect Lens. Available 5° PinSpot & Par Wash Optics: 10°, 15°, 25°, & 45°
- Solid State, Fanless operation

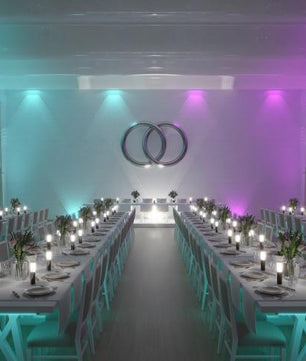

- 29 carefully curated color presets designed for weddings & events
- PWM (LED refresh rate) adjustable via smartphone app (500Hz to 4000Hz)
- Compatible with smartphone app via Connect hardware
- 100% Designed, Engineered, & Hand Assembled in Germany

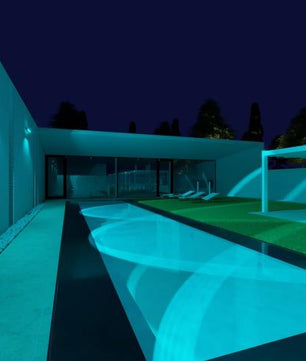

The CoinBar XL 2.0 is Ape Labs's next evolution of the highly acclaimed Ape Labs Coin. Building upon the immense success of its predecessor, Ape Labs has combined five Coins into a single, versatile lighting solution, meticulously designed and engineered to meet the demands of indoor and outdoor applications. With an IP65 rating, the CoinBar 5 opens up a world of possibilities for permanent installations as well as mobile lighting setups, making it a must-have for stage lighting, DJs, wedding venues, and various other events.
Furthermore, all of Can 2.0 and Coin 2.0 accessories will work on some or all of the installed Coins on the CoinBar. So you can mix and match optics and accessories across the fixture.

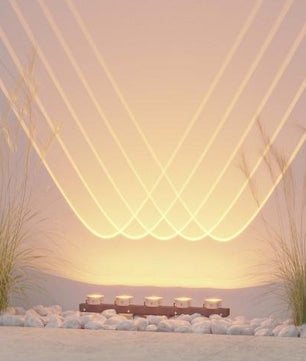

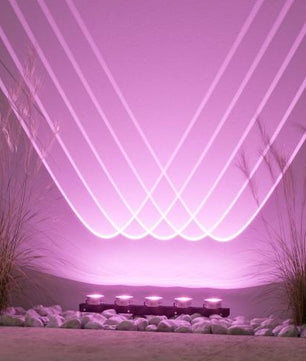

Featuring the same exceptional quality and attention to detail that have made Ape Labs a trusted name in the industry, the CoinBar 5 delivers stunning lighting effects with unmatched reliability. The five Coins mounted on the bar combine to provide a wide and uniform light output, allowing you to create captivating visual displays that enhance any venue or event.
With its intuitive controls and wireless capabilities, the CoinBar 5 offers effortless operation. Using the Ape Labs wireless remote control, you can easily adjust the brightness, color, and effects, unleashing your creativity and tailoring the lighting to suit your specific needs.
Choose the Ape Labs CoinBar 5 and unlock a world of possibilities in lighting design. Embrace innovation, quality, and creativity, and let Ape Labs illuminate your world like never before.
Control / Operation:
Ape Labs is known to "Keep it Simple" when it comes to controlling lights. A beginner with no instructions can typically operate an Ape Labs fixture within seconds of picking up an ApeRemote or opening the app. But its simplicity does not lack in features. Two of the most famous features are "Grouping" and "MusikMode".
Grouping allows the user to create DMX-Like shows on the fly by grouping any number of mixed & matched Ape Labs SKUs on up to four groups. Then being able to control groups individually or universally.
MusikMode will automatically create a music-based light show with the press of a button. It uses proprietary technology that analyzes the sound in the room and total number of Ape Labs fixtures to build a constantly evolving light show. Just don't call it "Sound Active".
- Wireless DMX: 4, 7, or 8 Channel Modes (W-App / Connect required, 3900ft Range)
- Wireless KNX (W-App / Connect required, 3900ft Range)
- Wireless Android / iOS App (W-App / Connect required, 3900ft Range)
- Wireless Remote Control (ApeRemote required, 200ft Range)
- Wireless range increases as more fixtures are added since all lights repeat the signal
- Pairing is possible with ApeRemotes or W-Apps to increase number of groups or universes in the room
- Ape Labs Connect will save settings and programs to the cloud for cross device operations or community sharing
- Free software/firmware updates via W-App or Connect
Coin 2.0 Specs:
- Powered via IP cable
- Made from stainless steel
- wavelength red = 622.5nm
- wavelength green = 522.5nm
- wavelength blue = 457.5nm
- AmberWhite Color Temperature = 2700K
- Color rendering in CRI (Ra) = 90
- PWM (Pulse Width Modulation) = 500Hz - 4000Hz
- flicker free = Yes
- Dimmable = Yes
- Total lamp luminous flux = 545 lm
Size:
- Dimensions L x H x W: 19.7 x 4.5 x 2.4 in
- Weight: 4 lbs
Manual:
[View]
APE LABS BUYING GUIDE
WHAT'S IN THE BOX?
-
"SOLO" means you're only getting the light itself, without the remote or power supply. Wireless control is essential for all Ape Labs products, and an IP65 PSU is required to power the fixture. Therefore, "SOLO" purchases will require additional accessories that are not included in the package to use your light. However, the Ape Labs ApeRemote and/or Connect App can control an unlimited number of Ape Labs SKUs and are compatible with every product on the market. Similarly, the IP65 PSU can power up to 12 CoinBars with the appropriate IP splitter cables. Reusing accessories for multiple lights can reduce investment costs.
-
"SETS" (such as a "Set of 2" or "Set of 4") include the universal remote and enough IP65 power supplies power all of the lights in the listed set.
