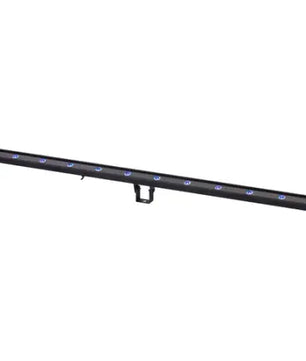

Antari DFX-L1020 DarkFX Strip 1020 UV | 22.8W Blacklight

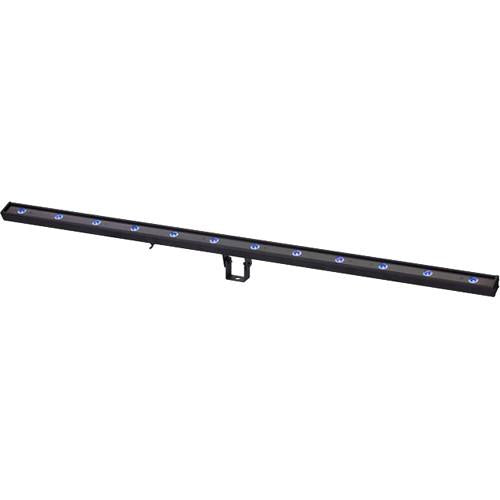

The Elation Professional DarkFX Strip 1020 is a professional high-output UV LED bar, well suited for UV reactive material, art, amusement park displays, and signage with bright and vivid colors. The 12 x 1.9W high-power UV LEDs offer a peak wavelength of 365nm and a radiant flux output of 9000mW at full intensity). The fixture offers a 40° beam angle and is flicker-free for TV and film production. Special optics prevent wear degradation from high-UV exposure.

The IP20-rated (indoor use only) aluminum-extruded housing features an adjustable mounting bracket and comes with a 22 AWG power/data bare-wire-end pigtail cable attached on the back that connects to the Antari DarkFX Drive 4 fixture driver (sold separately) and is required for power and DMX control.

Note:
Product requires the Antari DarkFX Drive 4 fixture driver (sold separately), which provides power and DMX control.

Features:
High-efficiency UV LED bar
40° beam angle
365nm peak wavelength with minimum visible light
9000+mW high-output at full intensity
Special optics to prevent wear degradation from high UV exposure
Flicker-free operation for TV and film

Antari Strip 1020 Specs:
Light Source 12 x 1.9 W High Power UV LEDs
20,000 Hour Average LED Life
Photometrics Optics: 40°
Peak Wavelength: 365 nm
Radiant Flux Output: 9000 mW
Control and Connectors DarkFX Drive 4 II Power/DMX Fixture Driver (Sold Separately)
Cable Connection: Bare-Wire Power/Data Combo Cable
Power Requirements Electrical Input: 20 to 24 VDC
Max Power Consumption: 24 W
Approvals CE
Ratings IP20 Indoor Use Only
Dimensions (L x W x H) 47.0 x 3.0 x 2.5" / 119.4 x 7.6 x 6.4 cm
Weight 5.0 lb / 2.3 kg
