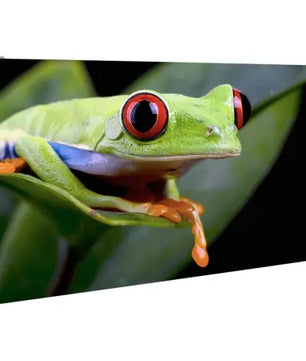

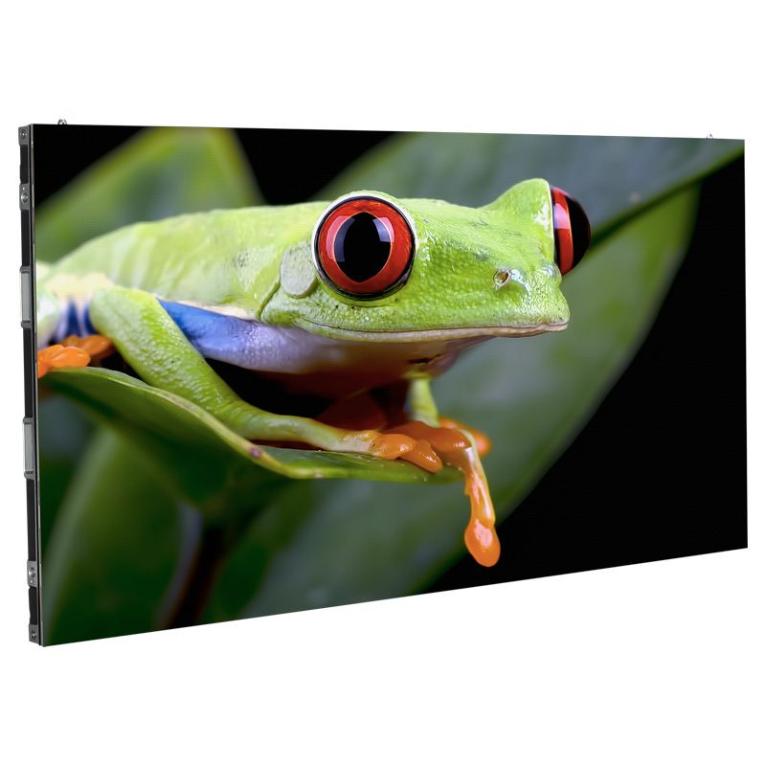

American DJ WMS2 | 2.6mm Pixel Pitch Wall Mount Panel

Immerse yourself in the visual brilliance of the ADJ WMS2 LED Video Panel, a state-of-the-art display solution that sets a new standard in high-resolution technology. Designed for seamless integration across diverse applications, from shop window displays and museums to boardrooms, digital signage, and entertainment venues, the WMS2 stands out as ADJ’s highest resolution offering yet.

Featuring a built-in Novastar A8s-N receiving card, the WMS2 provides the flexibility to be displayed horizontally or vertically when wall-mounted. With an impressive pixel pitch of 2.6mm and a pixel density of 147,456/m2, this video panel ensures exceptional definition even at close viewing distances. The RGB SMD1515 color mixing LEDs deliver a vibrant spectrum, complemented by 800 NITS of brightness.

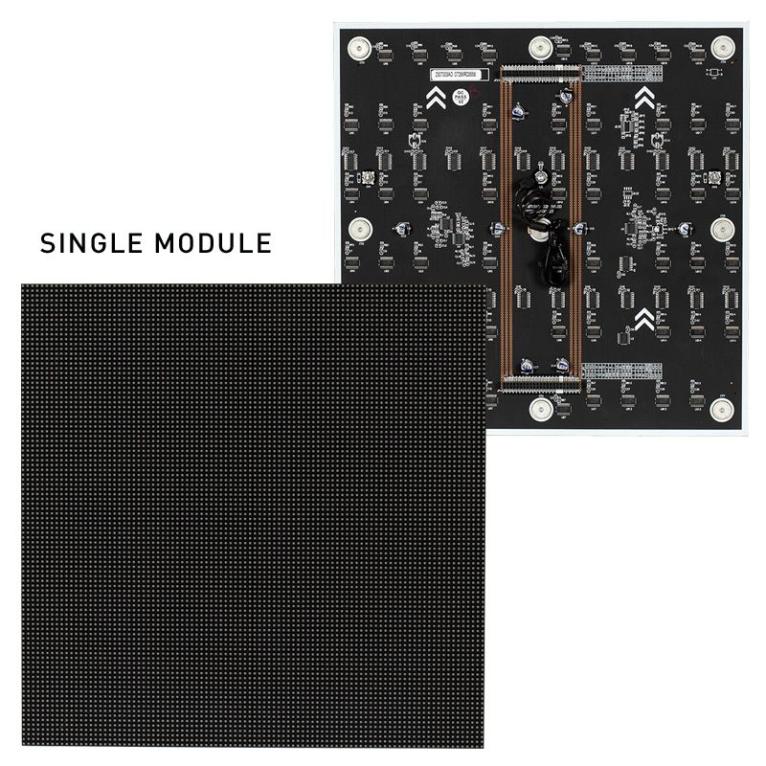

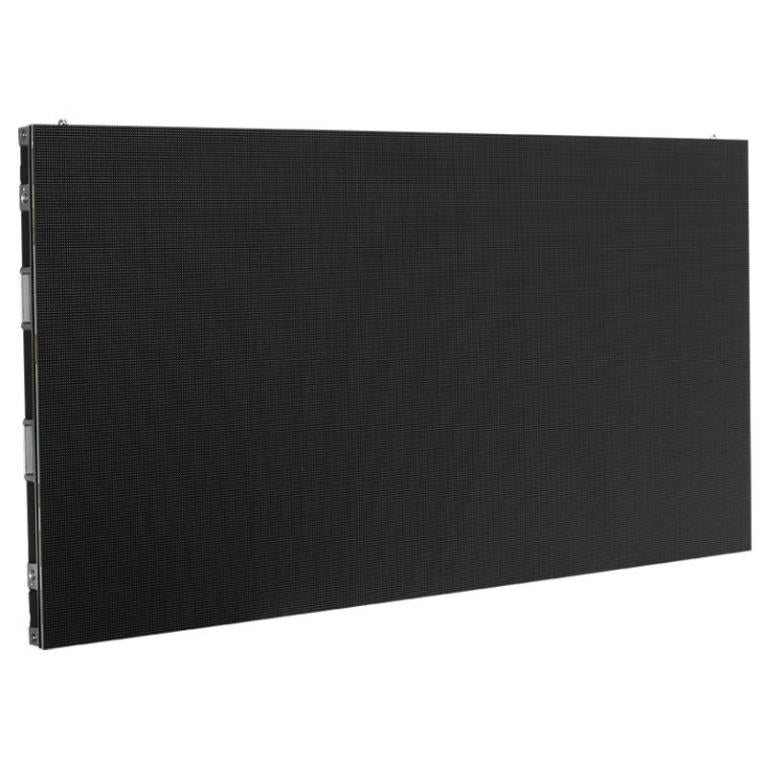

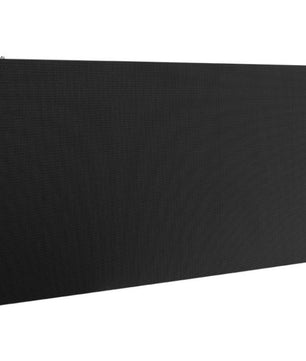

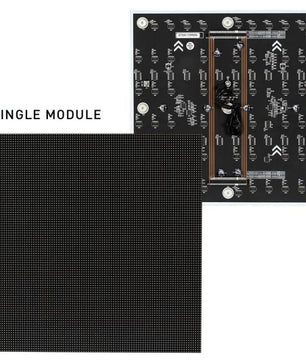

The WMS2 boasts a wide viewing angle of 160-degrees (horizontal) by 140-degrees (vertical) and a rapid refresh rate of 3840Hz, ensuring captivating and smooth visual performance. Measuring 39.3” x 19.9” (1000mm x 500mm), the WMS2 consists of eight individual modules, each with 96 x 96 pixels, providing flexibility in arrangement. The overall resolution can be configured as 384 x 192 pixels (horizontally) or 192 x 384 (vertically).

Ease of installation is prioritized with a secure locking mechanism for seamless joining of adjacent panels, direct wall installation mounting points, and a front-serviceable design for easy module replacement. Slim at 1.3” (33mm) thickness and lightweight at 21 lbs. (9.5 kgs.), the WMS2 offers versatility in wall-mounting, hanging, or stacking, catering to various installation preferences.

FEATURES:

Installation Method: Hang, Stack or Wall Mount
Maintenance: Front Service
Configuration*: Horizontal (wall mount, ground stack or hang); Vertical (wall mount only)

SPECIFICATIONS:

Specifications:
Pixel Pitch (mm): 2.6mm
Pixel Density (dot/m2): 147,456
LED sealing Type: SMD1515 Kinglight Cooper
Module Size (mm x mm): 250 x 250
Module Resolution (PX x PX): 96 x 96
Panel Resolution (PX x PX): 384 x 192 pixels (horizontally) or 192 x 384 (vertically).
Average Life (Hours): 50000H
Optical Ratings:
Brightness (cd/m2): 800 NITS
Horizontal Viewing Angle (Deg): 160°
Vertical Viewing Angle (Deg): 140°
Grey Scale (Bit): ≥14, CFD435
Refresh Rate (Hz): 3840Hz
Power Supply
Input Voltage (V): 100-240VAC
Max Power Dissipation (W/m²): 350
Average Power consumption (W/m²): 140
Control System
Receiving Card: Novastar A8s-N
Environmental
Working Environment: Indoor
Waterproof Level: IP20
Working Temperature (℃): -20 ~ +40, (°F) -4 ~ 104
Work humidity (RH): 10%~90%
Storage temperature range: (℃) -40 ~ +80, (°F) -40 ~ 176
Operation humidity (RH): 10%~90%
Weight / Dimensions
Cabinet Size (mm x mm): 39.3" x 19.6" / 1000 x 500mm
Cabinet Weight: 21 lbs. / 9.5Kg
Cabinet Thickness (mm): 33mm
Approvals
Certificates: ETL
Accessories
WMSHDC (WMS132) - Horizontal Data Cable for WMS Panel Series
WMSHPC (WMS106) - Horizontal Power Cable for WMS Panel Series
WMSMAT (WMS080) - WMS2 Magnet Adjustment Tool
WMSMDC32 (WMS158) - 32-foot, MainData Cable for WMS Panel Series
WMSMPC16 (WMS145) - 16.4-foot, Main Power Input Cable for WMS Panel Series
WMSRB1 (WMS015) - Free Hang, 1-Meter Rigging Bar
WMST2X2 (WMS041) - Frame Trim for 2x2 WMS Video Wall
WMST3X3 (WMS054) - Frame Trim for 3x3 WMS Video Wall
WMST4X4 (WMS067) - Frame Trim for 4x4 WMS Video Wall
WMSVDC (WMS119) - Vertical Data Cable for WMS Panel Series
WMSVPC (WMS093) - Vertical Power Cable for WMS Panel Series
WMSWB1 (WMS028) - 1-Meter, Wall Mount Bracket
Optional Accessories
EVSVAC (EVSVAC) - Vacuum Tool to Remove Modules
