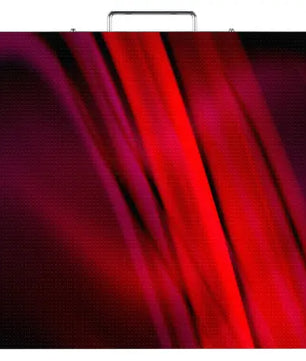

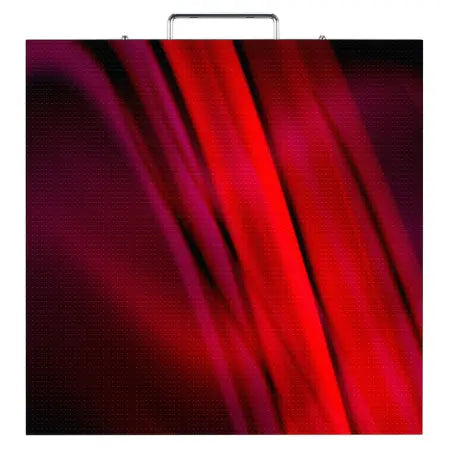

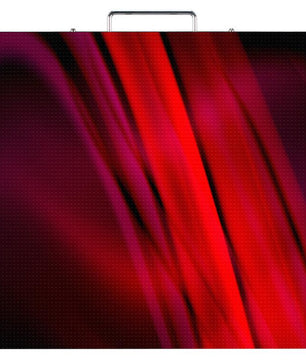

American DJ VS5

$980.00

Order in the next [hour] to get it between [date_start] and [date_end]

Quantity

Call For More Details

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

ADJ’s Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

The VS5 is a high-resolution video panel with a pixel pitch of 5.95mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS5 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS5 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.

ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

SPECIFICATIONS:
• Pixel Pitch: 5.95mm (0.23”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 84x84; 28224 per square meter
• Size :19.68” x 19.68” x 2.75” / 500 x 500 x 69.6mm
• Module Quantity: 4
• Weight: 17 lbs. / 7.7kg.

FEATURES:
• Corner Protectors to protect the corners of the VS3 during transport, set-up and teardown
• Front and rear serviceable: 4 easy to replace video modules on each panel
• Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall

MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm

OPTICAL RATINGS:
• Brightness: 1000 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit

POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 68W/per panel
• Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out

CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/16
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: cETLus (Pending)

OPTIONAL ACCESSORIES:
• VSFC8 (VS8100): Flight Case – Fits 8 VS Series Video Panels
• VSRB1 (VS1100): Rigging Bar – Hang up to 20 VS Series Video Panels vertically
• VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing.
• VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss

• Novastar VX4S: Video Processor
• Novastar MCTRL-300: Video Processor
• Novastar Nova Pro HD: Video Processor
• Arkaos Media Master: Video Software
• Arkaos GrandVJ 2.0: Video Software

CABLES:
• Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
• Power Locking Link Cables
• Power Locking Main Power Cables
