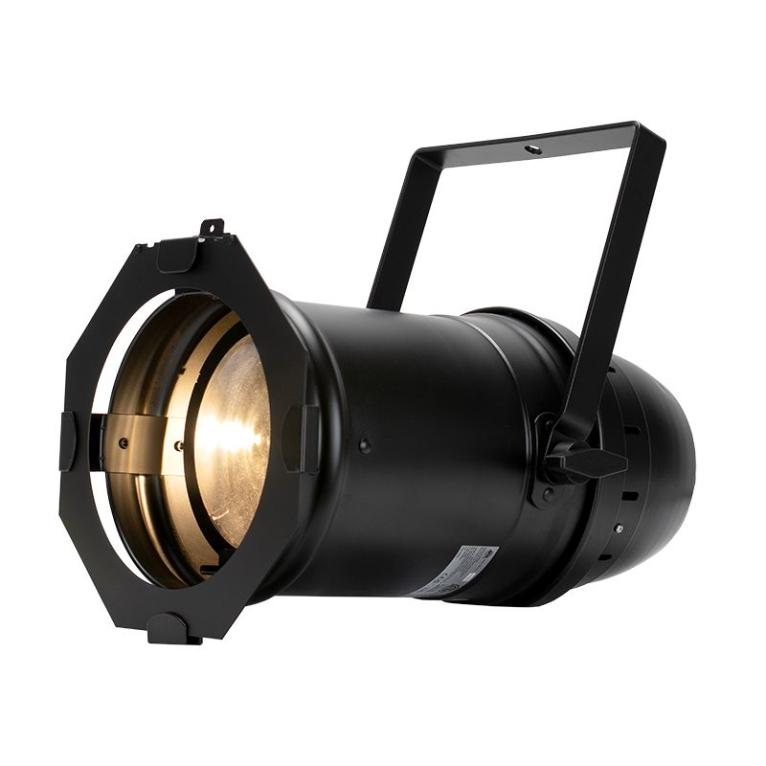

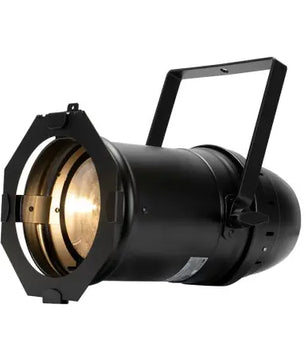

American DJ Par Z100 3K2 | 100 Watt COB LED

The Par Z100 3K2 combines the aesthetic appeal of a traditional stage par can with the contemporary advantages of LED technology. It runs on a 100-Watt, 3000K Warm White C.O.B. LED engine boasting a CRI exceeding 90. With 5 manually adjustable zoom beam angles, along with DMX In/Out and locking power In/Out, the fixture facilitates the seamless connection of multiple units for permanent or temporary use.

FEATURES:

4-button DMX menu display on rear panel
OLED display
Adjustable latch to manually change beam angle
Includes gel frame for diffusion filters (Diffusion filter sold separately)
Strobe Rate: 0.6Hz to 7.5Hz
Refresh Rate: 1.2KHz
Electronic Dimming: 0 - 100%
6 Dim Modes

SPECIFICATIONS:

Optical:
100-Watt, 3000K Warm White C.O.B. LED (Chip On Board)
Life expectancy: rated at 50,000 hrs.
Manual Zoom: 9°, 15°, 20°, 25° or 30°
Zoom Ration: 3.3:1

Photometrics:
5885 Lux (Zoomed In to 9° @ 5 meters)
767 Lux (Zoomed Out to 25° @ 5 meters)
CRI: >90

Connection:
DMX: 5-pin DMX In/Out
With Wired Digital Communication Network
Locking power In/Out connections

Control:
DMX-512
3 DMX control modes: (1, 3 & 4 Ch. modes)
RDM and RDM Net Compatible
Primary/Secondary, stand-alone mode
On-board manual control mode

Electrical:
Power Draw Total (@ Full On): 115W
Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
Multi-voltage operation: AC 100-240V, 50/60Hz
Daisy chain: 15 fixtures @ 120V; 25 fixtures @ 230V
Fuse protected: 3A/250V

Ambient Temperature Range (For Use):
-4° ~ 113°F (-20°C ~ 45°C)

Storage Temperature Range:
-22° ~ 113°F (-30°C ~ 45°C)

Dimensions / Weight:
Dimensions (LxWxH): 19.25” x 10.94” x 10.68” / 489 x 277.7 x 271.1mm
Weight: 7.94lbs. / 3.6kg.

IP Rating / Approvals:
IP20
CE & FCC
ETL Approved (4002034)
