IP65 Outdoor-Rated RGBL Moving Head Wash with Pixel Control

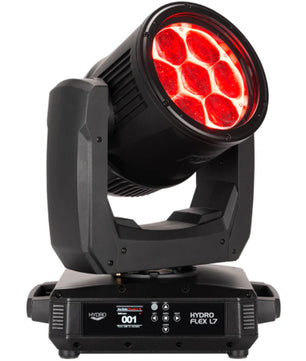

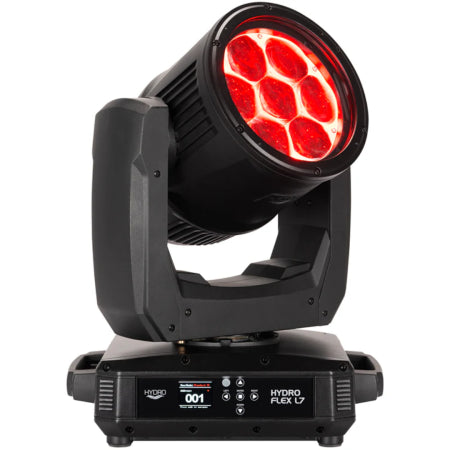

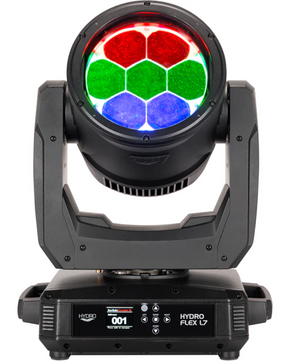

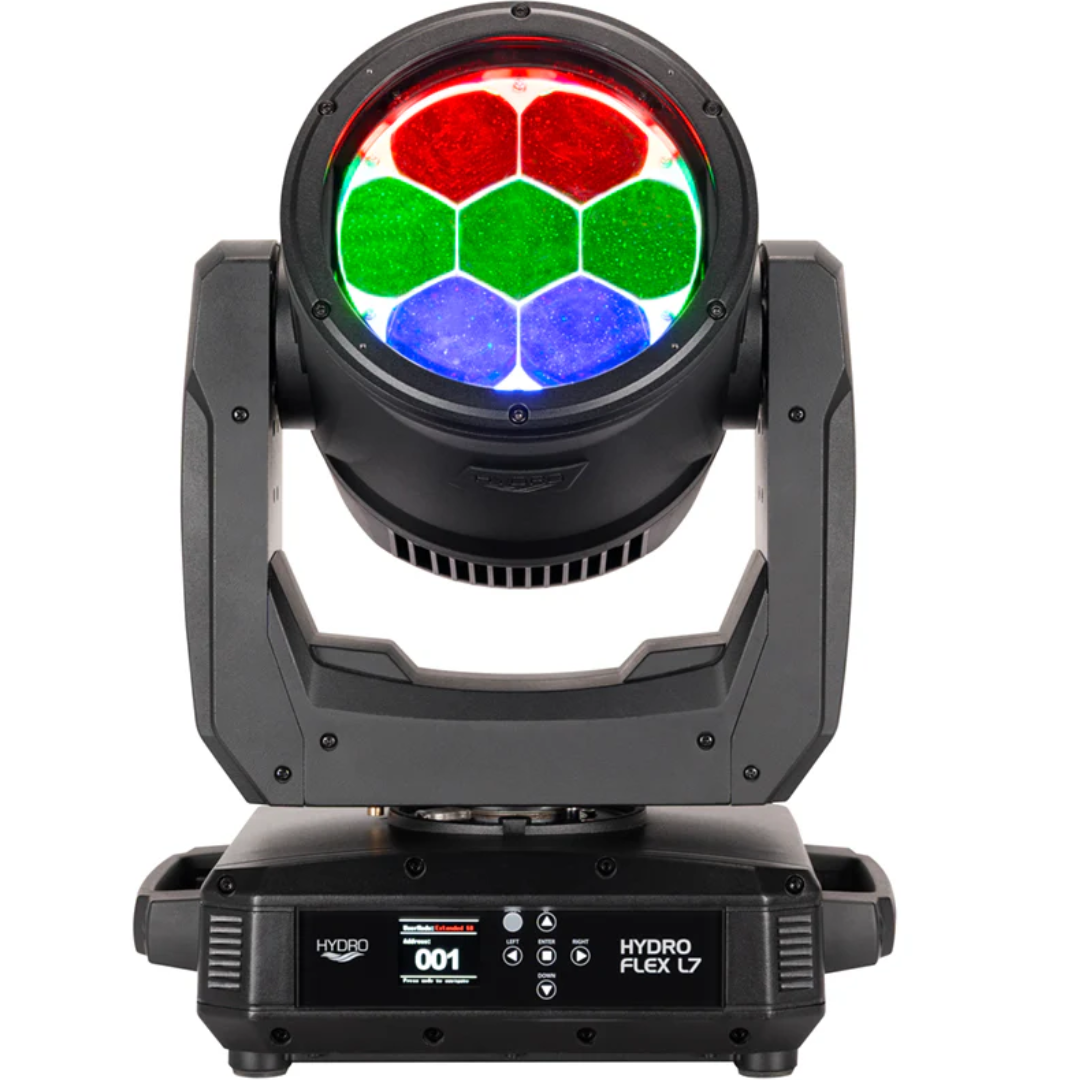

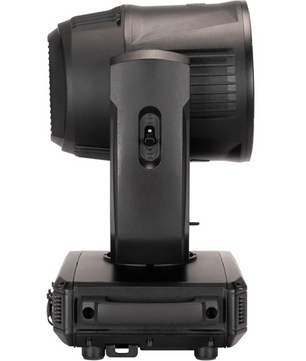

The American DJ Hydro Flex L7 is a 420W professional moving head wash fixture designed for touring, festivals, and large-scale productions. Powered by seven 60W RGBL LEDs, it delivers 5,600 lumens of vibrant output with individual pixel control, linear white color temperature adjustment (2,700K–10,000K), and a motorized zoom ranging from 6° to 54°. Its rugged IP65-rated housing makes it equally reliable for indoor and outdoor environments.
American DJ Hydro Flex L7 Competitive Differences
- 7x 60W RGBL LEDs with 50,000-hour rated lifespan
- 5,600-lumen output with color calibration across units

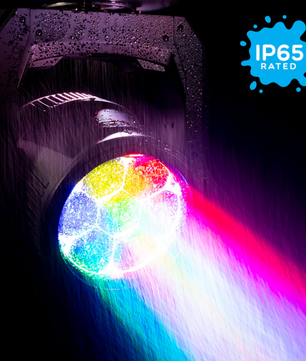

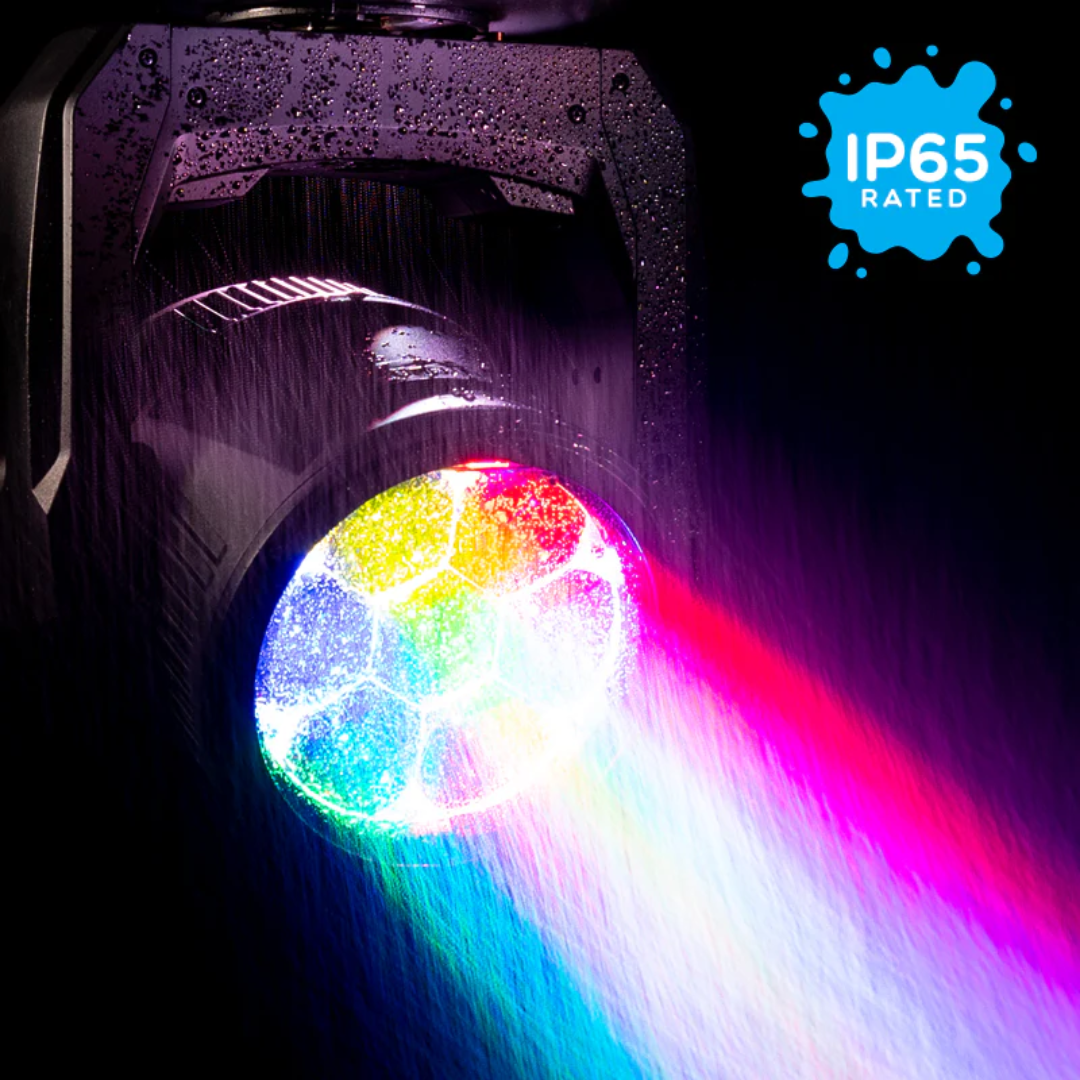

- IP65-rated construction protects against dust, sand, and moisture
- Motorized zoom: 6°–54° (beam 4°–38°, field 6°–54°)
- Individual pixel control with built-in pixel effects
- Virtual CMY, foreground/background color wheels, and macros
- Wide color temperature control: 2,700K–10,000K (with presets)
- Aria X2 wireless management system with OTA updates
- Supports DMX, ArtNet, sACN, KlingNet, and RDM protocols
- Selectable LED refresh rates (900Hz–25kHz) and dimming curves
American DJ Hydro Flex L7 Description
The Hydro Flex L7 is engineered for lighting professionals who need powerful wash lighting with advanced control. Its seven 60W RGBL LEDs provide bright, consistent performance with smooth dimming and precise pixel mapping. With built-in color macros, virtual CMY control, and linear white temperature tuning, it adapts seamlessly to creative stage designs, live events, and broadcast environments.

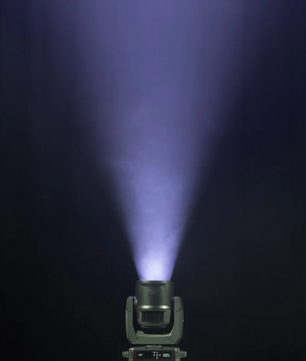

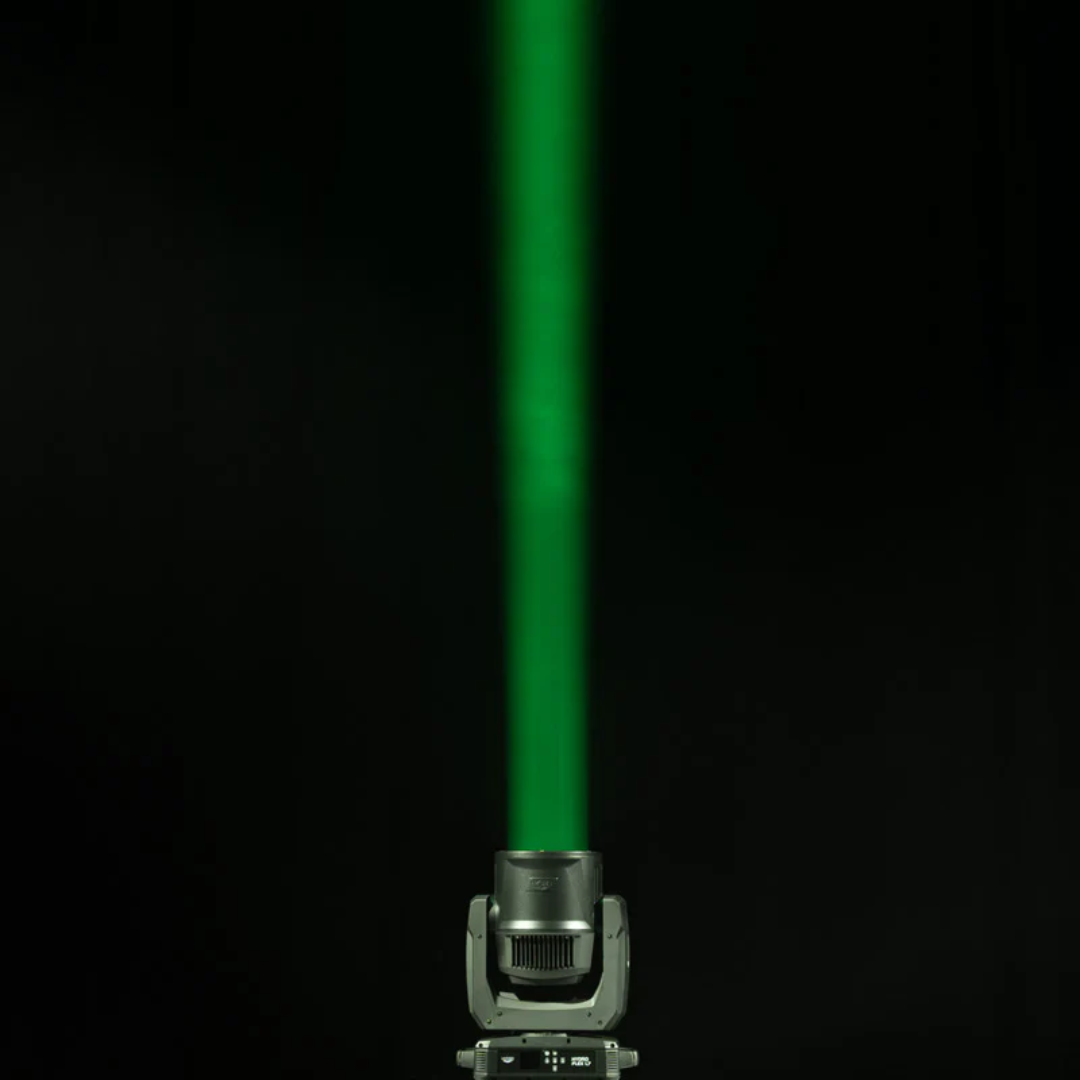

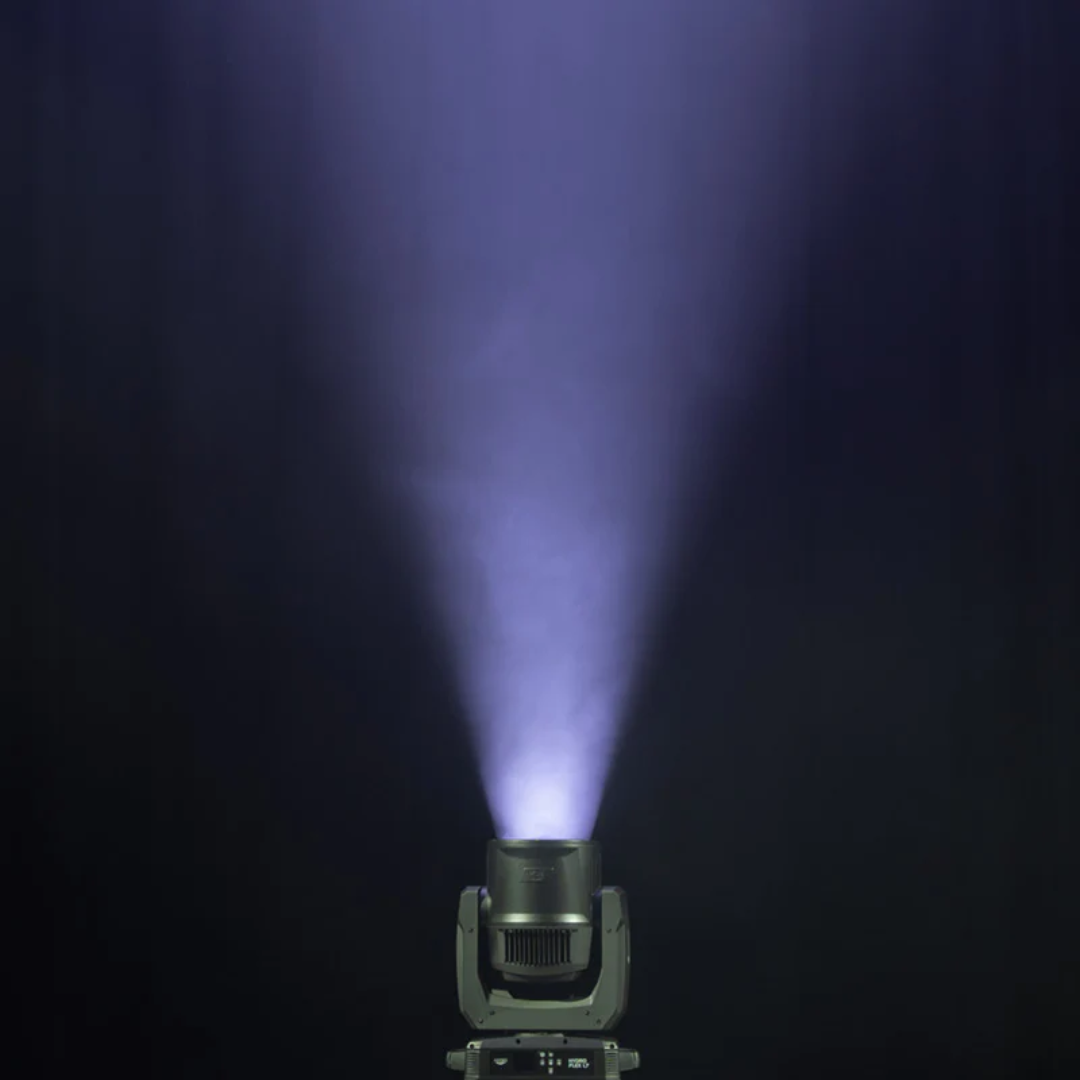

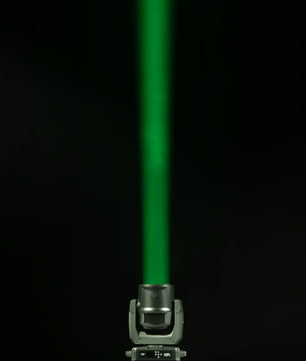

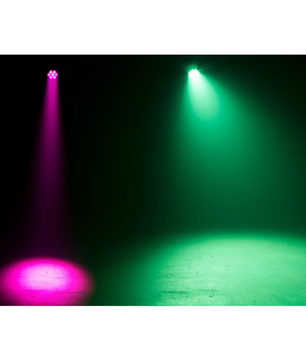

This fixture’s motorized zoom (6°–54°) allows flexible beam shaping from tight shafts of light to wide washes. Its rugged IP65 housing is built to withstand outdoor conditions, including dust, sand, rain, and humidity, making it a dependable choice for festivals and open-air venues. Advanced strobe effects, selectable dimming modes, and color calibration ensure professional-grade consistency across multiple fixtures.
Connectivity is equally versatile, with support for DMX512, ArtNet, sACN, KlingNet, and RDM. The integrated Aria X2 wireless management system provides remote access and firmware updates, streamlining setup and operation. The fixture is completed with pan/tilt locks, IP65-rated connections, and a fan-cooled design for reliable long-term use.
Hydro Flex L7 Features
- Moving head pixel wash with 7x 60W RGBL LEDs
- Individual pixel control with effect programs
- 5,600-lumen total output
- Color calibration across fixture batches
- Motorized zoom: 6°–54° (beam: 4°–38°, field: 6°–54°)

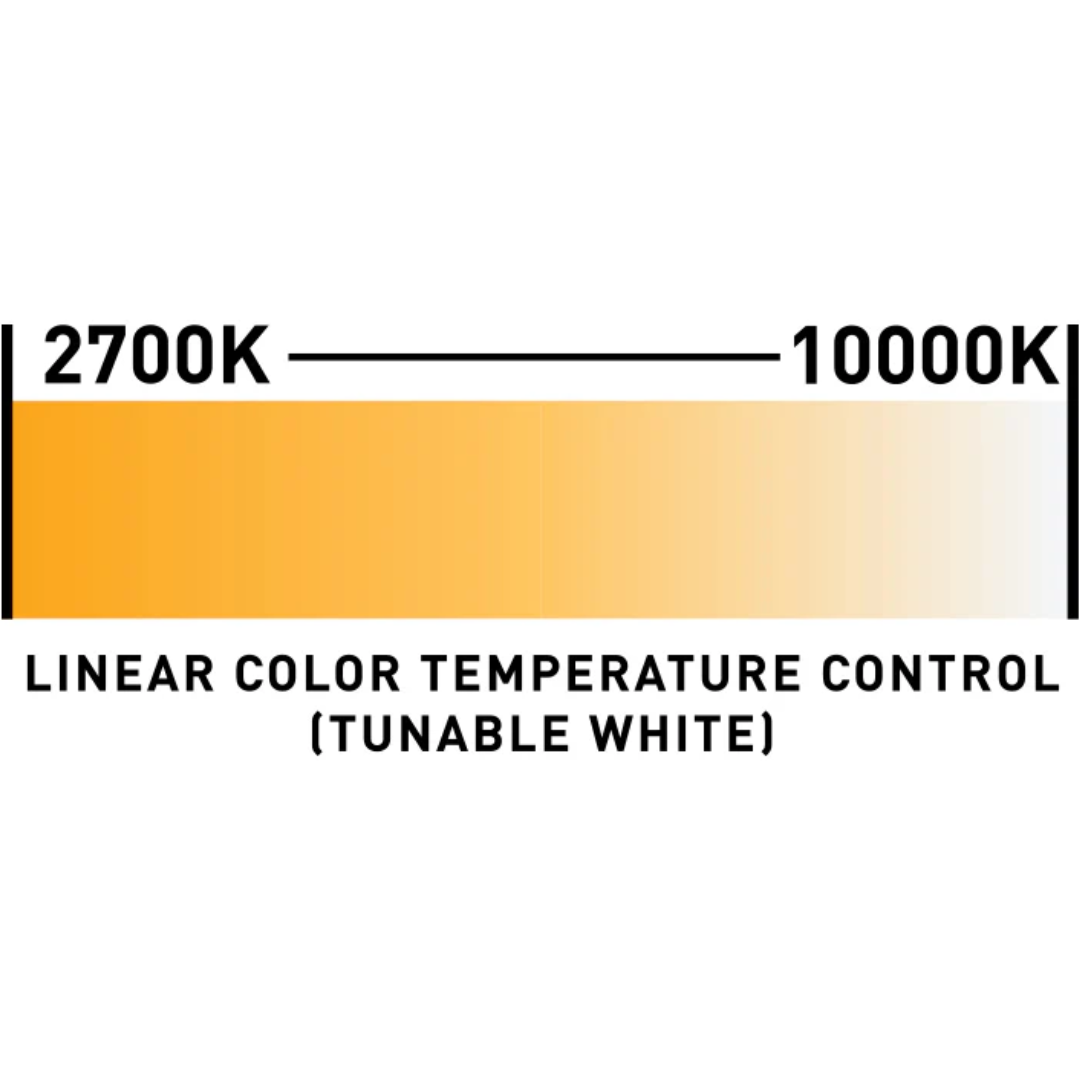

- Linear white temperature control: 2,700K–10,000K with presets
- Virtual CMY DMX control and virtual color wheel
- Built-in strobe, macros, and pixel effects
- Selectable refresh rates: 900Hz–25kHz
- Selectable dim modes and curves for stage, TV, and theatre
- Pan: 540°/630°, Tilt: 243° with fine 16-bit control
- Aria X2 wireless management system
- DMX, ArtNet, sACN, KlingNet, and RDM control
Hydro Flex L7 Specifications
- LED Source: 7x 60W RGBL LEDs (50,000 hrs)
- CRI: 82
- TM30 Rf: 74.7 | TM30 Rg: 116.4
- Output: 5,600 lumens (zoomed out, full on)
- Color Temperature: 2,700K–10,000K (with presets)
- Beam Angle: 4°–38°
- Field Angle: 6°–54°

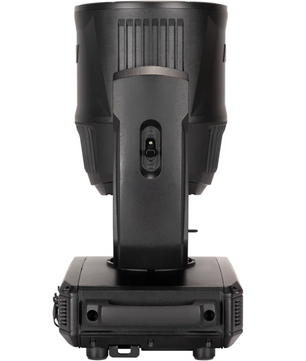

- Pan/Tilt: 540°/630° x 243°, with pan/tilt locks
- Dimming: 0–100%, 4 selectable curves
- Control Protocols: DMX512, ArtNet, sACN, KlingNet, Aria X2 wireless, RDM
- DMX Channel Modes: 16/25/34/42/50/26/25(CMY)/28(CMY)
- Display: Color LCD with 6-button menu
- Connections: IP65 locking power, 5-pin DMX, RJ45 network
- Electrical: 100–240V, 50/60Hz, max 530W @120V, 516W @220V

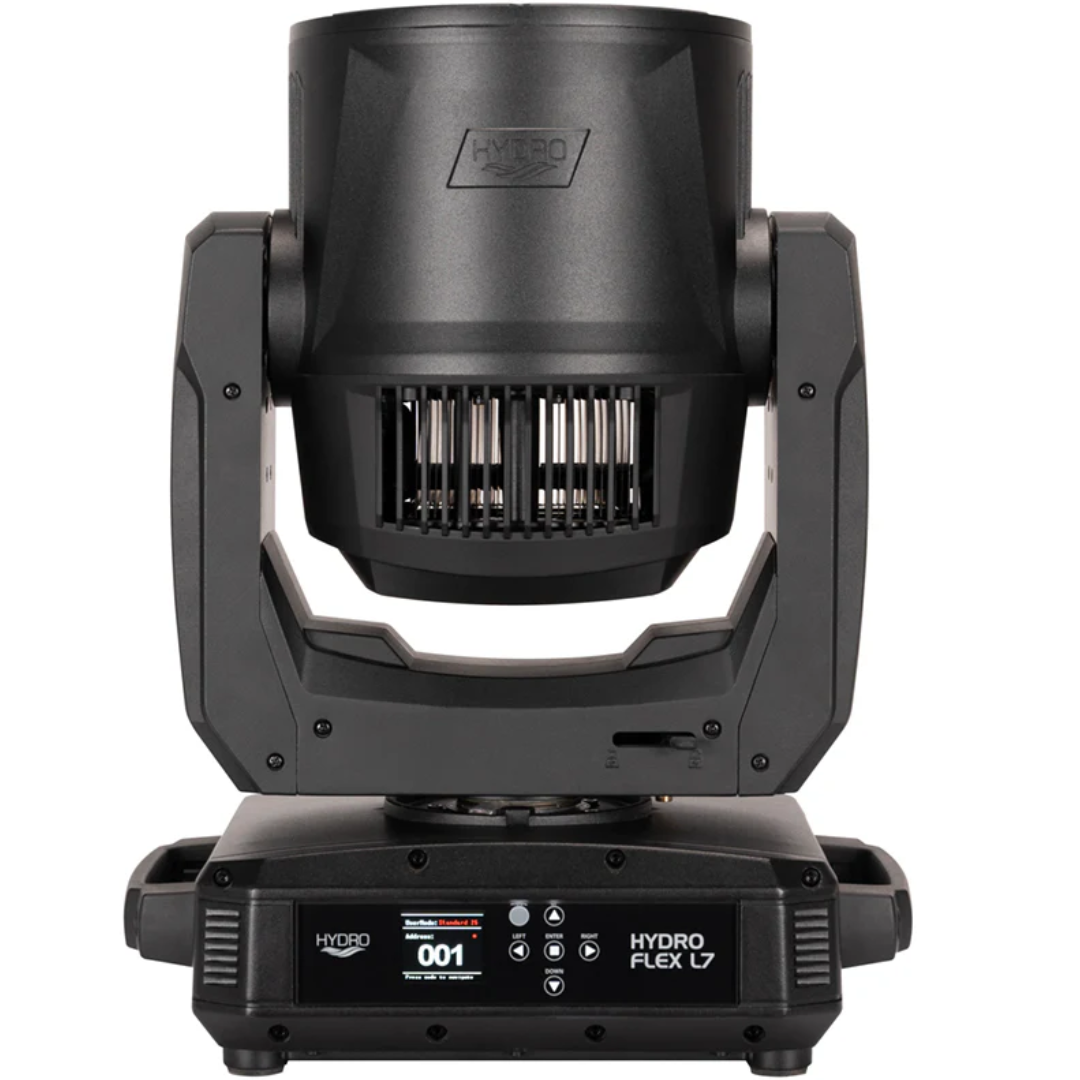

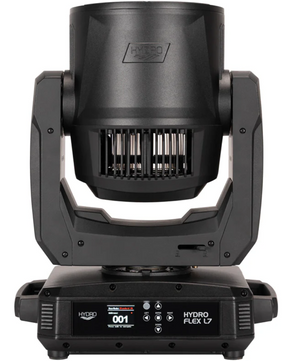

- Cooling: Fan cooled
- Housing: IP65-rated metal construction
- Dimensions (L x W x H): 9.73" x 14.14" x 18.23" (247 x 359 x 463mm)
- Weight: 35.3 lbs. (16 kg)
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
- Certifications: cETLus (Control # 4010765), CE, FCC, UKCA
- UPC: 810087373795
What's In The Box
- (1) American DJ Hydro Flex L7 Fixture
- (2) 107mm Omega Brackets
- (1) 1.83m IP65 locking power cable
- (1) Safety Cable
