High-Power IP65 RGBL Moving Head Wash with Pixel Control

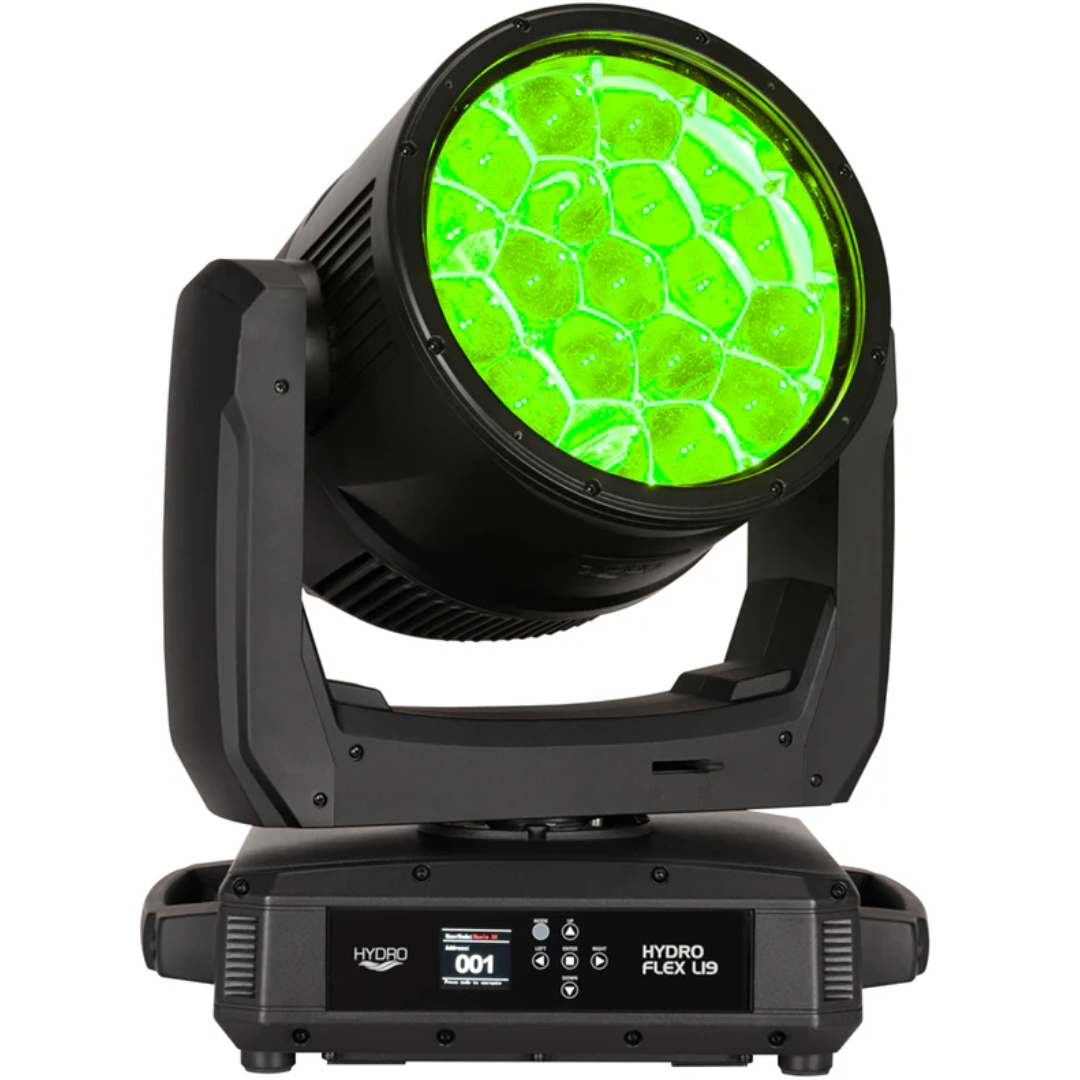

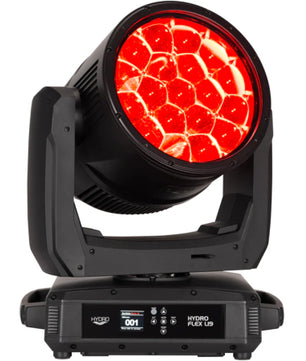

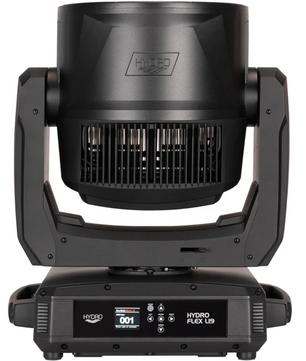

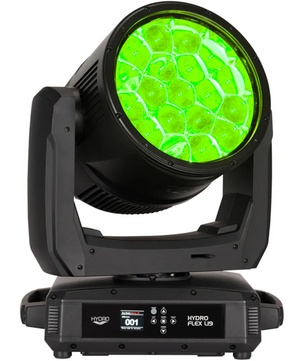

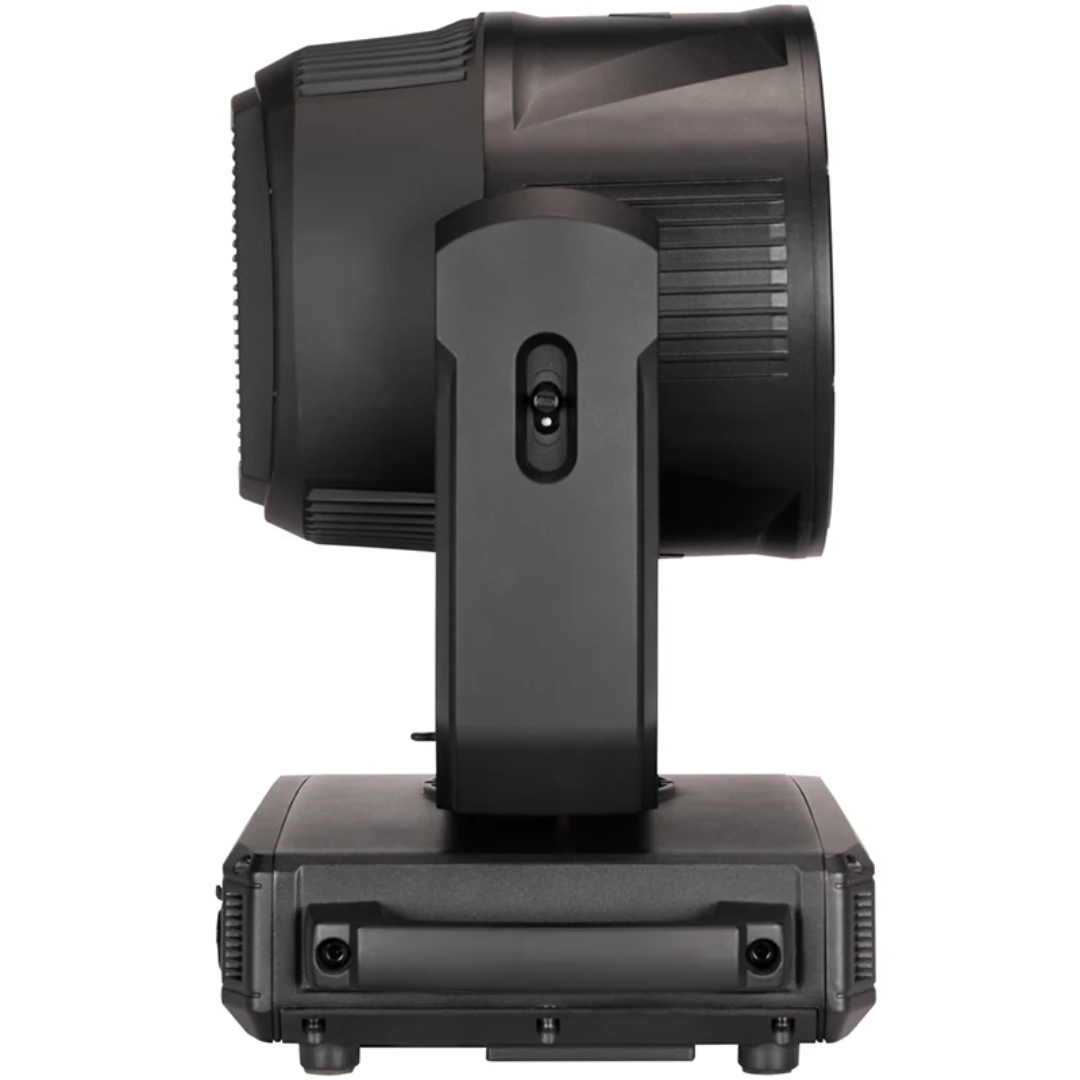

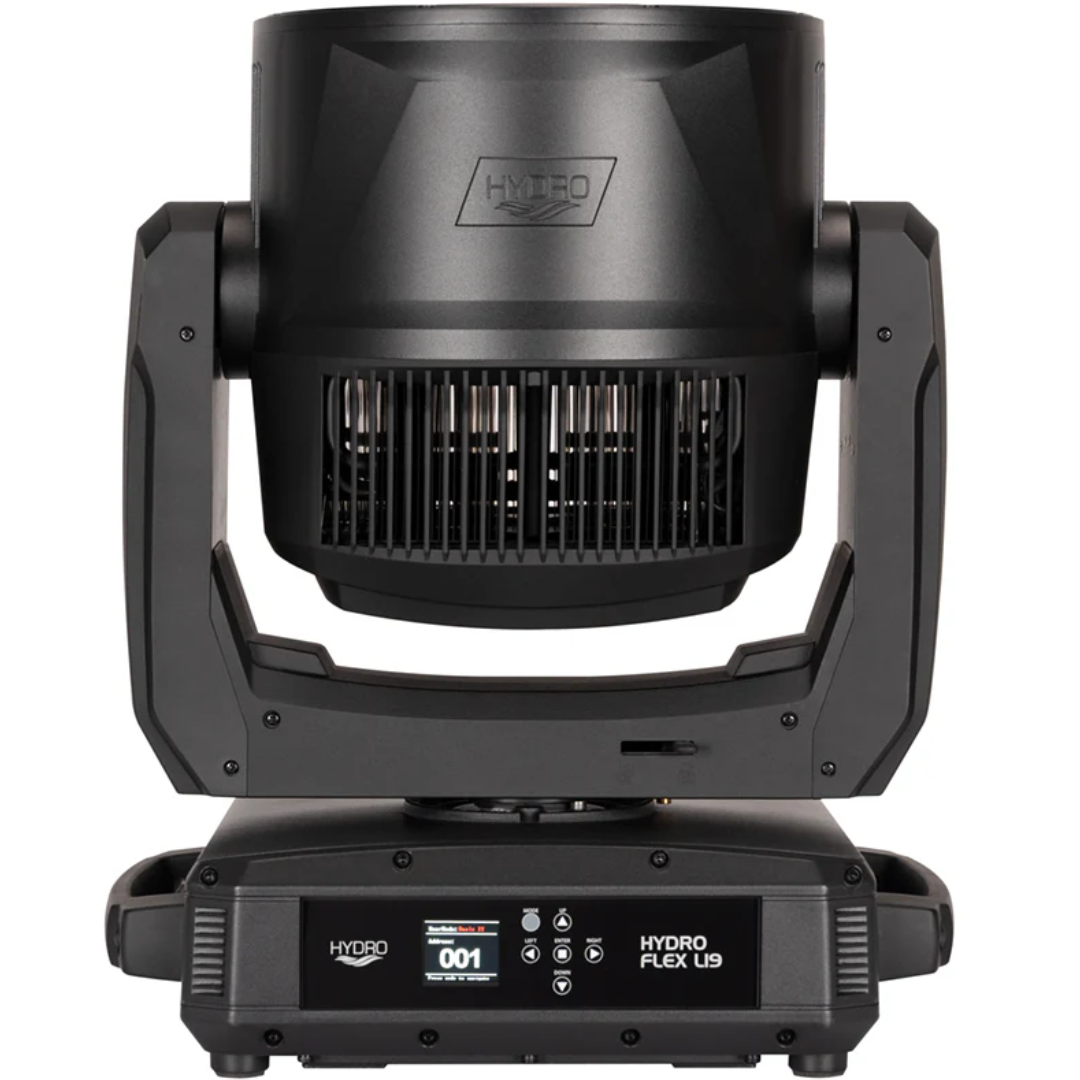

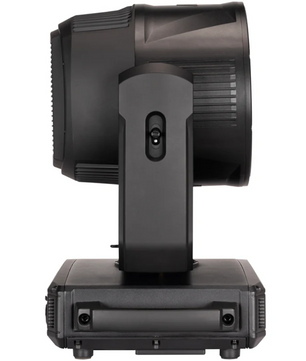

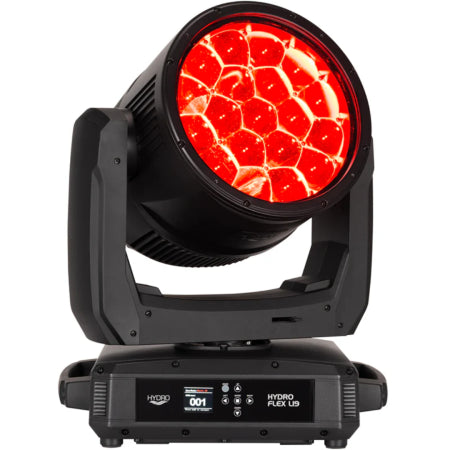

The American DJ Hydro Flex L19 is a 1,140W professional moving head wash fixture designed for festivals, concerts, and large-scale productions. Featuring nineteen 60W RGBL LEDs, it produces up to 17,000 lumens of output with precise pixel control, linear white CCT adjustment (2,700K–10,000K), and a motorized zoom. Its IP65-rated housing makes it a reliable solution for both indoor and outdoor environments where durability and high performance are essential.
American DJ Hydro Flex L19 Competitive Differences
- 19x 60W RGBL LEDs with 50,000-hour rated lifespan
- Massive 17,000-lumen output with calibrated color consistency
- IP65-rated rugged housing for outdoor use
- Motorized zoom: 8°–56° (beam: 5°–38°, field: 8°–56°)
- Individual pixel control with built-in pixel effect programs
- Virtual CMY DMX control and virtual color wheel
- Wide linear white color temperature control (2,700K–10,000K with presets)
- Aria X2 wireless management system with over-the-air updates
- DMX, ArtNet, sACN, KlingNet, and RDM compatibility
- Selectable LED refresh rates (900Hz–25kHz) and multiple dimming curves
American DJ Hydro Flex L19 Description
The Hydro Flex L19 is built for lighting professionals who demand power, precision, and reliability. Its nineteen 60W RGBL LEDs provide extraordinary brightness with finely tuned color calibration for consistent results across multiple units. With a motorized zoom range of 8°–56°, this fixture transitions seamlessly between tight beams and wide washes, making it an adaptable choice for diverse stage designs.
Advanced features include virtual CMY mixing, built-in macros, and linear white color control with presets from 2,700K to 10,000K. Pixel mapping capabilities with effect programs add creative flexibility, while smooth 0–100% dimming and selectable dimming curves provide refined control for different applications including stage, TV, and theatre.
Its IP65-rated housing offers protection against dust, sand, moisture, and liquids, ensuring reliable operation in outdoor environments. The integrated Aria X2 wireless management system enables remote configuration and firmware updates, streamlining production workflows. With support for DMX512, ArtNet, sACN, KlingNet, and RDM, the Hydro Flex L19 is a powerhouse wash light ready for demanding professional use.
Hydro Flex L19 Features
- Moving head pixel wash with 19x 60W RGBL LEDs
- 17,000-lumen total output
- Individual pixel control with built-in pixel effect programs
- Motorized zoom: 8°–56° (beam: 5°–38°, field: 8°–56°)

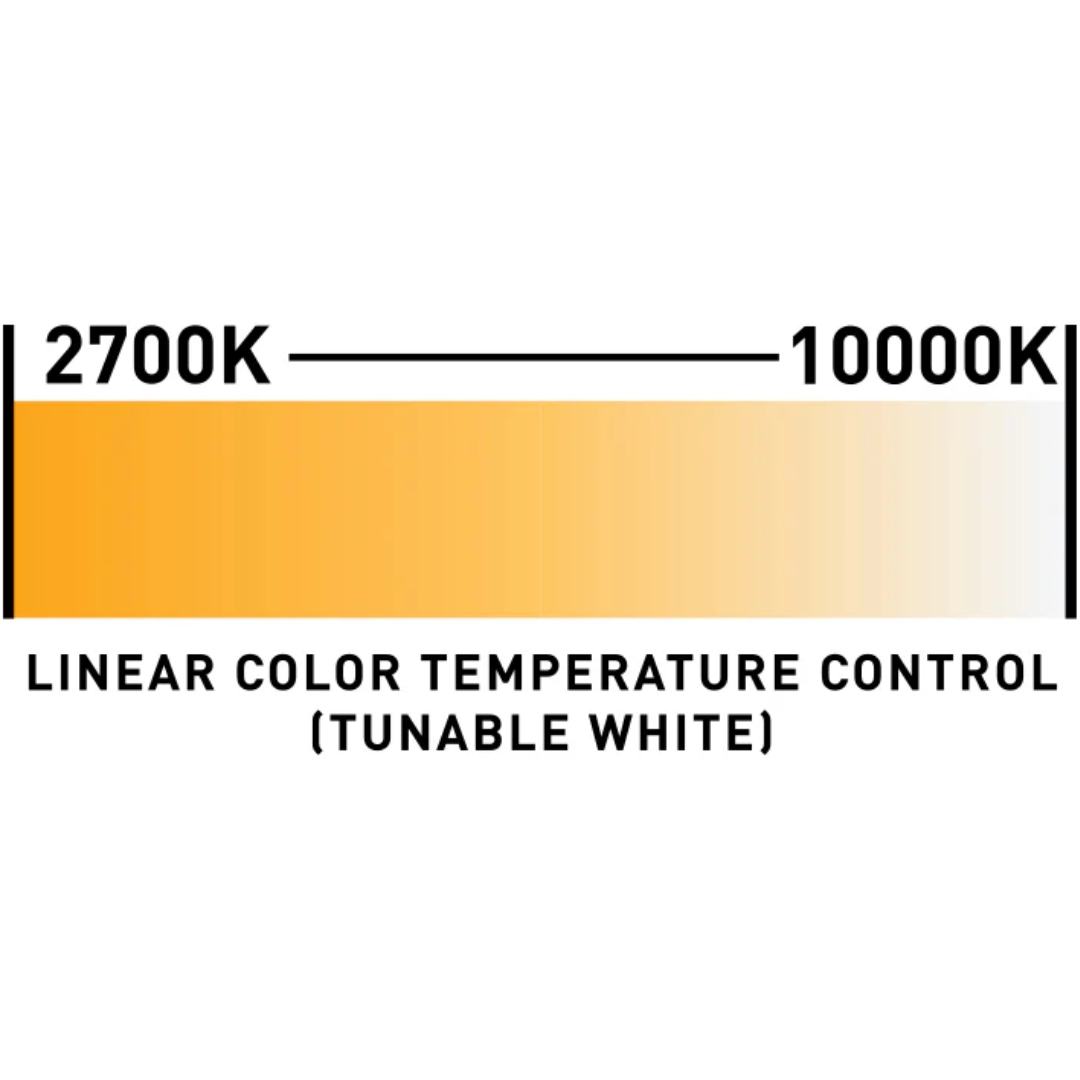

- Linear white CCT control: 2,700K–10,000K with presets
- Virtual CMY DMX control modes and virtual color wheel
- Built-in color macros and calibrated pixels
- Electronic strobe and smooth 0–100% dimming
- Selectable LED refresh rates: 900Hz–25kHz
- Selectable dimming modes and 4 dim curves (Square, Linear, Inv. Square, S-Curve)
- Pan: 540°/630°, Tilt: 243° with 16-bit fine control

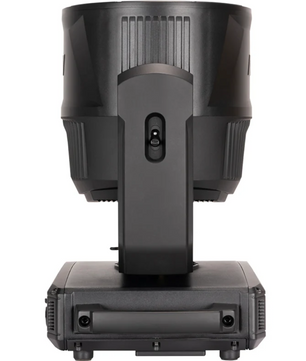

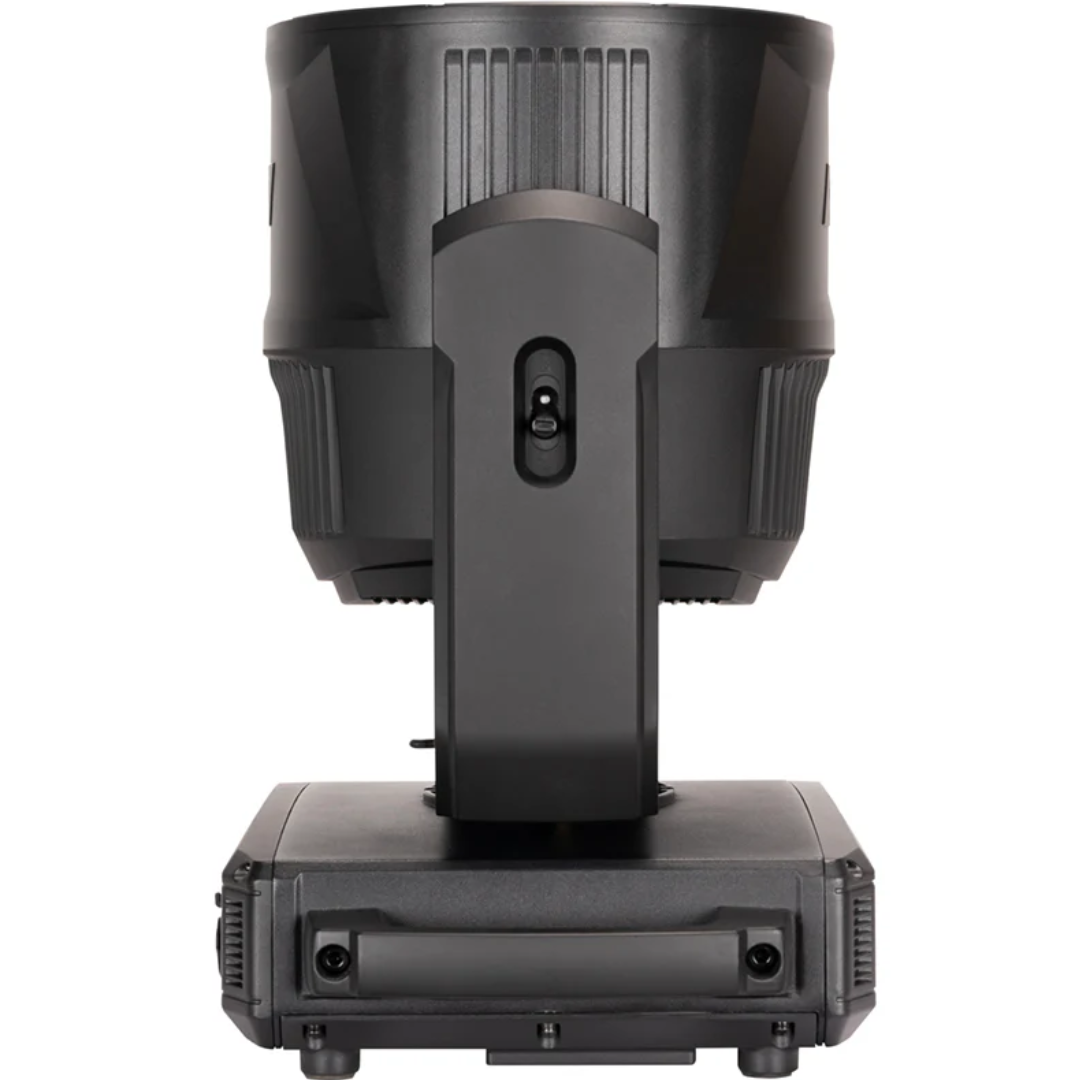

- Pan/Tilt locks for secure handling
- Aria X2 wireless management system with OTA updates
- DMX512, ArtNet, sACN, KlingNet, and RDM protocols
Hydro Flex L19 Specifications
- LED Source: 19x 60W RGBL LEDs (50,000 hrs)
- CRI: 84.2
- TM30 Rf: 71.1 | TM30 Rg: 119.8
- Output: 17,000 lumens (zoomed out, full on)
- Lux: 54,400 @ 5m (4.3° beam); 2,090 @ 5m (28.3° beam)
- Color Temperature: 2,700K–10,000K with presets
- Beam Angle: 5°–38°
- Field Angle: 8°–56°
- Pan/Tilt: 540°/630° x 243°, 16-bit resolution
- Dimming: 0–100% with 4 curves
- Control Protocols: DMX512, ArtNet, sACN, KlingNet, Aria X2 wireless, RDM
- DMX Modes: 22, 31, 40, 104, Standard CMY 31, Extended CMY 34 channels
- Display: Color LCD with 6-button function menu

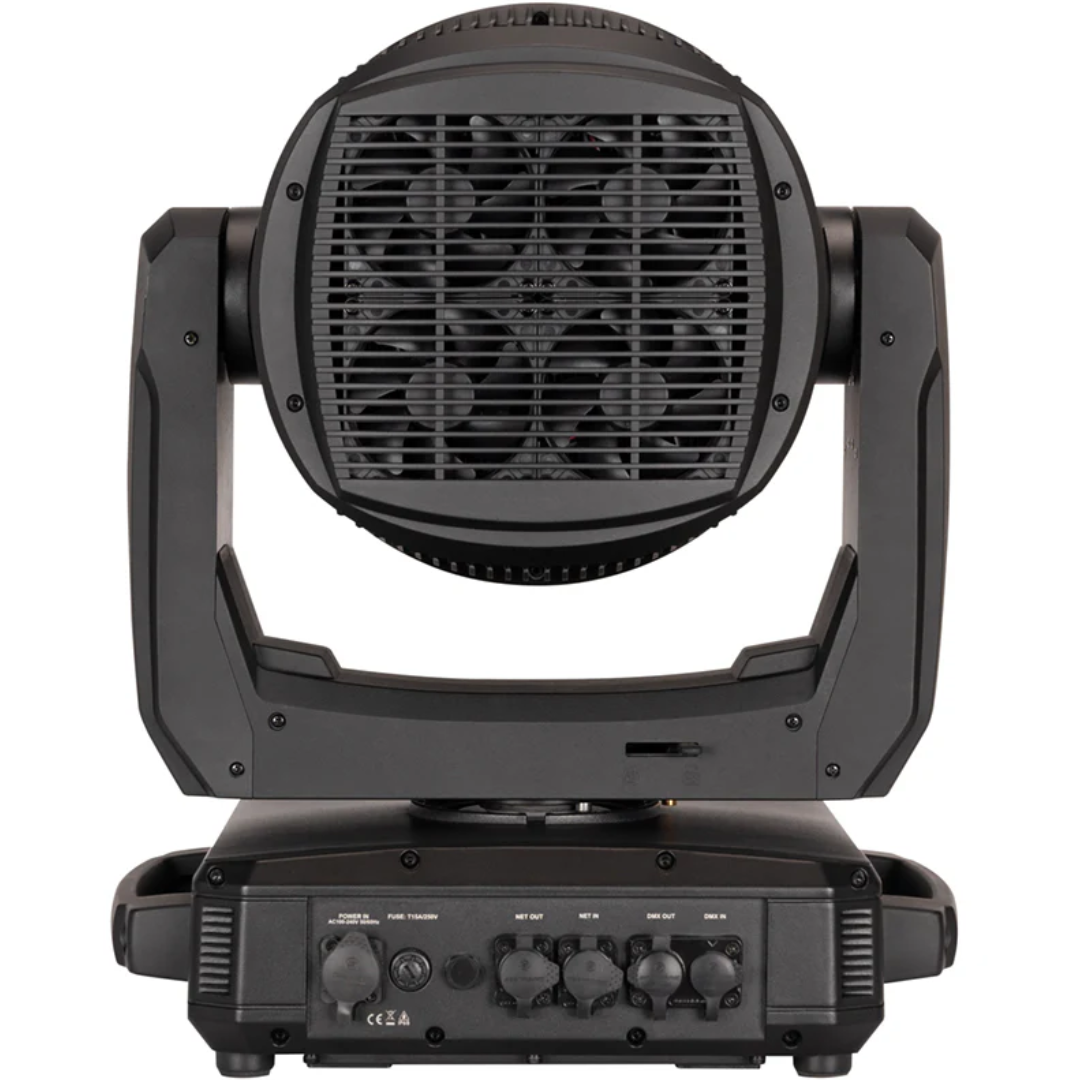

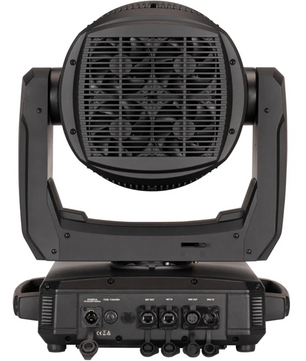

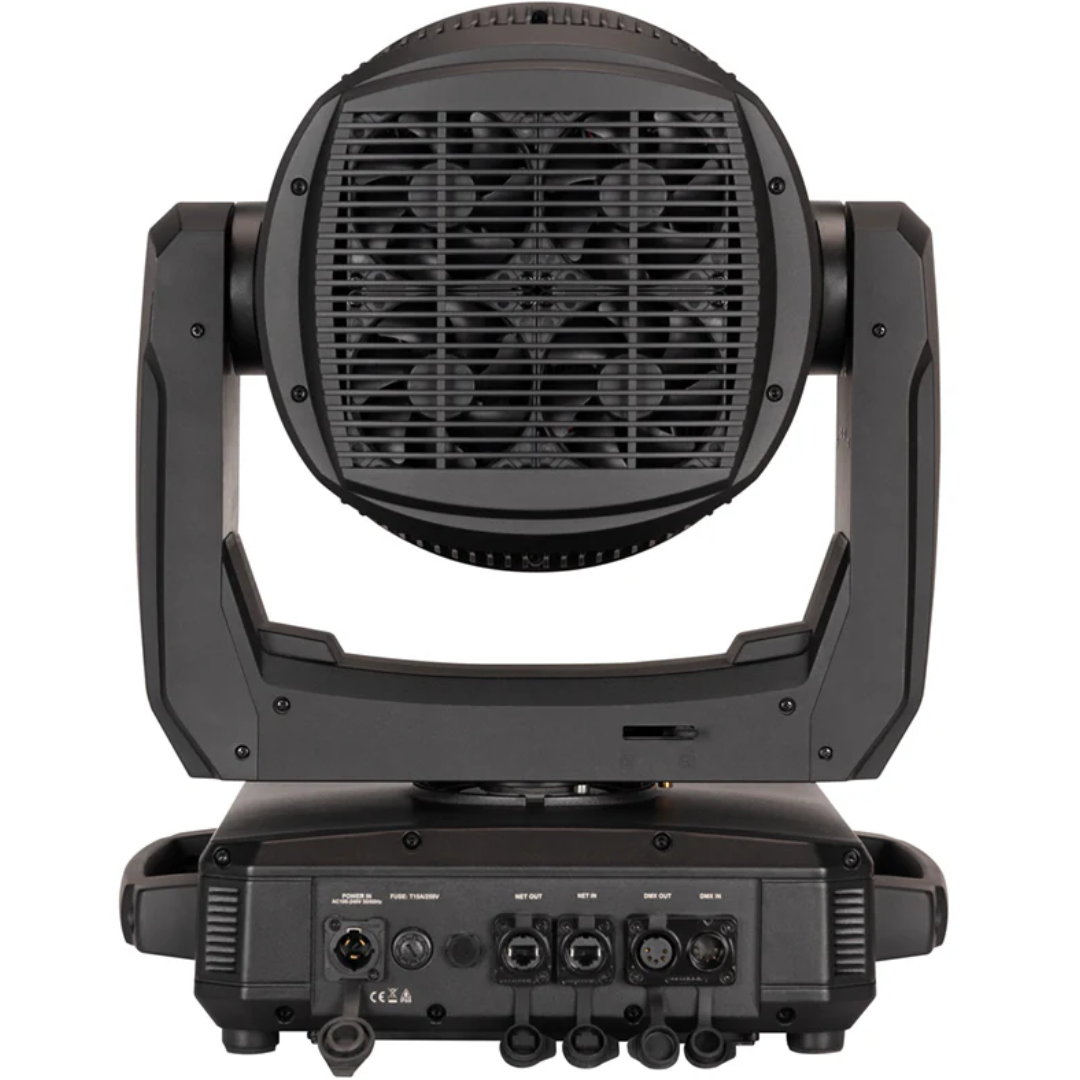

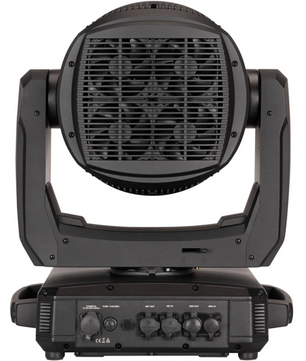

- Connections: IP65 locking power, 5-pin DMX, RJ45 network
- Electrical: 100–240V, 50/60Hz, max 1400W @120V / 1350W @220V
- Cooling: Fan cooled
- Housing: IP65-rated metal construction
- Dimensions (L x W x H): 12.5" x 17.04" x 20.36" (318 x 433 x 517 mm)
- Weight: 60.8 lbs. (27.6 kg)
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
- Certifications: cETLus (Control # 4010765), CE, FCC, UKCA
- UPC: 810087373801
What's In The Box
- (1) American DJ Hydro Flex L19 Fixture
- (2) 180mm Omega Brackets
- (1) 1.83m IP65 locking power cable
- (1) Safety Cable
