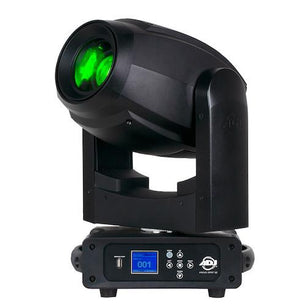

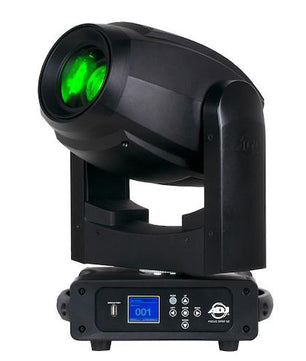

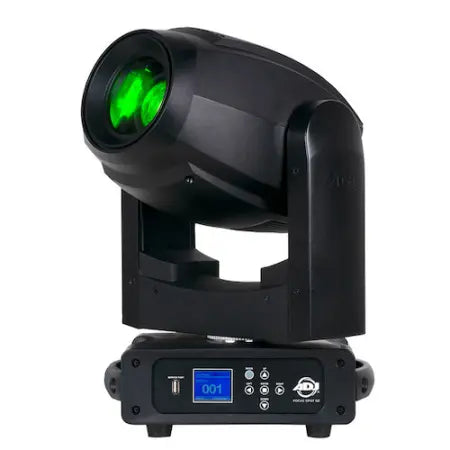

American DJ Focus Spot 5Z

$1,779.99

Order within [hour] to get by [date_end]

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

American DJ Focus Spot 5Z

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

The Focus Spot 5Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus, zoom (11 ~ 22-degree zoom), Iris and two Frost filters. It is designed for temporary live events and fixed installations in nightclubs, stages or churches. It is professionally fit with one GOBO wheel (7 aluminum and 1 glass GOBO) with 7 rotating/replaceable GOBOS, two COLOR wheels, each with 7 vibrant colors plus white, and 2 rotating/indexable prisms, (one 5-facet linear and one 6-facet circular). It also has two frost effects (heavy frost and light frost).

The Focus Spot 5Z has locking power In and out connectors to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 5Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

The Focus Spot 5Z fits in the ADJ DRC MH road case.

Features:
• Motorized Focus
• 2 Frost Filter to create wash effects
• Motorized Zoom: 11 ~ 22-degrees
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• 2 cooling fans

Specifications
Light Source:
• 200W Cool White LED Engine (50,000 hr.)

Color Wheels:
• 7 dichroic colors + white on tow separate wheels (includes CTO, CTB and UV filters)

GOBO Wheels:
• 6 aluminum GOBOs, 1 glass GOBO + open
• All GOBOs are removable & rotatable
• GOBO Shake Effect
• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
• Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

Prism Wheel:
• Prism Wheel 1: Rotatable 5-facet Linear
• Prism Wheel 2: Rotatable 6-facet Circular
• Each Prism is indexable
Frost Filters:
• Frost 1: Heavy frost for wash effect
• Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX
Control:
• 3 DMX Channel Modes: 22/25 Channels
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network

Pan/Tilt:
• Pan: 630 degrees
• Tilt: 270 degrees

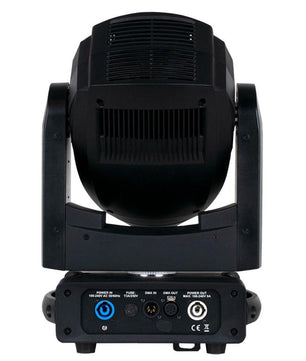

Connections:
• DMX Connections: 5-pin XLR In/Out
• Power Connections: PowerLock In/Out to daisy chain power
Electrical:
• Multi-voltage operation: 90-240V, 50/60Hz
• Max power consumption: 290W
Dimensions & Weight:
• Dimensions: 7.15” (L) x 10.97” (W) x 18” (H) (181.5 x 278.61 x 457.4mm)
• Weight: 23 lbs. / 10 kg.

What’s Included:
• Omega Bracket
• 1.83M locking power cable

Shipping

We only list in stock items on TheDJHouse.com.

Orders ship from our northern NJ warehouse the same day if ordered by 3:30PM EST. Transit time ETA's are listed in the image below:

Return Policies

All orders come with our industry leading 90-Day return policy.

Cash Back or Store Credit available for returns within 30 days.
Store Credit available for returns within 31-90 days.

Restocking fees

Unopened Items: 5%
Opened but Mint Condition: 15%
Blemished, Missing/Damaged Packing or Accessories: 25%

Shipping Costs

Buyer is responsible for return shipping costs
If "Free" or discount shipping was provided with original order, our actual shipping cost will be deducted from the amount refunded/credited

Damages & Defects

We will swap any item reported as damaged or defective within 7 days of delivery for free. All transportation and replacement costs will be covered by us (within US48 states).
