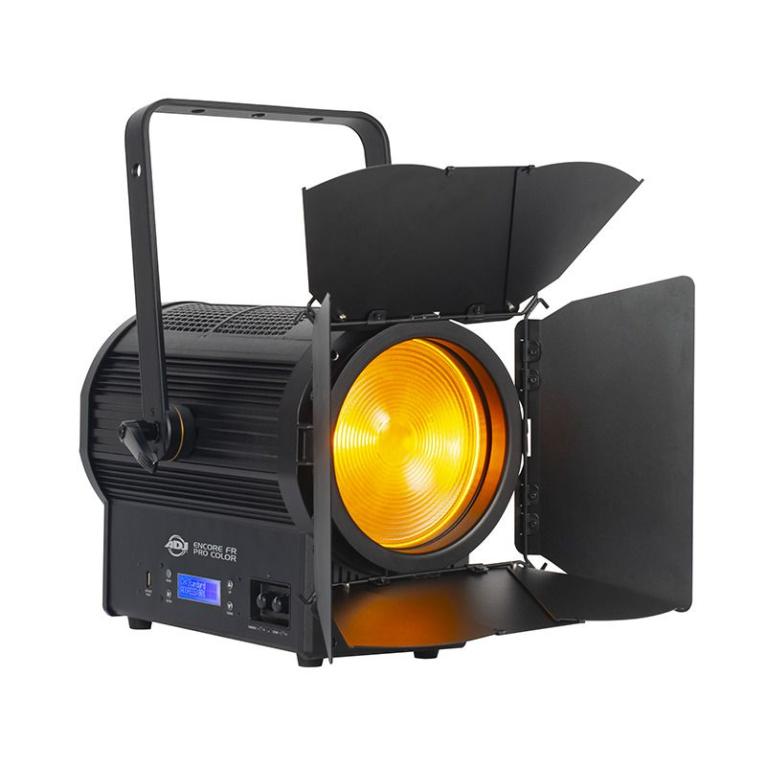

The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, lime and cyan LEDs. It offers a full spectrum of colors with CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K.
The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light. It offers a full spectrum of colors with CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K. It’s powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, lime and cyan LEDs.
The Encore FR Pro Color has a motorized zoom range of 9 ~ 37-degrees, a high CRI rating with an output of more than 11,000 Lumens. There are an abundant of on-board features such as 5 DMX control modes, 6 Dim Curves, preset color macros, and adjustable refresh rates.
The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.
A rotating 4-leaf barn door, two safety cables and power cord are included with the fixture.
FEATURES:
Motorized Zoom
Electronic Dimmer and Strobe (1-20Hz)
Variable 16-bit Dimming Modes and Curves
Virtual CMY Color Mixing DMX Control Modes
Tunable White Color Temperature from 2400K to 8500K
62 Preset White Color Temp Macros (2400K to 8500K)
60 Preset Colors on Virtual Color Wheel
64 Preset RGBA Color Macros
SPECIFICATIONS:
SOURCE
400W 6-IN-1 LED (Red, Green, Blue, Amber, Lime and Cyan)
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
9237 Total Lumen Output (Full ON, Zoomed Out to Full)
23,179 LUX 2,153 FC @6.6’ (2m) (Zoomed In / Full ON)
2,860 LUX 266 FC @6.6’ (2m) (Zoom Out / Full ON)
Beam Angle: 9° to 37°
Max Field Angle: 49.9°
Color Temperature: Tunable, 2400K to 8500K
CRI: 94+
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)
Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)
6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
Dim Speed Options (0.1s to 10s)
4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
3/5pin DMX Input and Output
Locking Power Input and Output
USB Service Port
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.32” (414.5mm)
Width: 14.18” (360.1mm)
Vertical Height: 19.29” (490mm)
Weight: 20.9 lbs. (9.45kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
420W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 2Pcs @ 110V / 5Pcs @ 240V
INCLUDED ITEMS
Barn Doors
Locking Power Cable
Two (2) Safety Cables
APPROVALS / RATINGS
CE | cETLus | IP20
