American DJ Elektron Bar FX | 1m Amber Blinder & RGB Pixel Bar with 60 Programs

Hybrid RGB Pixel Bar and Amber Blinder for DJs and Stage Effects

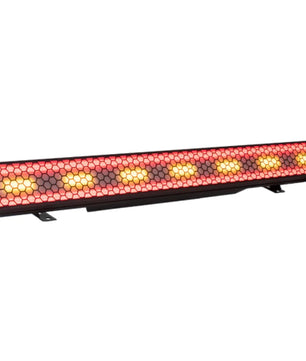

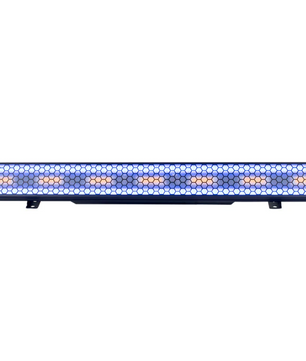

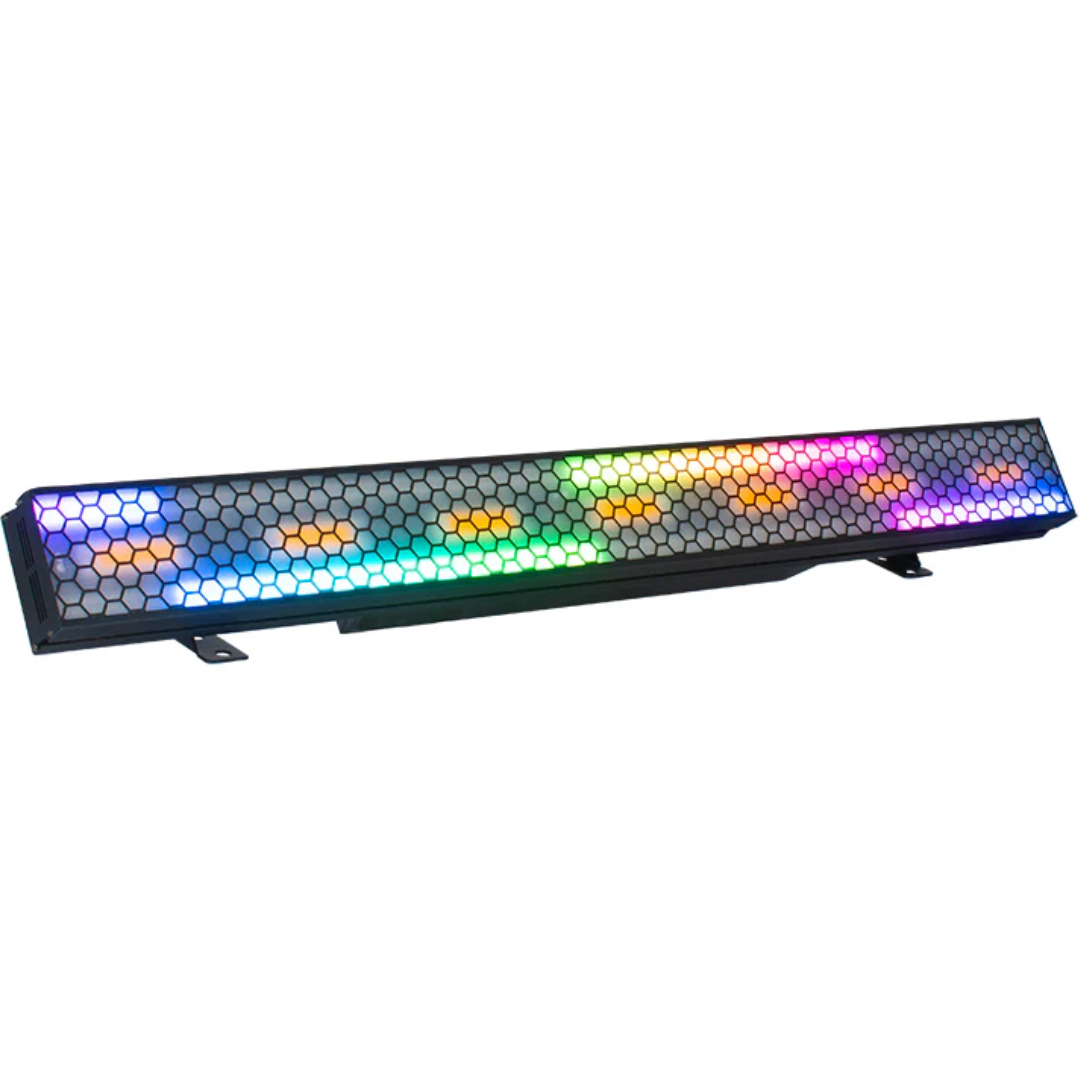

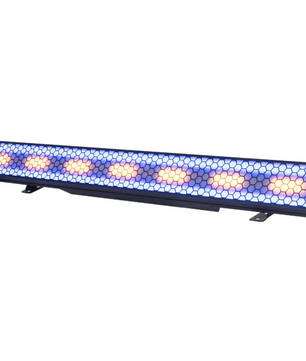

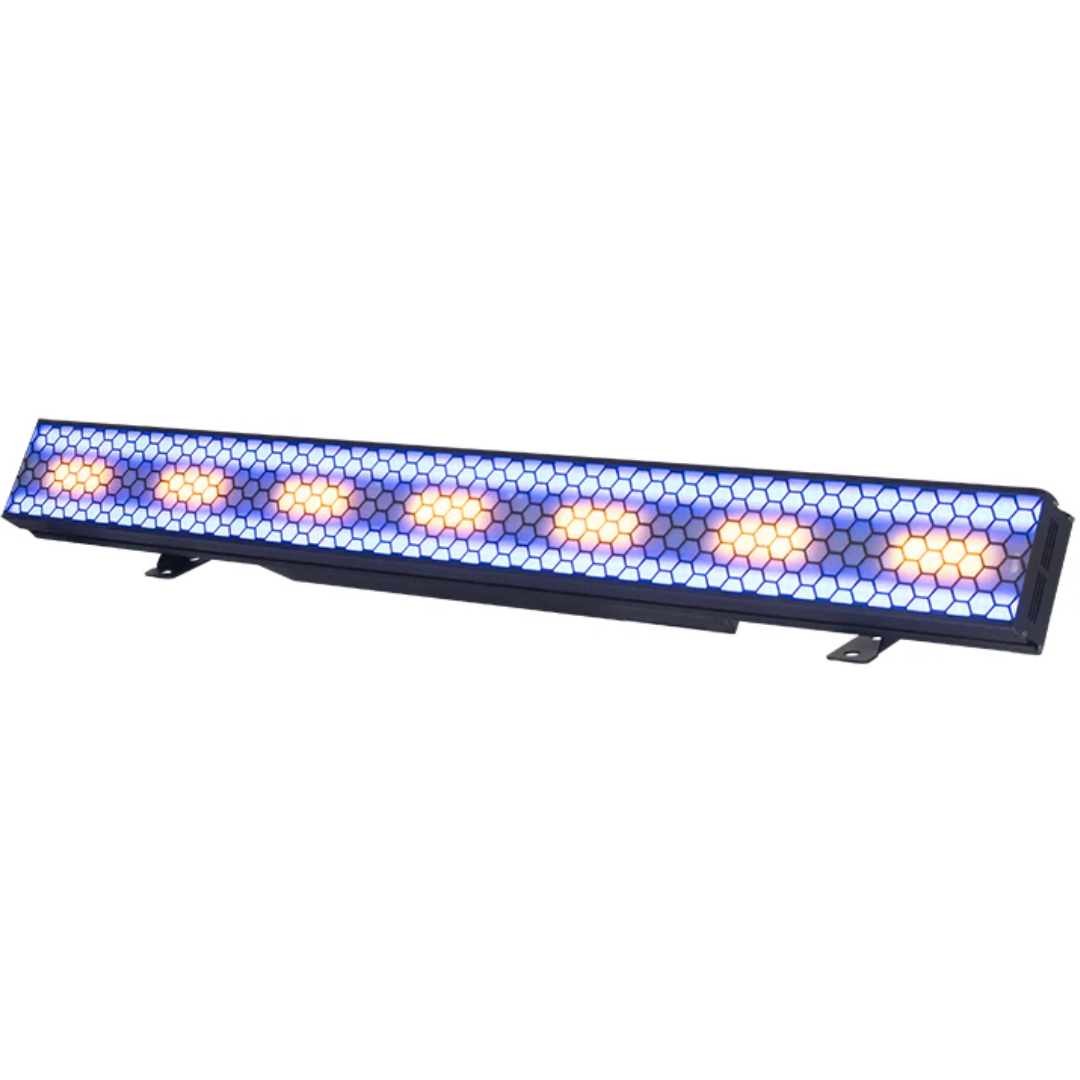

The American DJ Elektron Bar FX (by Eliminator Lighting) is a powerful and compact 1-meter linear LED fixture designed to deliver dynamic color washes, high-impact amber blinder effects, and pixel-style visual chases. Featuring seven 40W amber LEDs (1800K) and 528 RGB SMD LEDs, this hybrid light is perfect for mobile DJs, stage productions, concerts, and fixed installations seeking high-output effects in a compact form factor.

American DJ Elektron Bar FX Competitive Differences

• Hybrid LED design: 7 x 40W warm amber LEDs and 528 x RGB SMD LEDs
• Massive 66 RGB LED zones and 7 amber zones for detailed pixel mapping
• 60 built-in programs with speed control for quick setup and dynamic visual variety
• Selectable DMX channel modes: 7, 12, or 20 channels
• 0–100% smooth dimming with 6 dimming presets and 4 curve profiles
• Strobe rate adjustable from 0 to 20 flashes per second
• Wide refresh rate (900Hz – 25kHz) for flicker-free operation on camera
• Locking power and DMX connectors for secure and professional installations
• Integrated 3-fan cooling system for stable long-term operation

American DJ Elektron Bar FX Description

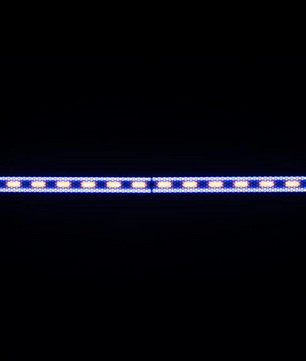

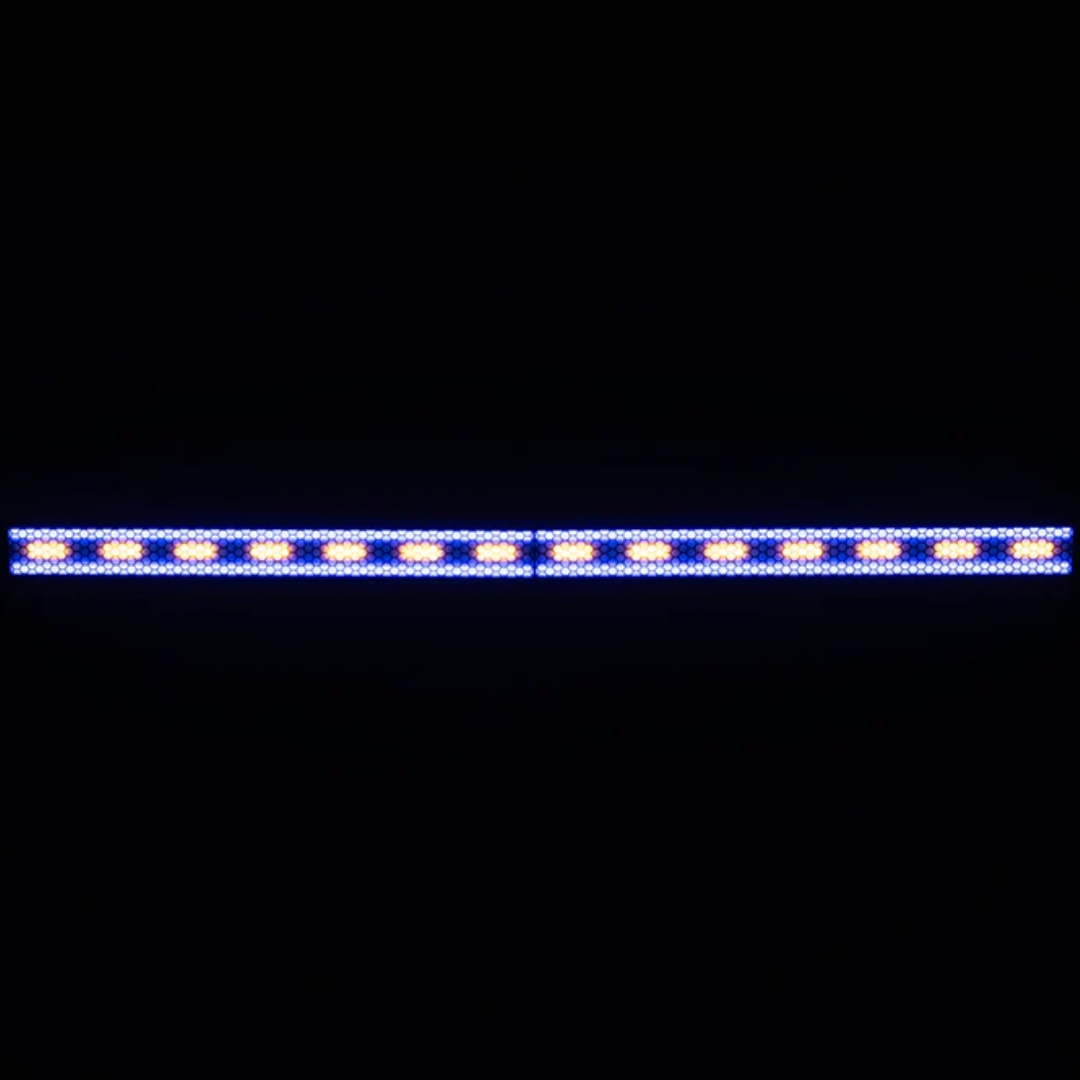

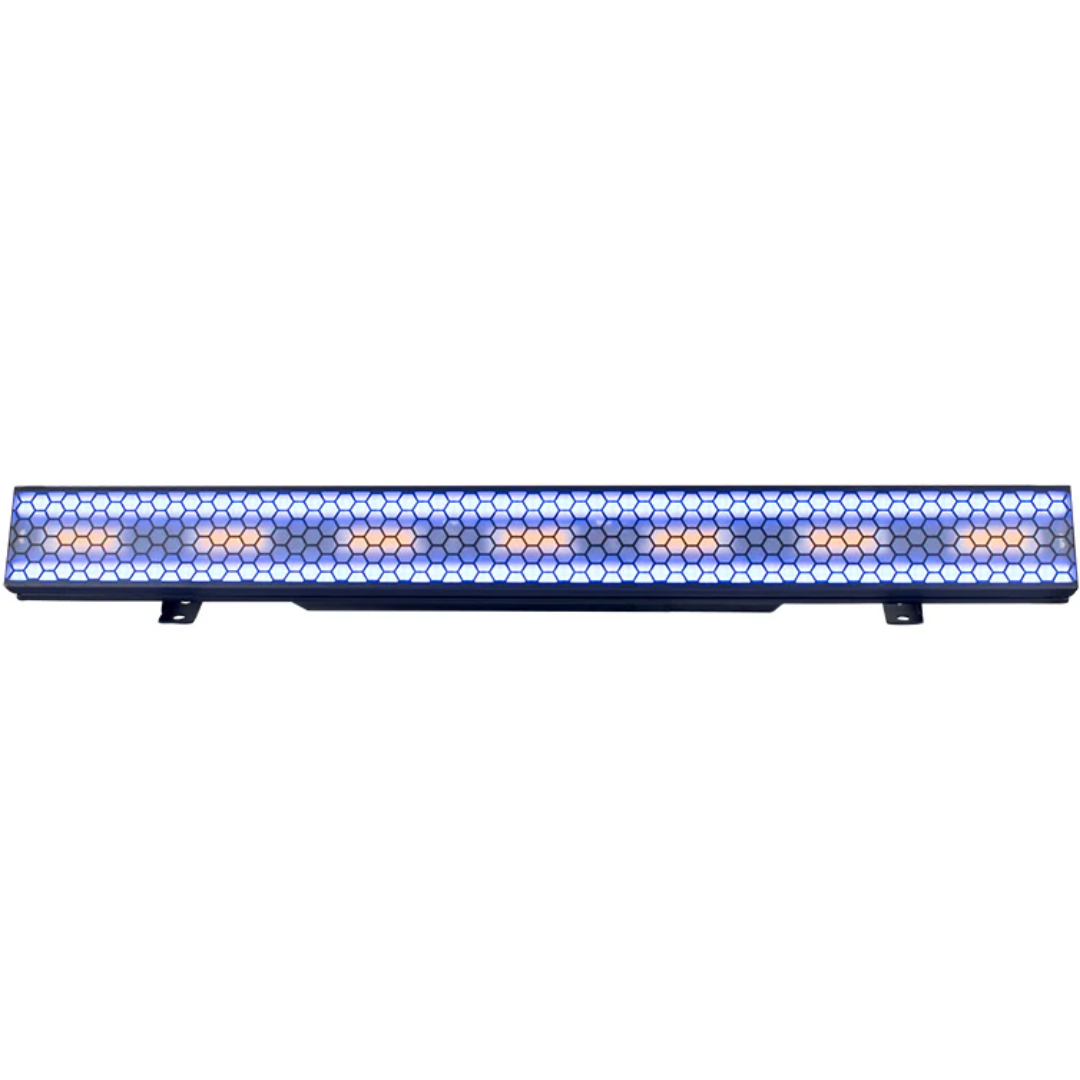

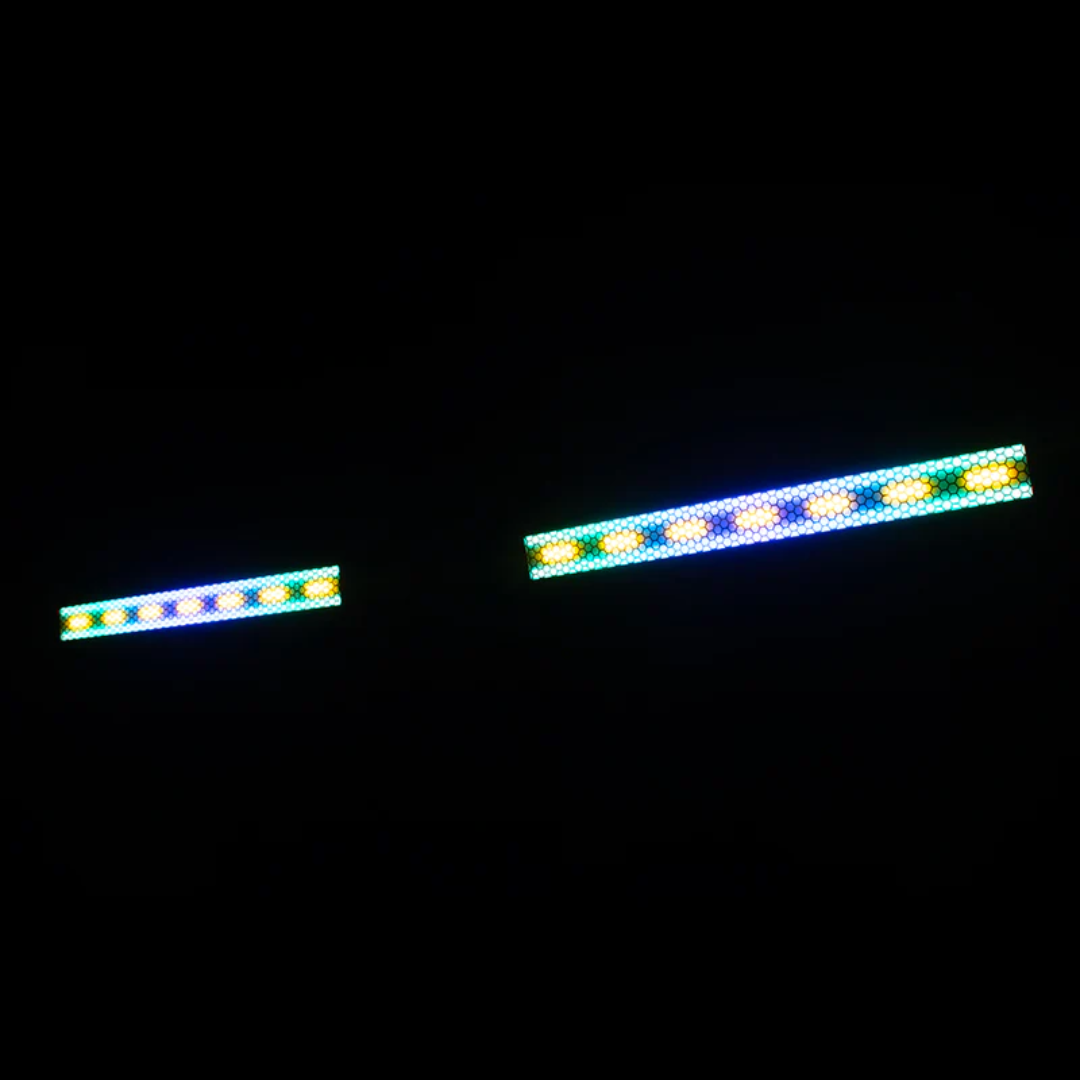

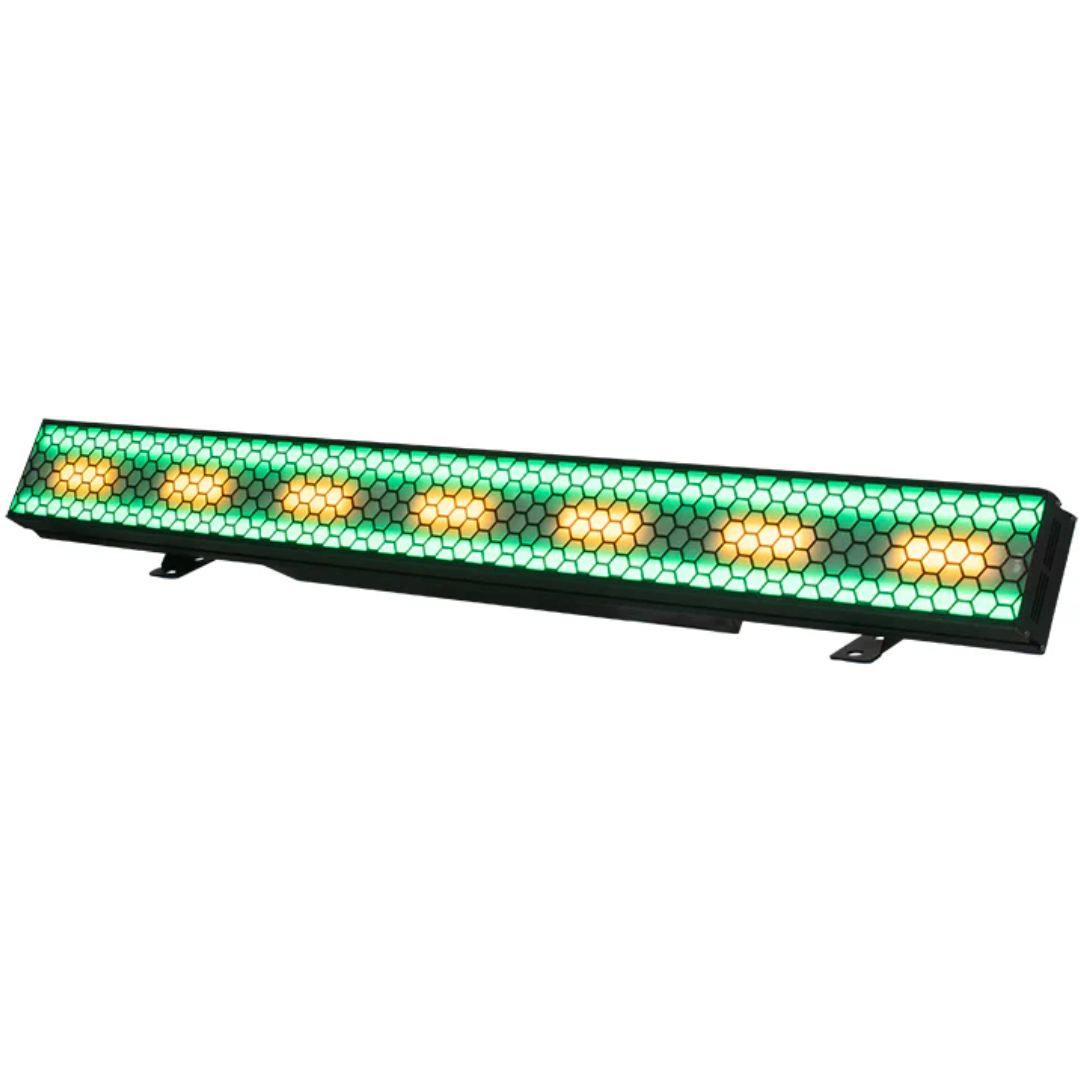

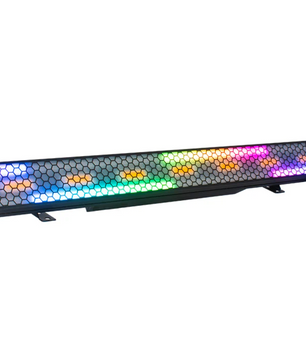

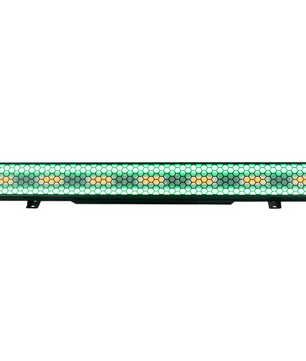

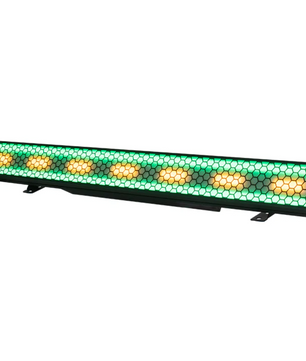

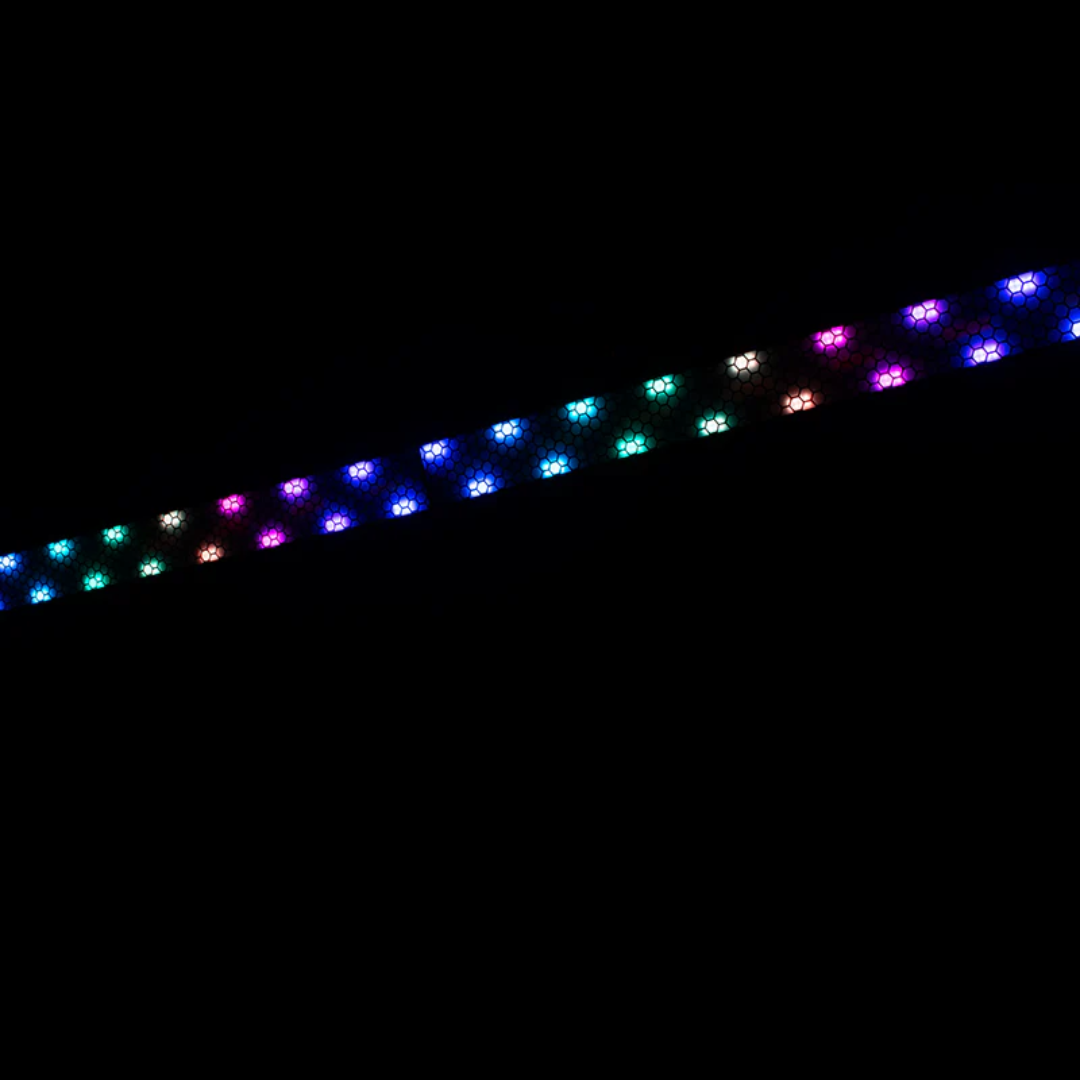

The Elektron Bar FX delivers a dual lighting effect system in one compact unit—combining intense amber blinders and full-spectrum RGB pixel mapping into a rugged 1-meter linear bar. Its 7 x 40W amber LEDs provide rich, warm strobe or blinder effects (at 1800K), while the 528 RGB SMD LEDs deliver vivid color washes, pixel chases, and programmable effects across 66 separate zones.

This fixture features 60 built-in programs with speed control, offering instant access to complex effects without external programming. When deeper control is required, it supports DMX512 across three channel modes (7, 12, or 20), plus primary/secondary (master/slave) and sound-active modes. Dimming is precise and configurable with 6 dimmer mode presets and 4 dimming curve profiles.

With an intuitive 4-button digital LCD display, rugged IP20 locking connectors, and dual mounting brackets, the Elektron Bar FX is designed for professional performance. The internal 3-fan cooling system ensures stable operation, even during long events. Lightweight and easy to install, it’s the perfect tool for enhancing visual productions with impactful color and warm blinders.

Elektron Bar FX Features

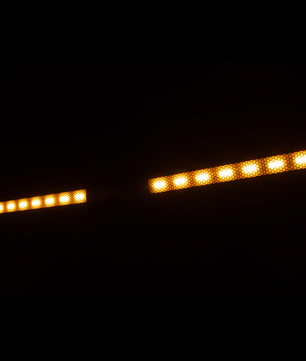

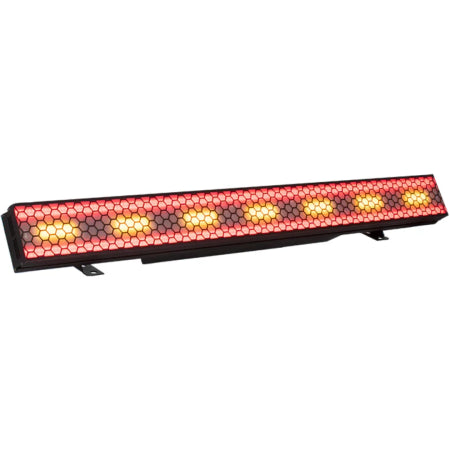

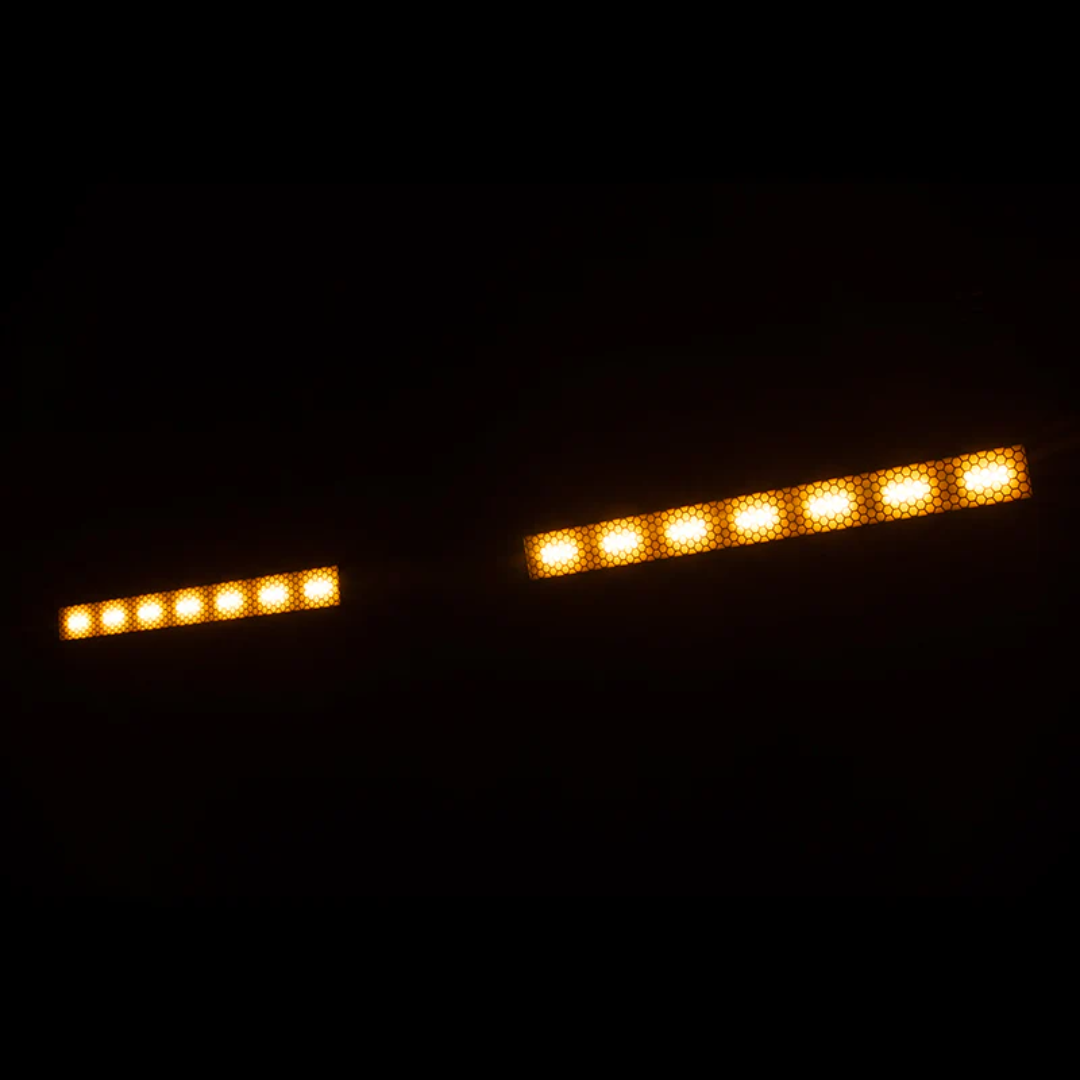

• 7 x 40W amber LEDs (1800K) for warm strobe/blinder effects
• 528 x 0.5W RGB 5050 SMD LEDs for color washes and pixel effects
• 66 RGB LED zones and 7 amber zones for creative design control
• 60 built-in programs with adjustable speed
• Selectable DMX modes: 7, 12, or 20 channels
• 0–100% dimming with 6 dim modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 4 dimming curves: Linear, Square Law, Inverse Square Law, S-Curve
• Adjustable strobe rate: 0–20 Hz
• Primary/Secondary and Sound Active control modes
• Digital LCD control panel with 4-button interface

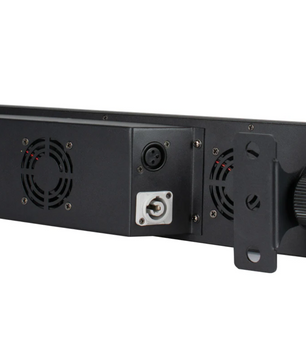

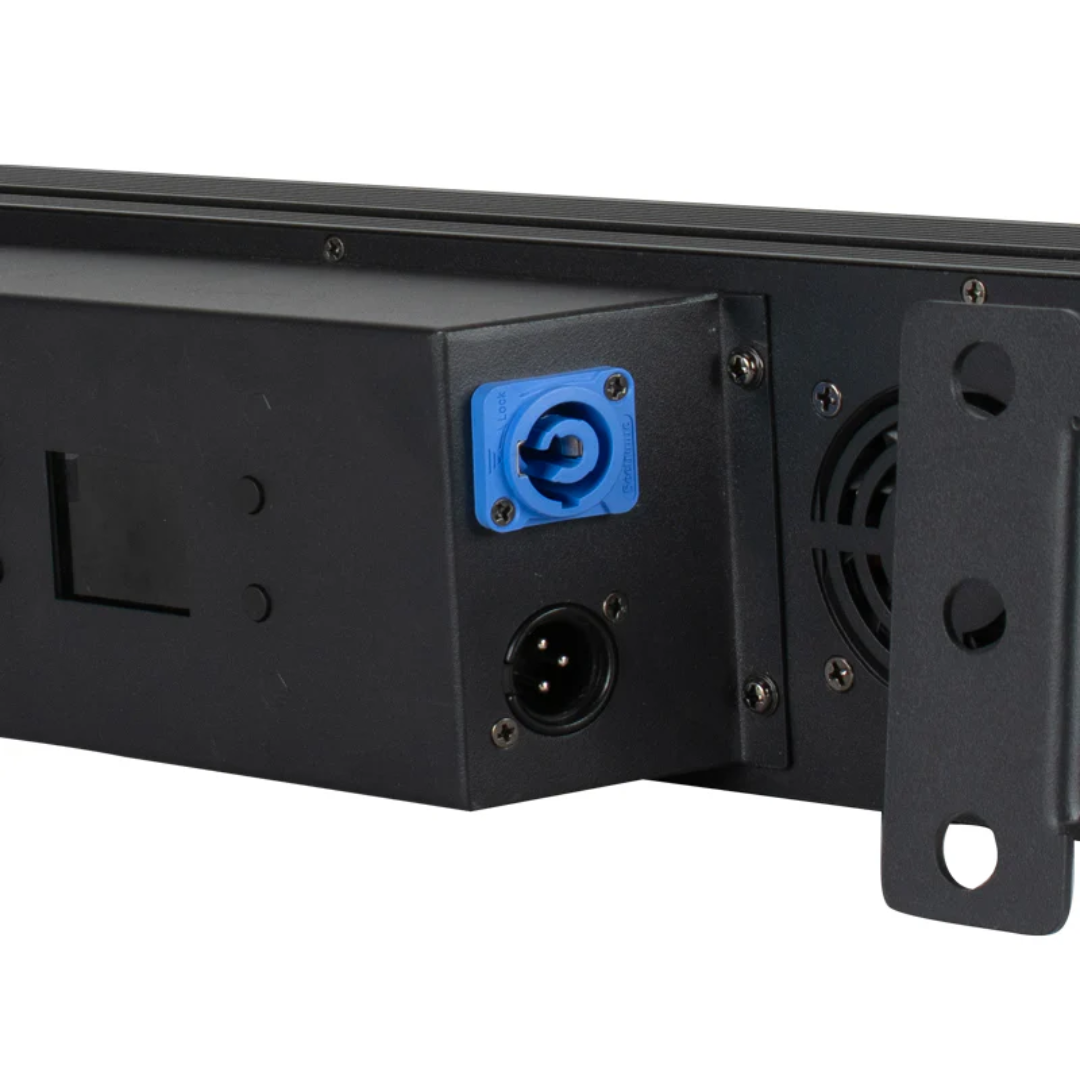

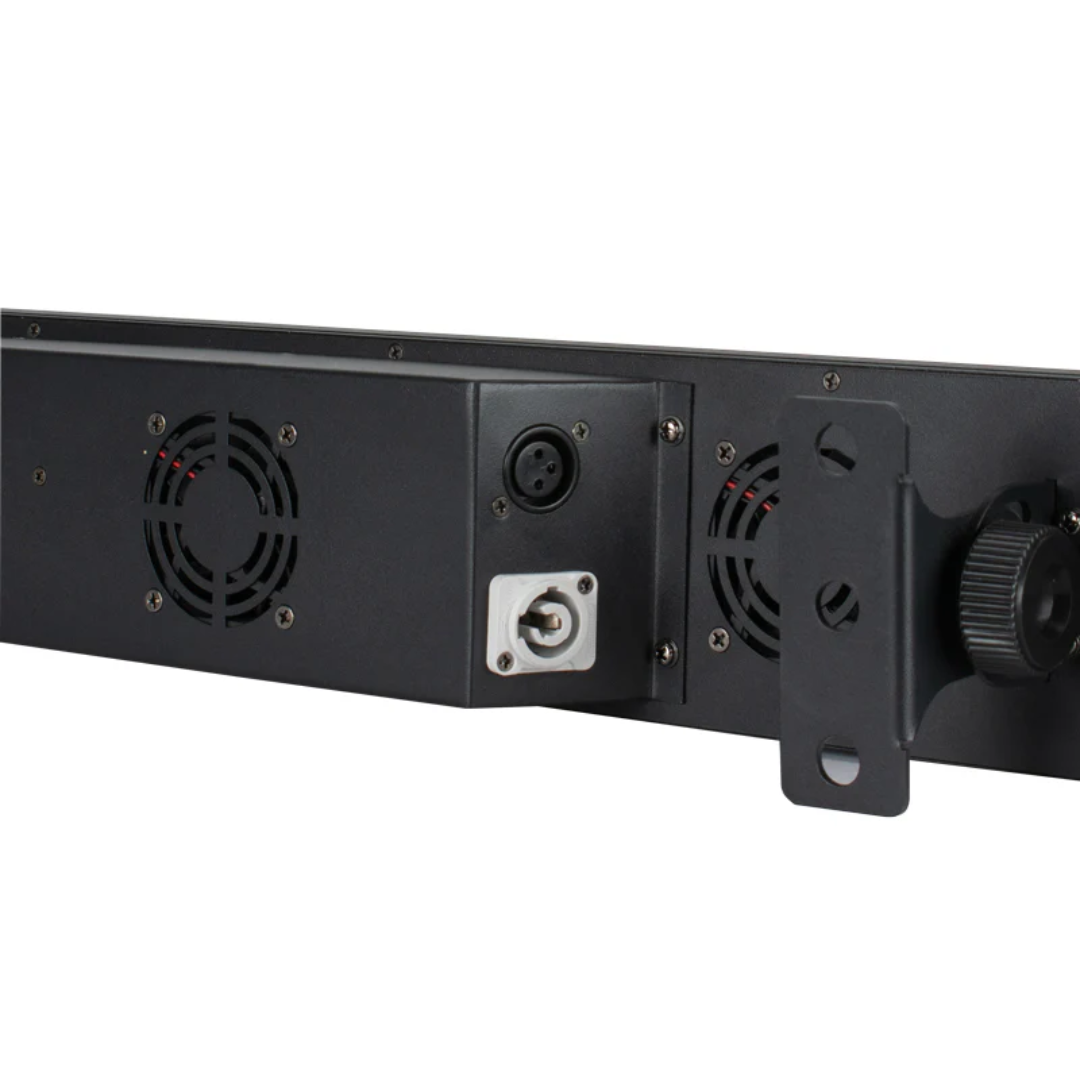

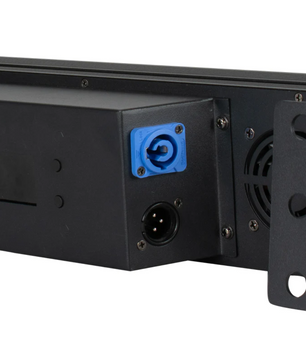

• Locking 3-pin DMX in/out connections (IP20-rated)
• Locking power in/out connections (IP20-rated)

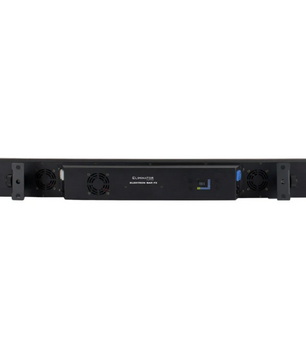

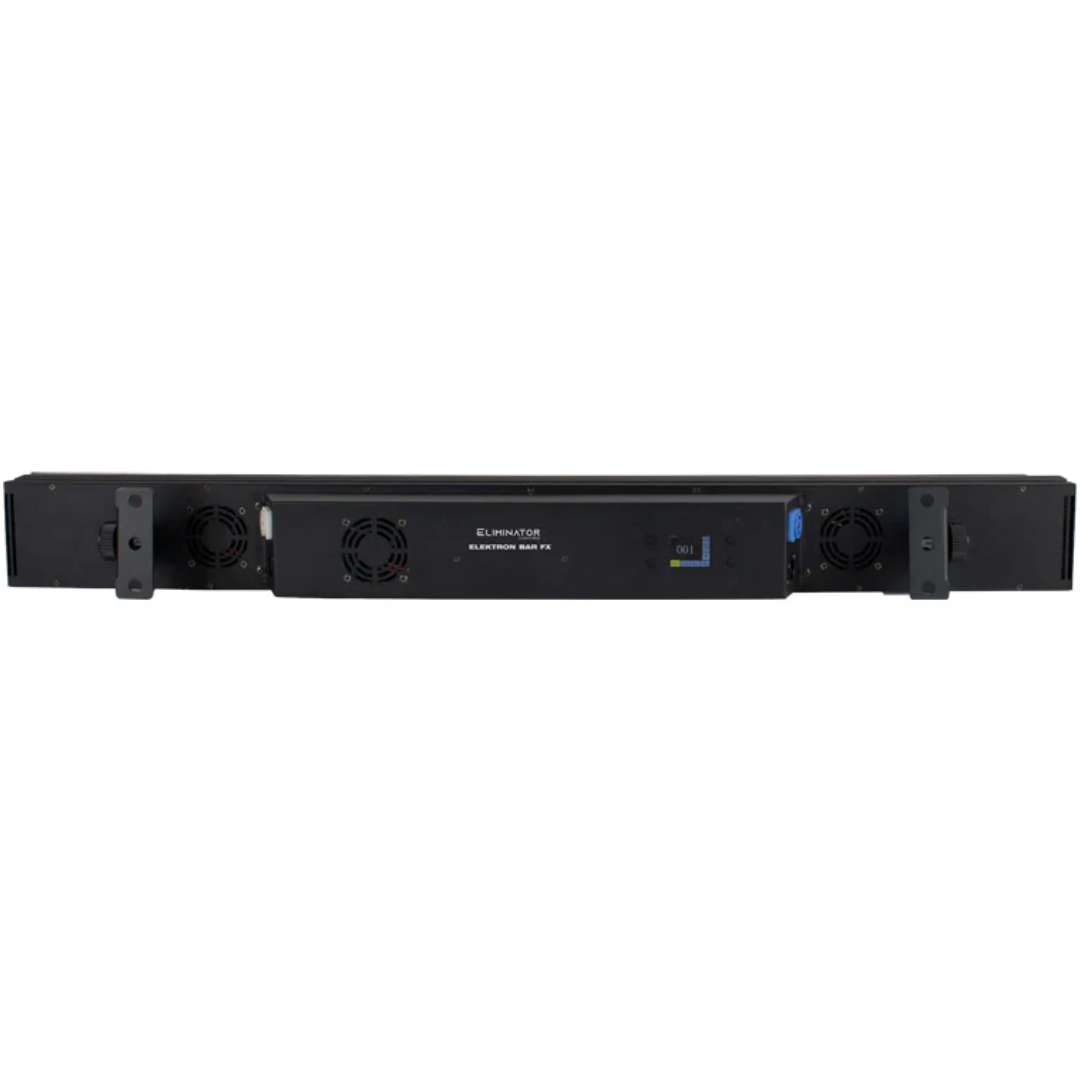

• Three-fan internal cooling system

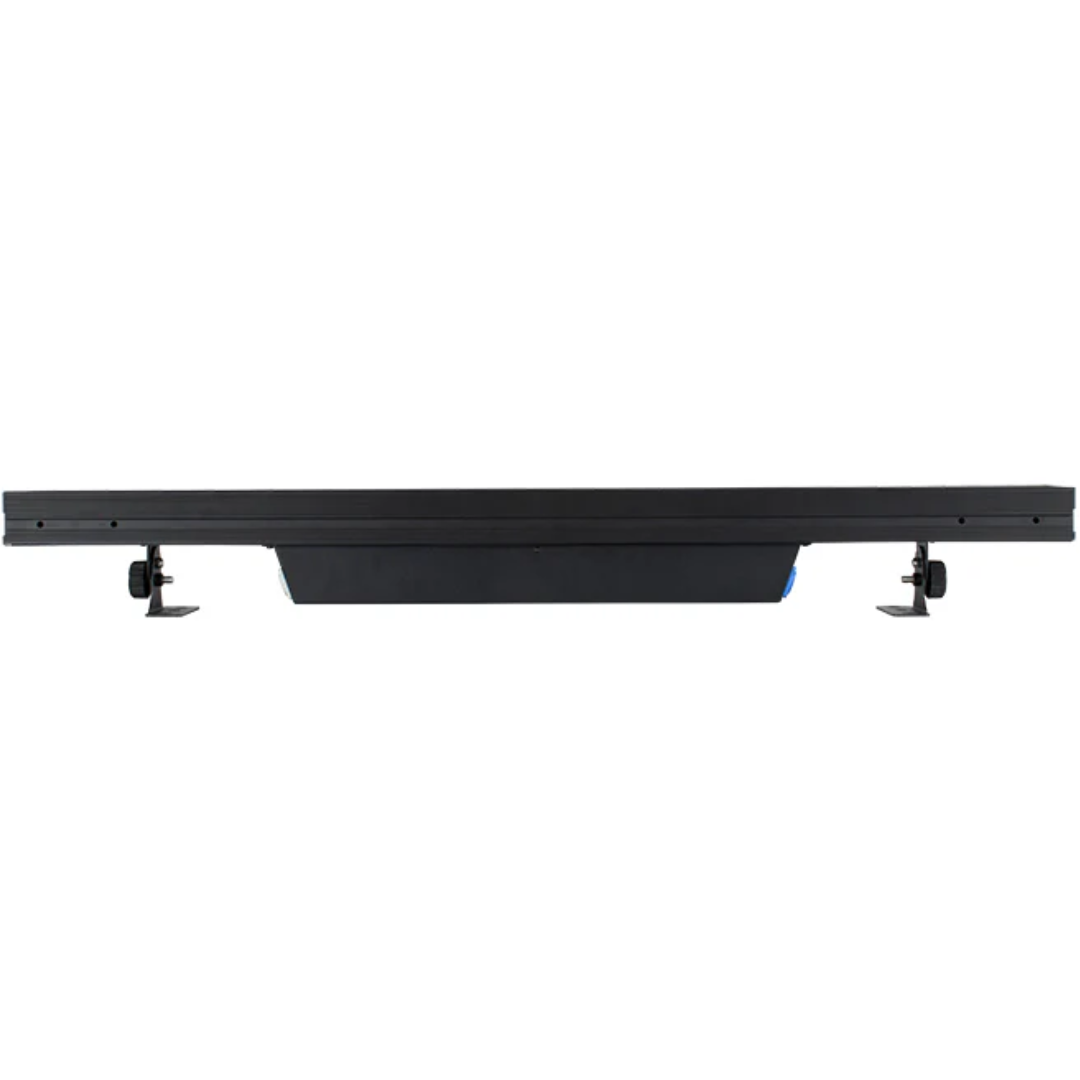

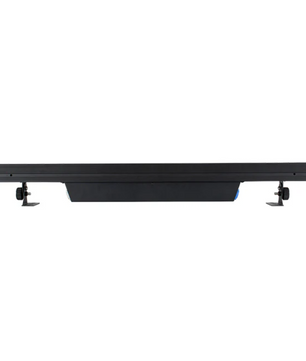

• Dual mounting brackets for truss or floor positioning

Elektron Bar FX Specifications

• Light Source: 7 x 40W Amber LEDs + 528 x RGB SMD LEDs
• Color Temperature (Amber): 1800K
• LED Lifespan: 50,000 hours (average)
• Control Protocols: DMX512, Sound Active, Primary/Secondary
• DMX Channels: 7 / 12 / 20
• Strobe Rate: 0–20 flashes per second
• Refresh Rate: 900Hz – 25kHz
• Max Power Consumption: 300W @ 120V
• Power Linking: 7 units @ 120V, 14 units @ 230V
• Voltage: 100–240V AC, 50/60Hz (auto sensing)
• Fuse: T5A/250V Glass Fuse (5×20mm)
• Data Connections: Locking 3-pin DMX In/Out (IP20)
• Power Connections: Locking Power In/Out (IP20)
• Dimensions: 39.5" x 4" x 4.75" (1000mm x 100mm x 118mm)
• Weight: 10.75 lbs. (4.8 kg)
• IP Rating: IP20 (indoor use only)
• UPC: 810087374297

What’s In The Box

• Elektron Bar FX fixture
• 1 x IP20 locking power cable
• 2 x mounting brackets
