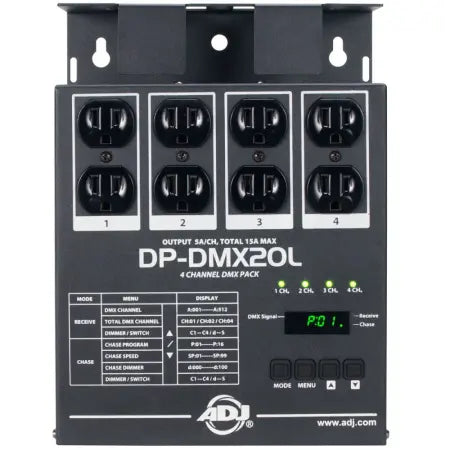

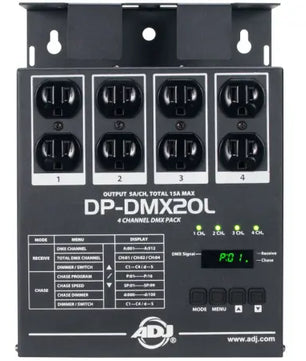

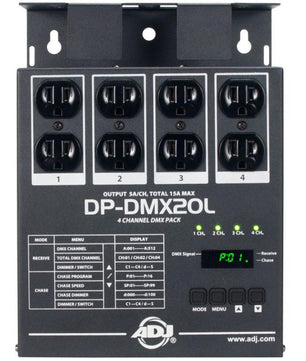

American DJ DP-DMX20L

ADJ's DP-DMX20L is a 4 channel portable and universal DMX dimmer/switch pack. Each channel can individually be set to dim or switch and the pack can function as a one, two or four channel device. Using the packs digital display, the pack is quick and easy to set up.

There are dual Edison sockets supplied so more than one effect can be connected to each channel. There are 16 built in chase sequences, with speed and intensity control, available for your convenience. This device also has four external channel fuses which allows for quick and easy serviceability while out on the road.

Another feature we included was the sleek reversible mounting panel on the rear to make it easier to install. Also for your safety we have a zero crossing circuitry for protection of the transformer loads when switching.

Specifications:
4 channel DMX Dimmer Pack
Digital display- used to set starting DMX address channels and set all other menu options
Selectable 1, 2, or 4 channel operation
Adjustable master dim level.
Two three prong Edison sockets per channel
3 pin XLR DMX Input & Output
Four LED’s display channel activity
External channel fuses for quick and easy replacement
Sleek reversible mounting panel on the rear
Zero crossing circuitry for protection of transformer loads when switching
16 built in Chases when in Chase mode with adjustable speed setting
Use in conjunction with; DMX Operator Pro, Stage Setter-8, Scene Setter-24 & Stage Setter 24
Reversible mounting brackets.
Power Input: 120V ~ 60Hz
Maximum Load: 6.3A per channel / 15A total
Dimensions: 10.25”L x 8.25”W x 3”H
Weight: 6 lbs
