Professional DMX Controller for Moving Heads and LED Fixtures

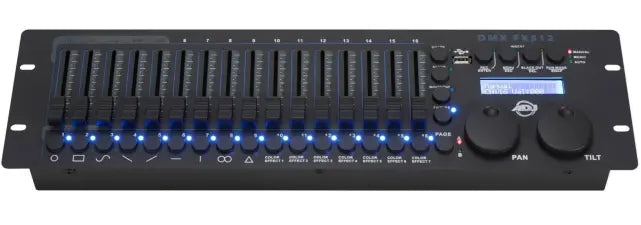

The American DJ DMX FX512 is a versatile 3-space, 19-inch rack-mount DMX controller, perfect for professional lighting designers, event producers, and fixed installations. With support for DMX-512 and RDM protocols, it offers advanced control over moving heads, RGB LED fixtures, and more. Compact and lightweight, it’s an essential tool for creating dynamic light shows with precision and efficiency.

American DJ DMX FX512 Competitive Differences

Control up to 512 DMX channels with RDM protocol for fixture configuration.
Manage up to 32 intelligent fixtures with 18 channels each.
32 programmable scenes and 32 chases, each with up to 100 steps.
Run up to 5 chases simultaneously for complex lighting effects.
16 built-in effect generators (9 for moving lights, 7 for RGB LED fixtures).

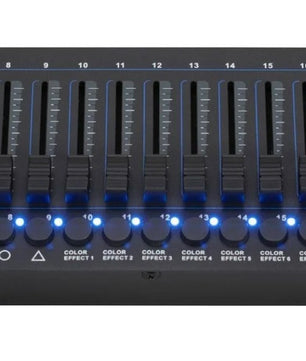

Intuitive control with 16 faders, Pan/Tilt wheels, and Effects/Fixture buttons.
Digital sound sensitivity adjustment and built-in microphone.
USB port for data backup and firmware updates.
5-pin XLR DMX output for reliable connections.
Compact design with rubber feet for portable or desktop use.

American DJ DMX FX512 Description

The American DJ DMX FX512 is designed for versatility and ease of use in various lighting applications. Its compact 19-inch, 3-rack-space design integrates seamlessly into portable setups or fixed installations. With DMX-512 and RDM protocols, it allows precise control of up to 512 DMX channels and facilitates quick setup through remote fixture configuration. Equipped with 16 channel faders, dedicated Pan/Tilt wheels, and Effects/Fixture buttons, this controller provides a hands-on, intuitive interface. The built-in mic and adjustable sound sensitivity ensure interactive, sound-activated effects for dynamic performances. With 32 programmable scenes, 32 chases, and 16 built-in effects generators, it empowers users to create immersive and captivating light shows effortlessly. The unit features a USB port for backing up data and performing firmware updates, ensuring your controller stays up-to-date with the latest features. Its lightweight construction, rubber feet, and compatibility with front-of-house desks add to its versatility.

DMX FX512 Features

19-inch rack-mount DMX controller with DMX-512 and RDM protocols.
Control 32 fixtures, each with up to 18 channels.
32 programmable scenes and 32 chases with 100 steps each.
Run up to 5 chases simultaneously.
16 effect generators: 9 for moving lights, 7 for RGB LED fixtures.
Dedicated Pan/Tilt wheels and 16 channel faders.
Sound-activated effects with digitally adjustable sensitivity.
5-pin XLR DMX output for reliable connections.
USB port for data backup and firmware updates.

DMX FX512 Specifications

Control: DMX512 and RDM, 16 channel faders, Pan/Tilt wheels, 16 Effects/Fixture buttons.
Connections: 5-pin XLR DMX output, USB port, DC power input.
Power: DC9V-12V, 300mA min. (DC9V 1A PSU included), power consumption up to 2W.
Dimensions: 5.28" (134mm) x 19" (482mm) x 2.71" (68.9mm).
Weight: 4.7 lbs (2.13kg).
Certifications: CE, cETLus (pending), IP20 rating.
Operational Conditions: Dry location, 32°F to 113°F (0°C to 45°C), <75% humidity.
Storage Conditions: Dry location, ambient storage temperature 77°F (25°C).

What’s In The Box

American DJ DMX FX512 DMX Controller
Power Supply (DC9V 1A PSU)
User Manual
