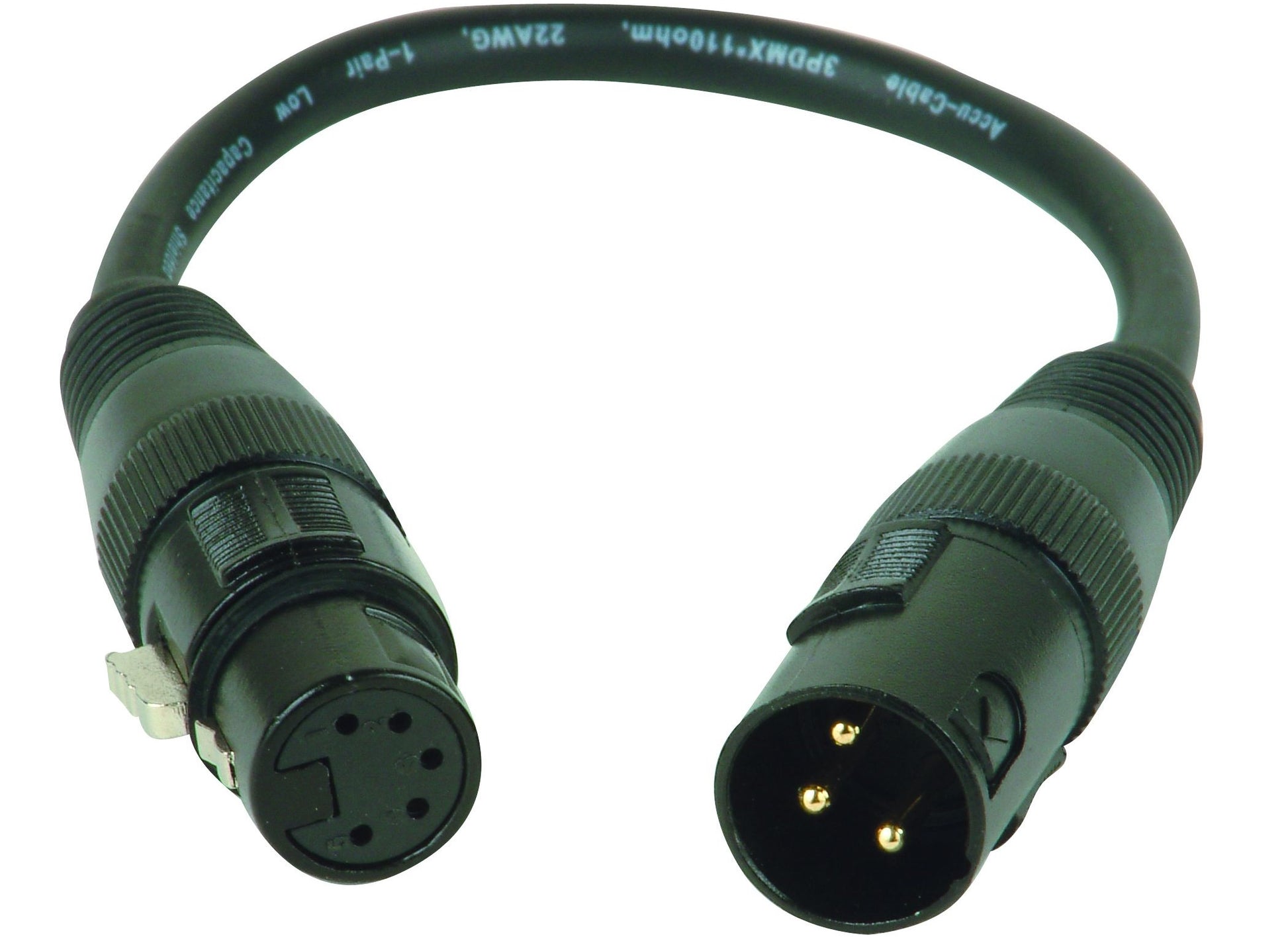

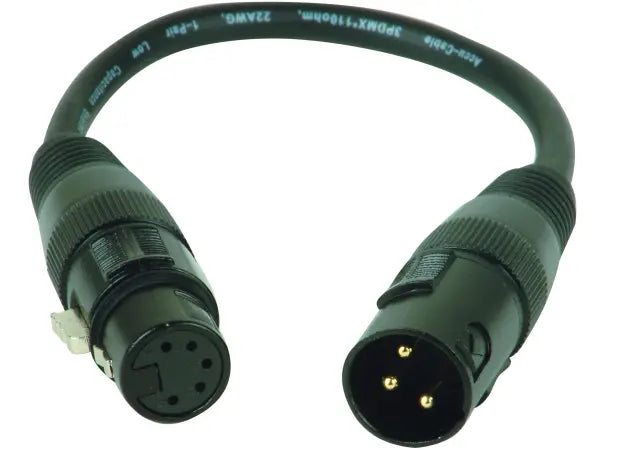

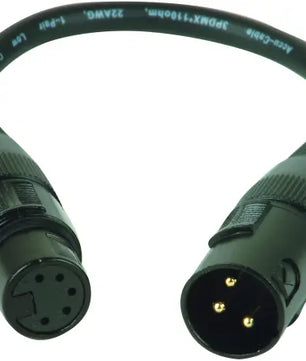

American DJ AC3PM5PFM ACCU 3 Pin Male To 5 Pin Female

$19.00
Order in the next [hour] to get it between [date_start] and [date_end]

Call For More Details

Call us at 123-456-7890

Returns & Exchanges Policy
When you buy directly from us, we want you to be 100% happy with your purchase experience. We hope you love everything you receive from us, but if you’re less than 100% satisfied, you may return or exchange any item(s) within 30 days after your purchase. Please a contact customer service team member if your order is unsatisfactory or doesn’t suit your needs. We want to make it right for you, as quickly and easily as possible
  • Step 1
    Fill out the return info on the back of your order form. Can’t find your order form? Download a copy of the return form. Want to exchange it for a different product? Let us know within 30 days of your purchase.
  • Step 2
    Return the order yourself via USPS, FedEx or any other traceable method. We encourage you to insure your package. Please send it to: Gaiam Attention: Returns 9107 Meridian Way, West Chester, OH 45069
Please allow 14 days for us to receive and process your return. Original shipping and handling fees are not refundable. We'll credit or refund the value of the items returned and any taxes you were charged less the original shipping charges. Please contact Customer Relations for more information regarding our return policies. Credit card adjustments should appear within two billing cycles.

  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Description

Shipping

Return Policies

Product: 3 Pin DMX Cables 3 Pin DMX Cables:
• AC3PDMX5 (5 Foot 3 Pin DMX Cable)
• AC3PDMX10 (10 Foot 3 Pin DMX Cable)
• AC3PDMX25 (25 Foot 3 Pin DMX Cable)
• AC3PDMX50 (50 Foot 3 Pin DMX Cable)
• AC3PDMX100 (100 Foot 3 Pin DMX Cable)

 3 Pin Male to 5 Pin Female XLR Cable:
• AC3PM5PFM (3 Pin Male XLR to 5 Pin Female XLR Turnaround)

 Description:
 22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

American DJ ACCU 25ft DMX Cable (ADJ AC3PDMX25)

Physical Characteristics:
 Conductor:

• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

 Insulation:
 Insulation Material PE Polyethylene

 Lay Length:
• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

 Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White

 Outer Shield:
• Outer Shield Trade Name: Duofoil®
• Outer Shield Type: Tape/Braid

 Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

 Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride

 Overall Nominal Diameter:
• Overall Nominal Diameter: .229"

 Mechanical Characteristics:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.

 Electrical Characteristics:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
