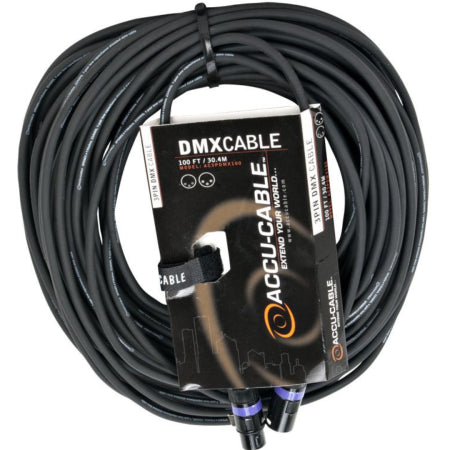

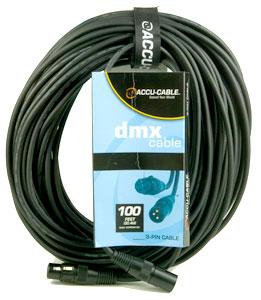

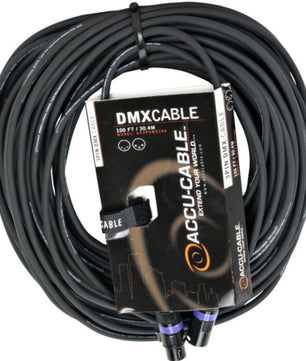

American DJ AC3PDMX100 ACCU 100ft DMX Cable

American DJ AC3PDMX100 ACCU 100ft DMX Cable

$44.99

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Product: 3 Pin DMX Cables 3 Pin DMX Cables:
• AC3PDMX5 (5 Foot 3 Pin DMX Cable)
• AC3PDMX10 (10 Foot 3 Pin DMX Cable)
• AC3PDMX25 (25 Foot 3 Pin DMX Cable)
• AC3PDMX50 (50 Foot 3 Pin DMX Cable)
• AC3PDMX100 (100 Foot 3 Pin DMX Cable)

3 Pin Male to 5 Pin Female XLR Cable:
• AC3PM5PFM (3 Pin Male XLR to 5 Pin Female XLR Turnaround)

Description:
22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

American DJ ACCU 50ft DMX Cable (ADJ AC3PDMX50)

Physical Characteristics:
Conductor:
• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

Insulation:
Insulation Material PE Polyethylene

Lay Length:
• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White

Outer Shield:
• Outer Shield Trade Name: Duofoil®
• Outer Shield Type: Tape/Braid

Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter:
• Overall Nominal Diameter: .229"

Mechanical Characteristics:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.

Electrical Characteristics:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
