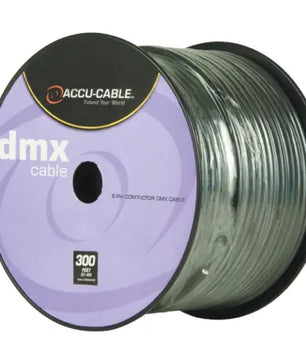

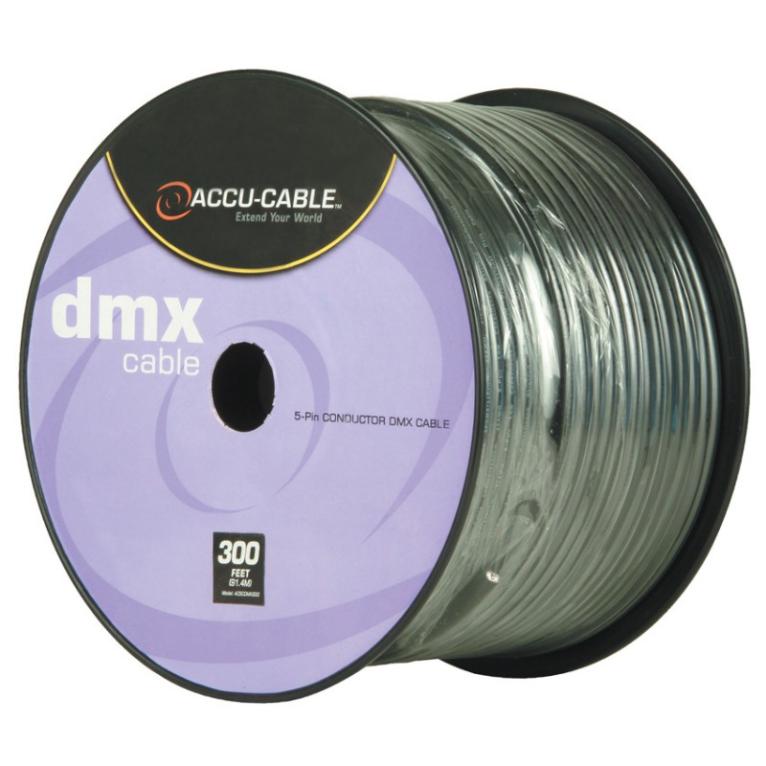

This 300' spool of American DJ Accu-Cable 5-Conductor DMX Cable allows you to make custom control cables for lighting and special effect applications. The cable features 5 conductors which can be wired to the five pins of a male or female DMX512 XLR connector. The first conductor carries the common signal. The second and third pin carry the DMX data, and the fourth and fifth conductor carry any auxiliary data if necessary such as feedback to the lighting console.

Specifications

• Physical Characteristics:
• Conductor:
• Number of Pairs: 2
• Total Number of Conductors: 4
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

• Insulation:
• Insulation Material PE Polyethylene

• Lay Length:
• Lay Length: 1.1"
• Direction: Left Hand Lay
• Twists: 10.9 per foot

• Inner Jacket:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Green/Black/Red/White

• Outer Shield:
• Outer Shield Trade Name: Duofoil
• Outer Shield Type: Tape/Braid

• Outer Shield Material:
• Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

• Outer Jacket:
• Outer Jacket Material: PVC-Polyvinyl Chloride

• Overall Nominal Diameter:
• Overall Nominal Diameter: .295"

• Mechanical Characteristics:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 50 lbs/1000
• Minimum Bend Radius (Install): 3.5"
• Maximum Recommended Pull Tension: 22 lbs.

• Electrical Characteristics:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 76%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 15 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 Amps per conductor @ 25 degree C
