16-Input, 32-Channel Rackmount Digital Mixer

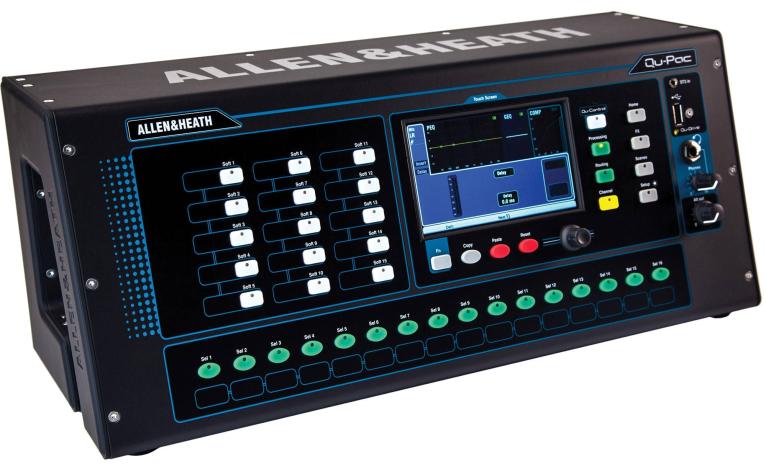

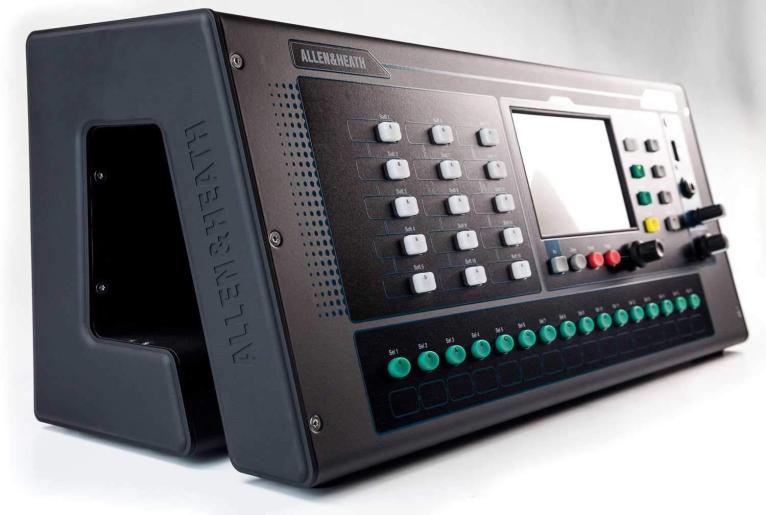

The Allen and Heath QU-PAC-32 is a 16-in/12-out rack-mountable, console-less digital mixer that doubles as a 32x32 USB recording interface. This 32-channel digital mixer features 16 of the company's recallable AnalogiQ microphone preamps, and powered by a 5 core ARM processor, the Qu-Pac provides a variety of integrated effects and processing, including channel-independent 4-band parametric EQs, compressors, delay, and reverb.
The Allen and Heath QU-PAC-32 is compatible with both the ME Personal Mixing System and dSNAKE digital connectivity system from Allen & Heath, which allows for up to 38 inputs. The Qu-Pac can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network. Engineered for intuitive navigation, the Allen and Heath QU-PAC-32 also features a 5" touchscreen display, providing access to all settings. Order this 32-Channel Digital Mixer today.
Allen and Heath QU-PAC-32 Features:
16 AnalogiQ recallable preamps
16 On-board Mic / Line Inputs (XLR / TRS)
Expandable up to 38 inputs via dSNAKE
3 Stereo Inputs (TRS)
32 Mono + 3 Stereo Input Channels
12 On-board Mix Outputs (XLR)
4 Stereo Groups
2 Stereo Matrix Outs
AES Digital Out
4 DCA Groups
4 Mute Groups
Qu-Pad iPad App for all live mixing controls
Qu-You iPhone App for personal monitoring
Qu-Drive direct Multitrack Recording / Playback on USB drives
15 Soft Keys
16 Custom Select keys
Qu-Control custom screen to suit application
4 FX Engines
4 FX Sends / Returns
32x32 USB Audio Interface

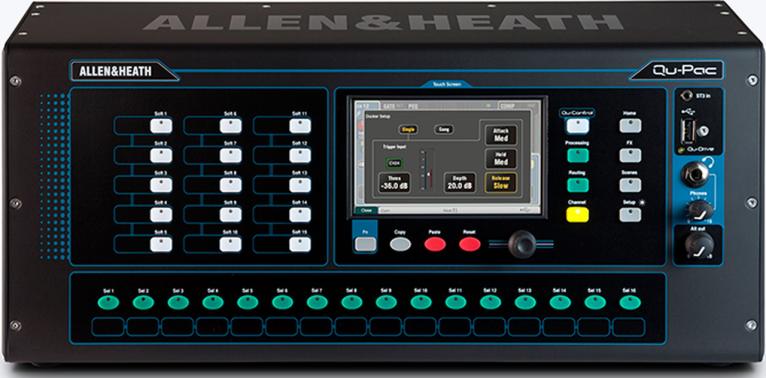

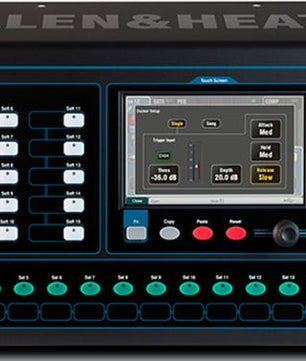

5" Touchscreen
iLive FX Library
Compatible with ME Personal Mixing System
Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
Built-in Signal Generator
RTA with Peak Band indication
Allen and Heath QU-PAC-32 Specifications:

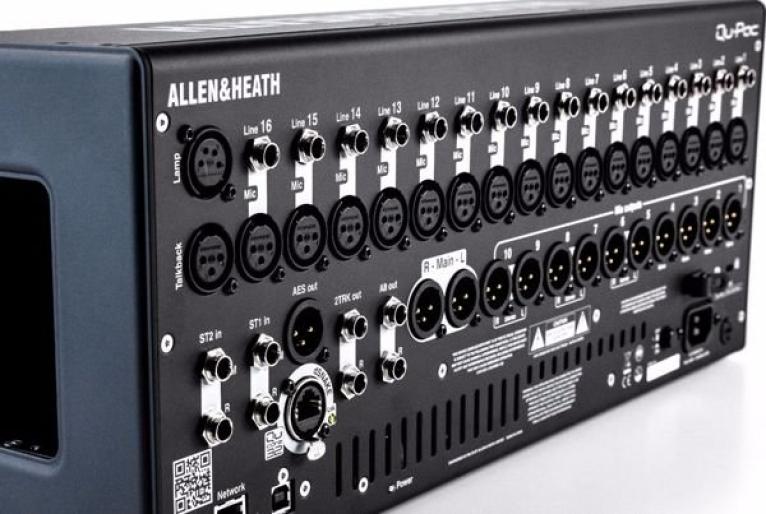

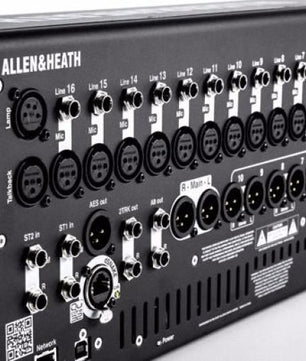

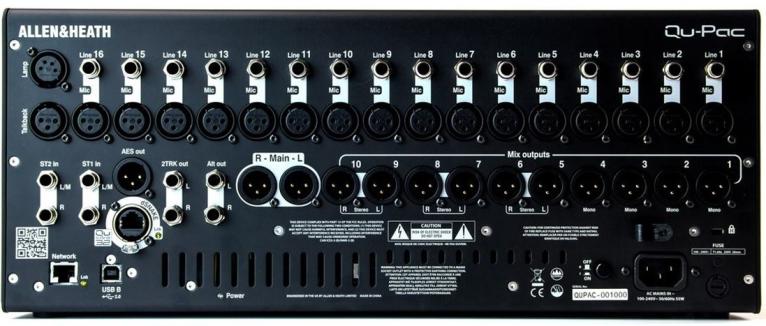

Inputs:
Mic/Line Inputs: Balanced, XLR and 1/4" TRS jack, fully recallable
Input Sensitivity (XLR/TRS): -60 to +5dBu / -50 to +15dBu
Analog Gain: -5 to +60dB, 1dB steps
Maximum Input Level (XLR/TRS): +19dBu / +29dBu
Input Impedance (XLR/TRS): > 5 kOhms / > 10 kOhms
THD+N, Unity Gain 0dB: 0.0005% -89dBu (20Hz-20kHz, Direct Out @ 0dBu 1 kHz)
THD+N, Mid Gain +30dB: 0.001% -83dBu (20Hz-20kHz, Direct Out @ 0dBu 1 kHz)
Stereo Line Inputs:
ST1, ST2 Connector: Balanced, 1/4" TRS jack, half normalled
ST3 Connector: Unbalanced, stereo 3.5mm mini jack
Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu / 0dBu
Trim: +/- 24dB
Maximum Input Level (ST1, ST2 / ST3): +22dBu / +18dBu
Input Impedance: > 7 kOhms
Outputs:
Mix 1-10 and LR Out: Balanced, XLR
Group and Matrix Out:
Output Impedance: < 75 Ohms
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -90dBu (muted, 20Hz-20kHz)
Stereo Alt Out & 2 TRK Out: Balanced, 1/4" TRS jack
Source (Alt Output / 2TRK Output): Patchable / LR post-fade
Output Impedance: < 75 Ohms
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -90dBu (muted, 20Hz-20kHz)
System:
Dynamic Range: 112dB
Frequency Response: +0 / -0.5dB 20Hz-20kHz
Headroom: +18dB
Internal Operating Level: 0dBu
dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
Meter Peak Indication: -3dBFS (+19dBu at XLR out), multi-point sensing
Meter Signal Indication: -48dBFS (-26dBu at XLR out)
Allen and Heath QU-PAC-32 Dimensions:
Height
7" (Desk), 7" (Rack)
Depth
7" (Desk), 6.9" (Rack)
Width
17.3" (Desk), 19" (Rack)
Weight
14.5 lbs.
