Allen and Heath DX168

$1,899.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

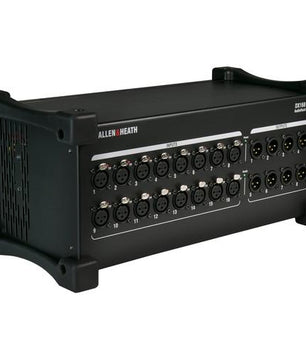

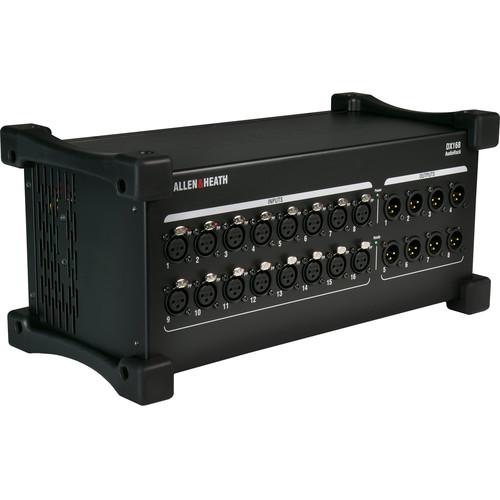

The Allen & Heath DX168 is a rugged, portable expander for adding remote I/O to a dLive S Class or dLive C Class system.

Each DX168 features 16 mic preamps with independent Phantom Power LED indicators, plus 8 XLR line outs. Up to 6 DX168 units can be connected to a dLive system – 4 via the MixRack and 2 via the Surface – allowing up to 96 remote inputs and 48 remote outputs in addition to those provided by the MixRack and Surface.

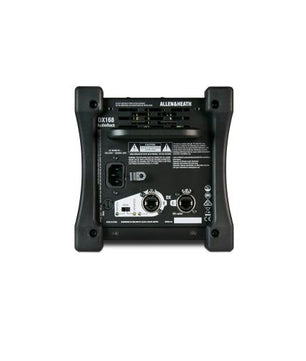

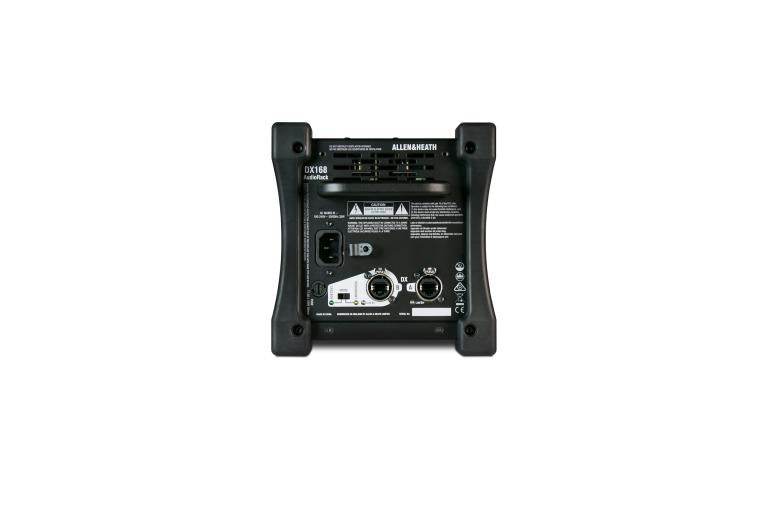

The DX168 connects via a single Cat5e cable to the dLive Surface, MixRack or upstream DX168 via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX168 for additional remote I/O.

The Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DX168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in industry standard 19-inch racks.

Features:
16 Mic Preamps on XLR with Phantom Power status LEDs
8 XLR Line Outs
Compatible with dLive S Class and dLive C Classhardware
Up to 6 DX168 units can be added to a dLive system for96 inputs / 48 outputs
Cascade mode allows daisy-chaining of 2 DX168Expanders for additional I/O (requires firmware 1.60 or higher)
Redundant DX connection to dLive S Class hardware
Plug and Play – no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m
Rubber bumpers
Carry handle

Specifications:

Inputs
XLR Mic/Line Inputs: Balanced, +48V Phantom Power
Mic/Line Preamp: Fully recallable
Input Sensitivity: -60 to +15dBu
Analogue Gain: +5 to +60dB, 1dB steps
Pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
Input Impedance: >4k Ohm (Pad out), >10kOhm (Pad in)
Mic/Line Channel noise: 22-22 kHz, Direct Out @ unbalanced out
Mic EIN: -127dB with 150Ohm source
Mic/Line Channel THD+N: 22-22 kHz, Direct Out @ unbalanced out
Outputs
XLR Outputs: Balanced, Relay protected
Output Impedance: < 75 Ohm
Nominal Output: +4dBu = 0dB meter reading
Maximum Output Level: +22dBu
Residual Output Noise: -92dBu (muted, 20-20kHz)
Operating Temperature: 0 deg C to 35 deg C (32 deg F to 95 deg F)
Mains Power: 100-240V, 50/60 Hz, 20W max
