Allen & Heath AH-M-DL-DANTE64-A | Dante 64x64 Audio Networking Card, AES67 & DDM Compatible

64x64 Dante Audio Networking Interface Card for Digital Mixers

The Allen & Heath M-DL-DANTE64-A is a high-performance Dante networking card that expands your dLive or Avantis digital mixing system with up to 64 channels of bidirectional audio over standard Ethernet infrastructure. Designed for seamless digital splits and multitrack recording, it provides low-latency, sample-accurate audio transmission, making it ideal for live sound, broadcast, and installed AV environments.

Allen & Heath M-DL-DANTE64-A Competitive Differences

• 64x64 Dante audio channels at 48 kHz / 32x32 at 96 kHz
• Redundant primary and secondary network ports for enhanced reliability
• Dedicated control port for Dante Controller access
• Fully compatible with AES67 and Dante Domain Manager (DDM)
• Supports multitrack recording via Dante Virtual Soundcard (not included)
• Works with standard off-the-shelf networking equipment (Cat 5e or higher)
• Compatible with DT168 & DT164-W expanders

Allen & Heath M-DL-DANTE64-A Description

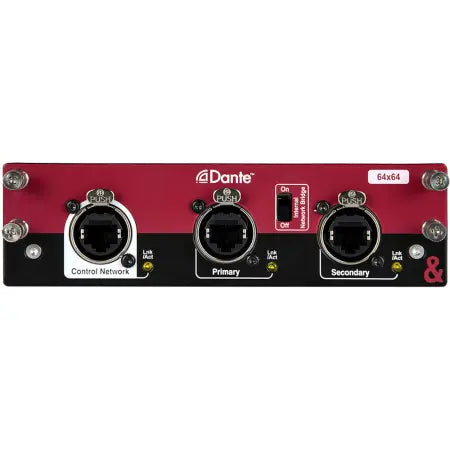

The M-DL-DANTE64-A card enables Dante integration with Allen & Heath dLive and Avantis mixing systems, providing 64x64 channels of low-latency audio over Ethernet. Whether you're routing audio between Front of House and Monitor systems or capturing multitrack recordings with Dante Virtual Soundcard, this module ensures exceptional audio quality without compromise. Its dual RJ45 audio ports support redundant or switched network configurations, while a third RJ45 control port gives access to the Dante Controller for easy setup and routing. Built-in support for AES67 ensures interoperability with a wide range of AoIP systems in both live and broadcast applications. Integration with Dante Domain Manager offers centralized control, enhanced security, and scalability across complex network environments. With plug-and-play operation and compatibility with standard IT infrastructure, the M-DL-DANTE64-A is a flexible, future-ready solution for expanding your Allen & Heath mixer’s capabilities.

M-DL-DANTE64-A Features

• 64x64 bidirectional Dante channels at 48 kHz
• 32x32 bidirectional Dante channels at 96 kHz
• Primary and Secondary Dante RJ45 ports for redundancy
• Dedicated Dante Control Network RJ45 port
• Internal network bridge to link dLive/Avantis and Dante control networks
• Plug-and-play operation
• Multitrack recording via Dante Virtual Soundcard (sold separately)
• AES67 compatibility for wide AoIP interoperability
• Dante Domain Manager (DDM) ready
• Supports up to 5 x superDANTE with dLive S Class
• Supports up to 2 x superDANTE with dLive C Class

M-DL-DANTE64-A Specifications

• Compatibility: Allen & Heath dLive / Avantis series
• Network Audio Ports: 2 x RJ45 (Primary & Secondary)
• Control Network Port: 1 x RJ45
• Sample Rates Supported: 48 kHz / 96 kHz
• Audio Channels: 64x64 @ 48 kHz, 32x32 @ 96 kHz
• Power Source: Via proprietary card interface
• Weight: 1.56 lb
• Dimensions (L x W x H): 11.3 x 11 x 3.7 in
