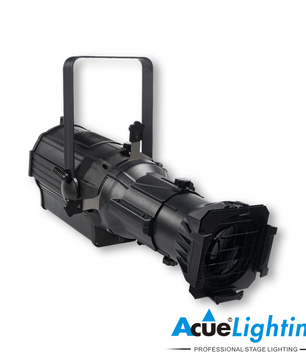

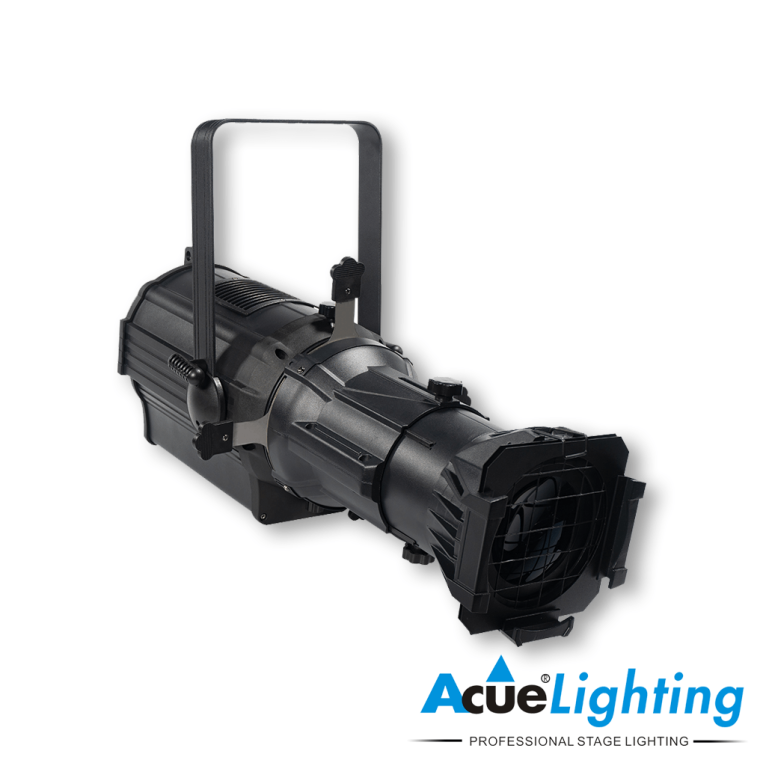

Acue Lighting LED Profile 300 Rev 2 (19 Degrees)

The Acue LED Profile 300 WW is our LED version of the well-known framing profile spot widely used in the lighting industry. The LED Profile 300WW is powered by a 300W Warm White (3200K) LED Source (50,000 hrs). The LED Profile 300WW has built in DMX Control and a power link option to connect multiple lights together without the need of a traditional dimmer pack. You can also use the display to control the fixture. The DMX or on board control allows you to adjust the dimmer, shutter, and shutter speed of the fixture. The LED Profile is available with 3 lens options. are ( 19˚, 26˚, & 36˚). We also have 10˚ and 50˚ lenses available seperately. The lenses are all glass lenses and the barrels are interchangeable with most other major brands, along with all of our other profile fixtures.

Please select a lens option above before adding fixtures to your cart.
You can view our 10˚ lenses here, and our 50˚ lenses here.


Light Source 300W COB LED
IP Rating IP 20 (Rated for indoor use only)
Total Power Draw 320W
Input Voltage 100-220V AC 50/60hz
Power I/O PowerCon In/Out, Linkable (max 6 units)
Available Lens Angles 19°, 26°, 36° (10° & 50° Sold Separately)
Operating Modes DMX, Auto, Manually through built-in display
DMX Channels 1/2/3 Channels via 3-pin XLR connectors In/Out
Dimmer 0-100% Electronic dimming control by DMX or manually through built-in display
Shutter Shutter strobe adjustment by DMX control
Focus Manual
