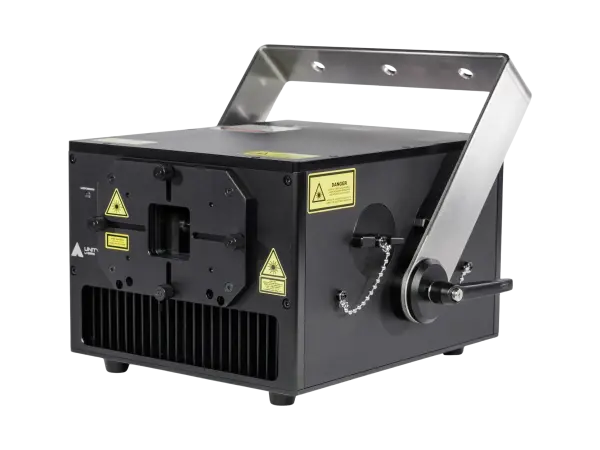

Pangolin Unity Elite 10 Pro FB4 (IP65)

High‑Output RGB Laser Projector for Professional Events

The Unity ELITE 10 PRO FB4 (IP65) is a premium‑grade full‑colour RGB diode laser projector designed to deliver powerful beam, graphics, text, and mapping shows for medium to large venues. With built‑in Pangolin FB4 control and a rugged IP65 rain‑proof enclosure, this unit is built for reliability in clubs, tours, rental companies, and outdoor installations. :contentReference[oaicite:0]{index=0}

Unity ELITE 10 PRO FB4 + Competitive Differences

• Guaranteed optical output of > 10‑11 W, providing bright and vivid performance even at long throw distances. :contentReference[oaicite:1]{index=1}
• Full RGB diode system with colour diodes: approximately 3 W red (637 nm), 4 W green (525 nm), 4 W blue (445 nm) for balanced colour mixing. :contentReference[oaicite:2]{index=2}
• IP65‑rated housing, fully sealed against dust and water jets, suitable for outdoor and demanding environments. :contentReference[oaicite:3]{index=3}
• High scan speed: 35,000 points/sec @ 8° scan angle, with max scan angle up to 45°, allowing detailed graphics, text and smooth beam shows. :contentReference[oaicite:4]{index=4}
• Comprehensive safety and control systems (key switch interlock, magnetic interlock, scan‑fail safety, mechanical shutter, masking plate) integrated via the FB4 control module. :contentReference[oaicite:5]{index=5}
• Global power compatibility (100‑240 V, 50‑60 Hz), wide operating temperature range (−10 °C to +45 °C), making it versatile for international use. :contentReference[oaicite:6]{index=6}

Unity ELITE 10 PRO FB4 Description

The Unity ELITE 10 PRO FB4 (IP65) is engineered for professionals demanding both brightness and robustness. With over 10‑11 W of optical power, it is capable of delivering powerful beams and vivid RGB visuals for medium to large indoor spaces (up to ~10,000 people) and medium‑sized outdoor shows. :contentReference[oaicite:7]{index=7}

The inclusion of the Pangolin FB4 control system grants full integration via DMX, ArtNet, sACN, Ethernet, PC and mobile app control. Built‑in safety features including keyed interlocks, scan‑fail protection, a mechanical shutter, emission delay, and masking plate keep operations safe even in challenging environments. :contentReference[oaicite:8]{index=8}

Physically, the unit is solid yet manageable in size. Housed in IP65 weatherproof casing, it can handle demanding environmental conditions. Its scan engine supports 45° maximum angles and maintains high resolution at 35,000 PPS; beam size is 6 × 6 mm with divergence under ~1.0‑1.2 mrad full angle. All color power and beam parameters are digitally adjustable via the FB4 module. :contentReference[oaicite:9]{index=9}

ELITE 10 PRO FB4 Features

• Full‑colour RGB diode laser sources
• Analogue modulation (up to ~100 kHz) for smooth dimming and effects :contentReference[oaicite:10]{index=10}
• Pangolin FB4 control built‑in: supports DMX, ArtNet, sACN, Ethernet, PC, mobile app, auto mode :contentReference[oaicite:11]{index=11}
• High‑speed XY scanning: 35,000 points/sec at 8°; capable of max 45° scan angle :contentReference[oaicite:12]{index=12}
• Complete safety suite: keyed interlock, magnetic interlock, scan‑fail safety, mechanical shutter, emission delay, masking plate :contentReference[oaicite:13]{index=13}
• Rugged, weatherproof construction: IP65 rating; suitable for outdoor and fixed installations :contentReference[oaicite:14]{index=14}

ELITE 10 PRO FB4 Specifications

• Guaranteed Optical Output: > 10‑11 W total RGB :contentReference[oaicite:15]{index=15}
• Red / Green / Blue Power (mW): ≈ 3,000‑3,200 / 4,000 / 4,000 mW :contentReference[oaicite:16]{index=16}
• Wavelengths: ~ 637 nm (Red) / 525 nm (Green) / 445 nm (Blue) :contentReference[oaicite:17]{index=17}
• Beam Size: 6 × 6 mm :contentReference[oaicite:18]{index=18}
• Beam Divergence: < 1.0–1.2 mrad full angle :contentReference[oaicite:19]{index=19}
• Scan Speed: 35,000 points/sec @ 8° :contentReference[oaicite:20]{index=20}
• Maximum Scan Angle: 45° :contentReference[oaicite:21]{index=21}
• Power Requirements: 100‑240 V, 50‑60 Hz :contentReference[oaicite:22]{index=22}
• Power Consumption: Approx. 300‑350 W max :contentReference[oaicite:23]{index=23}
• Operating Temperature Range: −10 °C to +45 °C :contentReference[oaicite:24]{index=24}
• Weight: ~ 12.7‑13.5 kg (≈ 28‑30 lb) :contentReference[oaicite:25]{index=25}
• Dimensions (WxHxD): ~ 338 mm × 191 mm × 328 mm (≈ 13.3″ × 7.5″ × 12.9″) :contentReference[oaicite:26]{index=26}
• Ingress Protection Rating: IP65 :contentReference[oaicite:27]{index=27}

What’s in the Box

• Unity ELITE 10 PRO FB4 IP65 laser projector unit :contentReference[oaicite:28]{index=28}
• Heavy‑duty protective flight / transport case :contentReference[oaicite:29]{index=29}
• E‑stop remote + 10 m (≈ 30 ft) cable :contentReference[oaicite:30]{index=30}
• Ethernet cable (~ 10 m / 30 ft) :contentReference[oaicite:31]{index=31}
• Power cable (~ 1.5 m / 4.5 ft) :contentReference[oaicite:32]{index=32}
• Interlock & safety keys (set of 4) :contentReference[oaicite:33]{index=33}
• Outdoor RJ45 connectors, manual, quick start guide, variance / safety documentation :contentReference[oaicite:34]{index=34}
