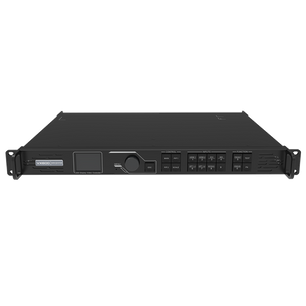

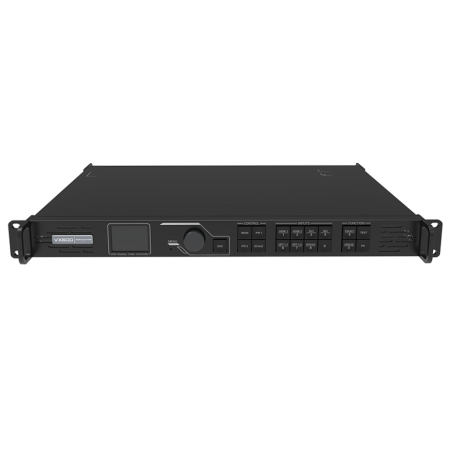

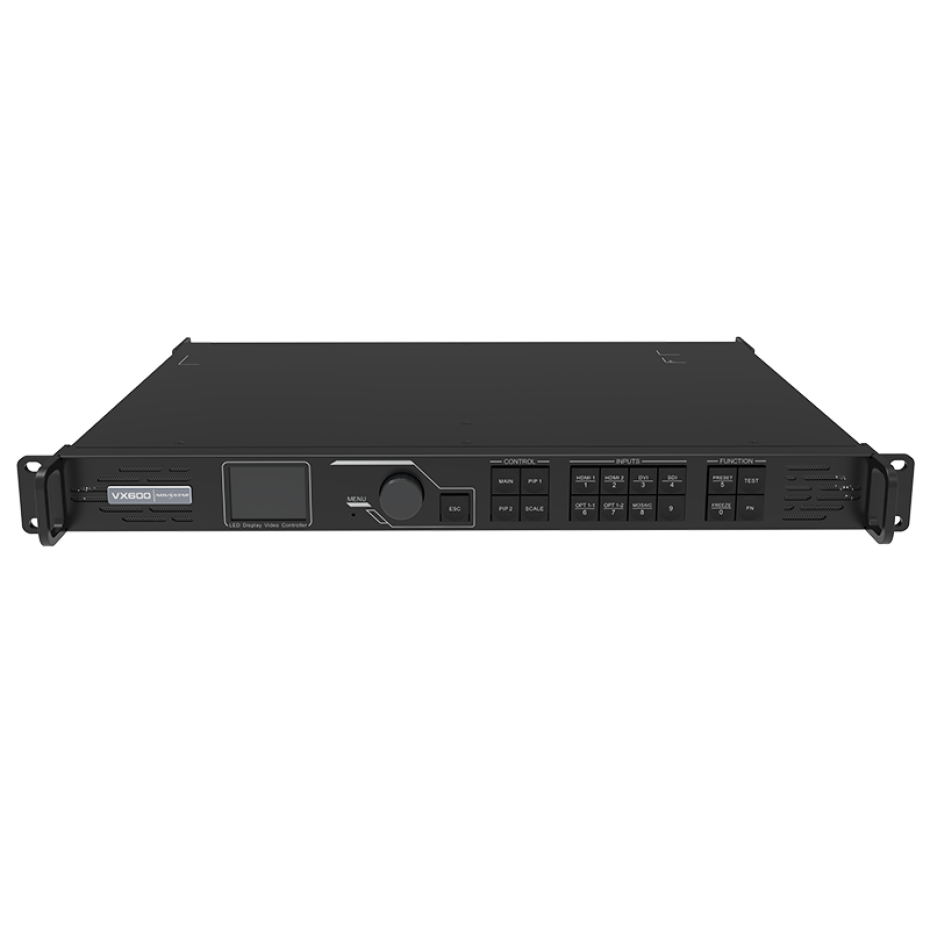

NovaStar VX600 | 3.9 Million Pixel Processor

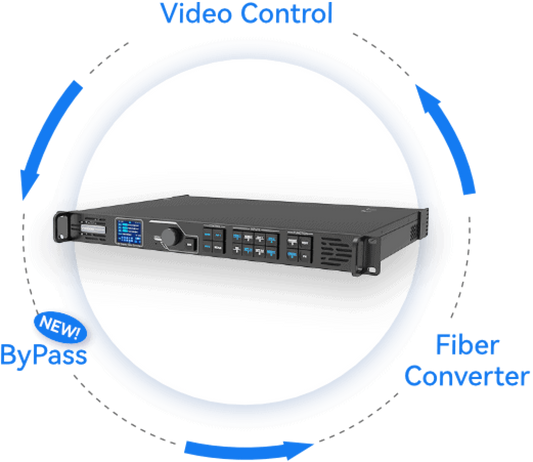

The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixel and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.

The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

What's more, the VX600 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.

Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.


Loading Capacity

3.9 million pixels


Max Width & Height

Width 10,240 pixels x Height 8,192 pixels


Layers

3 Layers


Inputs

1x 3G SDI (IN & LOOP)
1x HDMI1.3 (IN & LOOP)
1x HDMI1.3
1x DVI (IN & LOOP)
1x OPT


Outputs

6x RJ45
2x 10G OPT
1x HDMI1.3 (For Monitor or Preview)


GENLOCK (IN & LOOP):Yes

Low Latency:Yes

Input Source Backup:Yes

Bypass Mode:Yes

Fiber Converter Mode:Yes

Electrical Parameters

Power connector 100–240V~, 1.5A, 50/60Hz
Rated power consumption 28 W


Operating Environment

Temperature –10°C to +60°C
Humidity 20% RH to 90% RH, non-condensing


Storage Environment

Temperature –20°C to +70°C
Humidity 10% RH to 95% RH, non-condensing


Physical Specifications

Dimensions 483.6 mm × 351.2 mm × 50.1 mm
Net weight 4 kg
Gross weight 6.3 kg


Packing Information

Accessories

1x Power cord
1x HDMI to DVI cable
1x USB cable1x Ethernet cable
1x HDMI cable
1x Quick Start Guide
1x Certificate of Approval
1x Customer Letter
1x Safety Manual
Packing box 565 mm × 175 mm × 450 mm


Noise Level (typical at 25°C/77°F)
45 dB (A)
