ProX XT-GRU-PKGX6 | Modular 6X Rapid U Grid Trio Package

Modular 6X Rapid U Grid Trio Package for Moving Heads

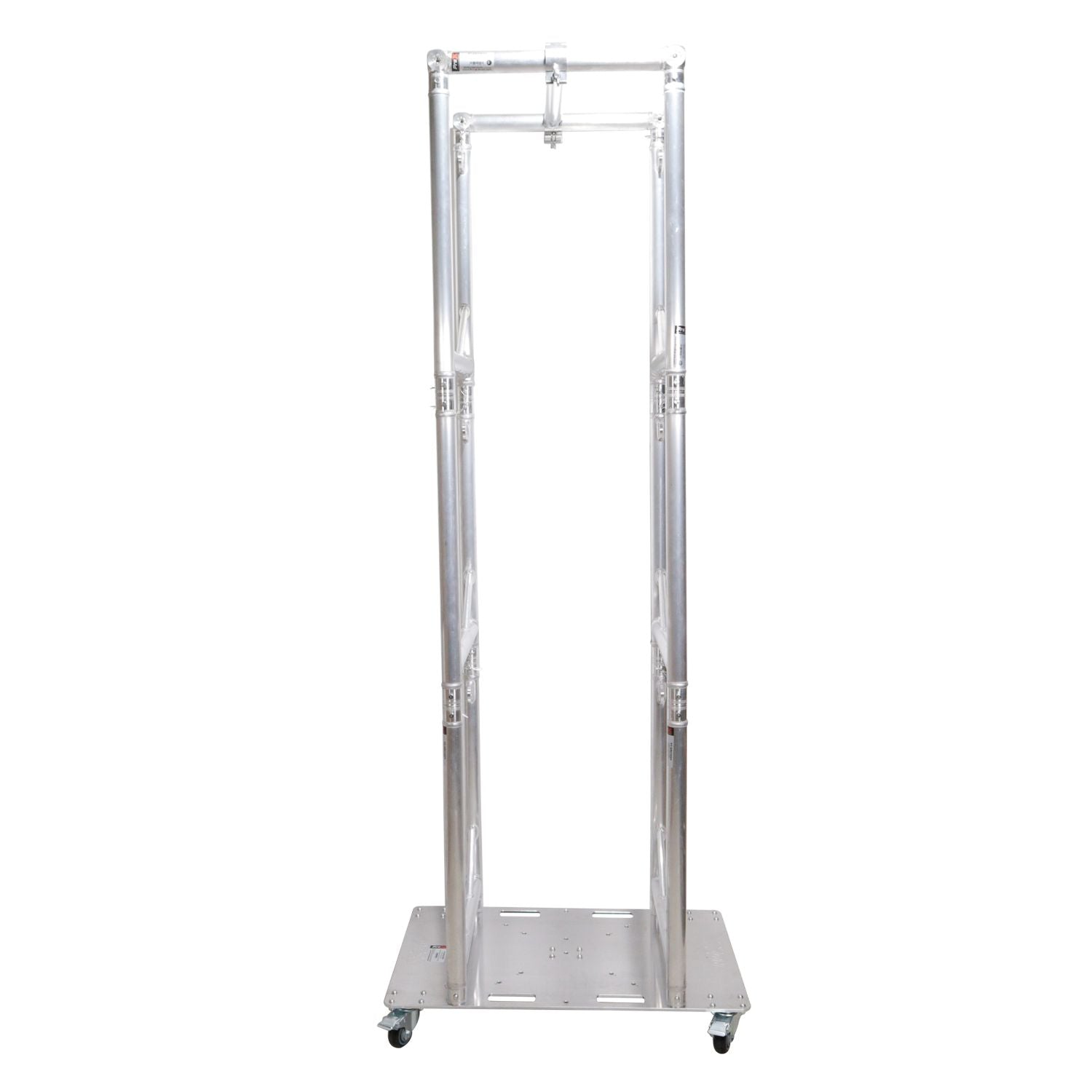

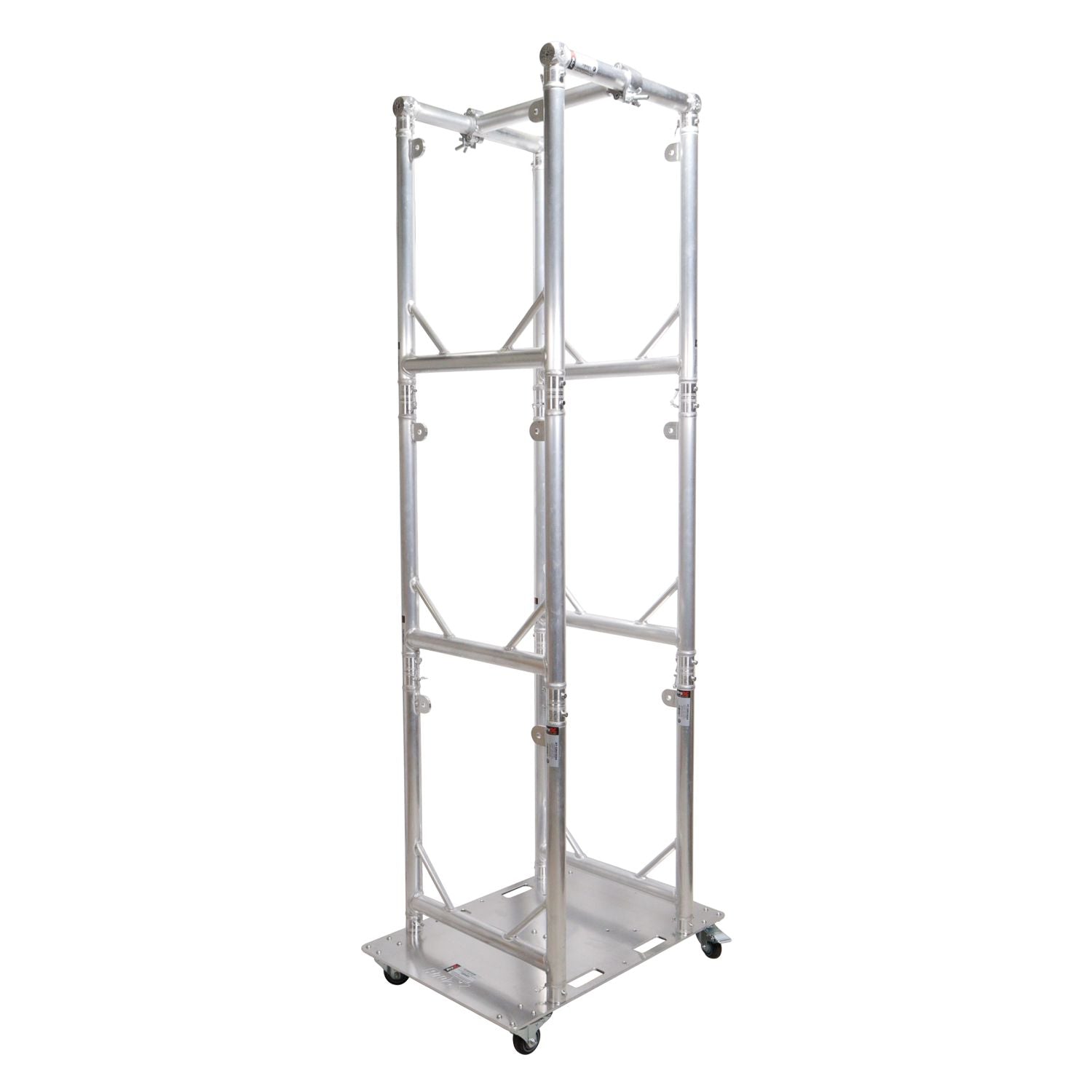

The ProX XT-GRU-PKGX6 is a versatile and expandable modular lighting grid designed to accommodate up to 10U modules, making it ideal for moving heads and entertainment lighting. This grid package includes essential components for mounting, moving, and storing lighting fixtures for stages, performance areas, and touring productions. The XT-GRU3024 grid units offer fully customizable configurations, allowing you to hang up to 10 grids beneath each other for unique layouts. Constructed from high-strength EN-AWT6 6082 aluminum, each grid unit is engineered for durability and stability. The 10mm AWT6 6082 aluminum rolling baseplate features handle cutouts and multiple drilled stud mounting holes, providing flexibility in setup. The baseplate is compatible with XT-GRU3024 grid units and F34 trussing products. With the XT-GRU3024 Rapid Grid™ modular design, users can create endless fixture arrangements, including single, double, or laddered hanging options. The design allows for expansion to a complete wall of hanging positions. Each U module includes two safety point attachments for various fixture styles.

ProX XT-GRU-PKGX6 Competitive Differences

• Modular design allows endless configuration options
• Accommodates up to 10 grids for flexible hanging layouts
• Durable EN-AWT6 6082 aluminum construction
• Rolling baseplate with locking casters for easy transport
• Industry-standard dimensions compatible with other trussing systems
• TUV-certified aluminum welding for reliability and safety

ProX XT-GRU-PKGX6 Description

Designed for professional lighting applications, the ProX XT-GRU-PKGX6 simplifies the process of mounting and organizing moving head lights. Its modular design ensures a seamless expansion process, allowing you to configure the grid system to meet your specific needs. The lightweight yet robust aluminum construction enhances stability while maintaining portability. With the included baseplate, rolling the XT-GRU-PKGX6 from one venue to another is effortless. The locking casters provide stability during use, while the TUV-certified welding ensures long-lasting performance. Whether you need a compact fixture arrangement or an extensive lighting wall, this system provides the flexibility required for professional productions.

ProX XT-GRU-PKGX6 Features

• Based on the XT-GRU3024 Rapid Grid™ Unit
• Single Grid Dimensions: 23.6" x 29.6" x 2" Tube O.D.
• Load Capacity: Up to 110 lbs per segment
• Manufactured in-house for superior quality control
• Constructed from EN-AWT6 6082 Aluminum
• 0.08" (2mm) wall thickness for enhanced durability
• TUV-certified aluminum welding
• Includes connecting hardware for easy assembly

ProX XT-GRU-PKGX6 Specifications

• Material: EN-AWT6 6082 Aluminum
• Wall Thickness: 0.08" (2mm)
• Load Capacity: 110 lbs per segment
• Weight: 18 lbs per 3U segment (excluding baseplate)

ProX XT-GRU-PKGX6 Exterior Dimensions & Weight

• XT-BP2430W: 6.00"H x 24.00"W x 37.00"L – Weight: 38.00 lbs

ProX XT-GRU-PKGX6 Shipping Dimensions & Weight

• Box 1 of 4: XT-GRU-ARM – 3.00"H x 24.00"W x 5.00"L – Shipping Weight: 4.00 lbs
• Box 2 of 4: XT-BP2430W – 7.00"H x 25.00"W x 38.00"L – Shipping Weight: 40.00 lbs
• Box 3 of 4: XT-GRU3024 (6 units) – 6.00"H x 25.00"W x 32.00"L – Shipping Weight: 12.00 lbs
• Box 4 of 4: XT-GRTOP24 (2 units) – 3.00"H x 24.00"W x 5.00"L – Shipping Weight: 5.00 lbs

ProX XT-GRU-PKGX6 Package Contents

• XT-GRTOP24 (2): 24" Width Module Top Bar for ProX XT-GRU Rapid Grid Modular System
• XT-GRU3024 (6): 30 x 24 in. U Shape Module for ProX XT-GRU Rapid Grid Modular System
• XT-BP2430W (1): 24 x 30 in. Module Base Plate with Locking Casters
• XT-GRU-ARM (1): 24" Truss Tube with Dual Clamp
