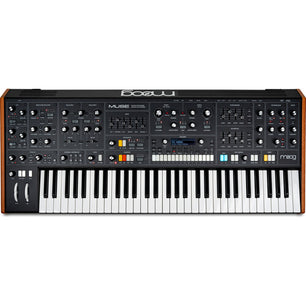

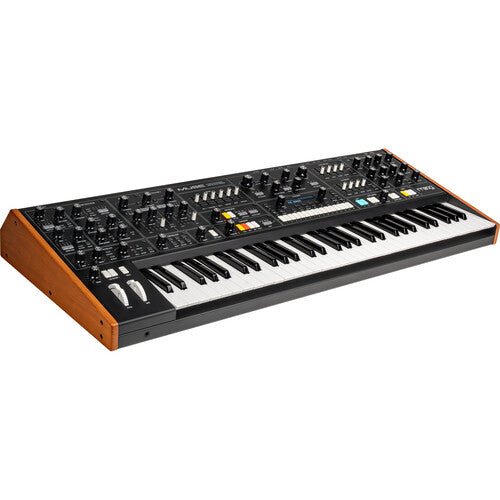

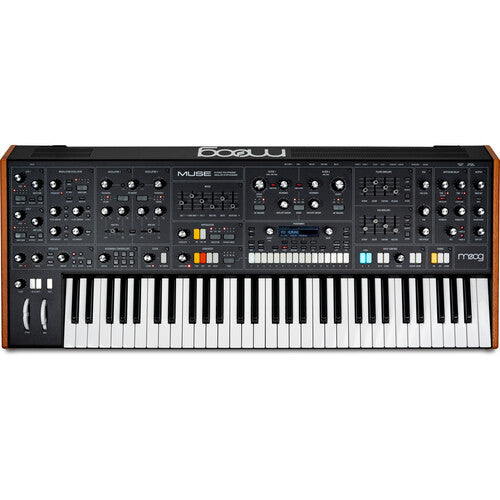

Moog Muse | 8-Voice Analog Bi-Timbral Polyphonic Synthesizer

Analog Bi-Timbral Polyphonic Synth for Stage and Studio

The Moog Muse is an analog bi-timbral polyphonic synthesizer designed for modern musicians, producers, and sound designers. Equipped with eight analog voices, each driven by dual VCOs, modulation oscillators, dual filters, and a stereo VCA, the Muse merges classic Moog circuitry with cutting-edge technology. Its intuitive knob-per-function layout, powerful 64-step sequencer, and stereo Diffusion Delay processor make the Muse a versatile and inspiring instrument for live performances and studio work alike. Split or layer the keyboard for endless creative possibilities with the 61-key Fatar keybed, while using the built-in arpeggiator and sequencer to craft compelling melodic ideas.

Moog Muse Competitive Differences

• Eight analog voices with dual VCOs and per-voice modulation
• Stereo Diffusion Delay processor for vintage-inspired delay effects
• 61-key Fatar keybed with velocity and channel aftertouch
• 64-step sequencer with parameter recording and probabilistic functions
• Bi-timbral functionality for splitting or layering sounds
• Comprehensive analog CV, MIDI, and USB connectivity

Moog Muse Description

The Moog Muse combines iconic Moog designs with advanced features, making it a powerful tool for sound design and performance. With its eight analog voices, each equipped with two VCOs inspired by the Minimoog Voyager, a modulation oscillator, and dual discrete ladder filters, the Muse delivers lush, organic sounds. The CP3-style mixer and per-voice stereo VCA add depth and warmth, while the bi-timbral architecture allows you to split or layer two distinct sounds across the keyboard. The Muse's intuitive interface makes it easy to explore its vast sonic capabilities. The 61-key semi-weighted Fatar keybed provides an expressive playing experience, while the built-in sequencer and arpeggiator offer flexible control over melodies and rhythms. The stereo Diffusion Delay adds a unique, hypnotic touch to your sound, inspired by vintage digital rack delays. With a total of 256 patch memories and 256 sequencer slots, the Muse offers ample storage for your creations, allowing you to save and recall sounds effortlessly.

Moog Muse Features

• 61 semi-weighted keys with velocity and aftertouch
• Dual analog VCOs per voice with FM and wave mixing
• Per-voice modulation oscillator for additional sonic variation
• CP3-style mixer with saturating options and ring modulation
• Dual discrete transistor ladder VCFs per voice
• Stereo discrete transistor VCA per voice
• Two ADSR envelopes per voice with variable curves and looping
• Two LFOs with unique waveshapes and triggered random generators
• 64-step sequencer with sequence chaining and parameter recording
• Bi-timbral functionality for split or layered sounds
• 256 patch memory with 224 factory patches and room for user presets
• Analog CV, MIDI, and USB connectivity
• Integrated arpeggiator with generative behavior
• OLED display for easy navigation and editing

Moog Muse Specifications

• Sound Generation: Analog
• Keyboard: 61 full-size semi-weighted keys with velocity and aftertouch
• Polyphony: 8 voices (stereo)
• Arpeggiator: Yes
• Sequencer: 64-step with 224 factory sequences
• Oscillators: Dual VCOs per voice with FM, PWM, Sawtooth, Square, Triangle
• Filters: Dual transistor ladder VCFs with low-pass, high-pass
• Envelopes: Dual ADSR per voice with looping
• Built-in Effects: Stereo Diffusion Delay

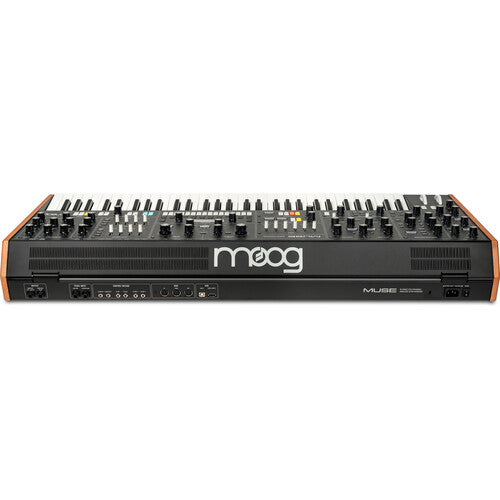

• Audio I/O:
  • 2x 1/4" TRS Balanced Stereo Main Output
  • 1x 1/4" TRS Unbalanced Headphone Output
• MIDI I/O:
  • 1x 5-Pin DIN MIDI Input
  • 1x 5-Pin DIN MIDI Output
  • 1x 5-Pin DIN MIDI Thru
• CV/Gate I/O: 2x 1/8" TS CV Input, 2x 1/8" TS CV Output
• Power: AC Input (100 to 240 VAC, 50/60 Hz)
• Dimensions: 39" x 17" x 4.5" (99.1 x 43.2 x 11.4 cm)
• Weight: 32 lb (14.5 kg)
• Package Weight: 48 lb
• Box Dimensions: 46.2" x 23.5" x 10.5"

What's In The Box

• Moog Muse Synthesizer
• Power Cord
