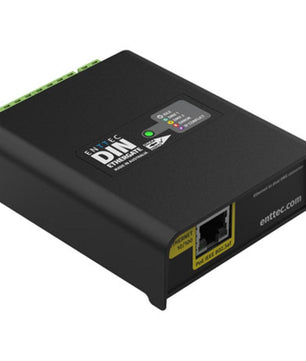

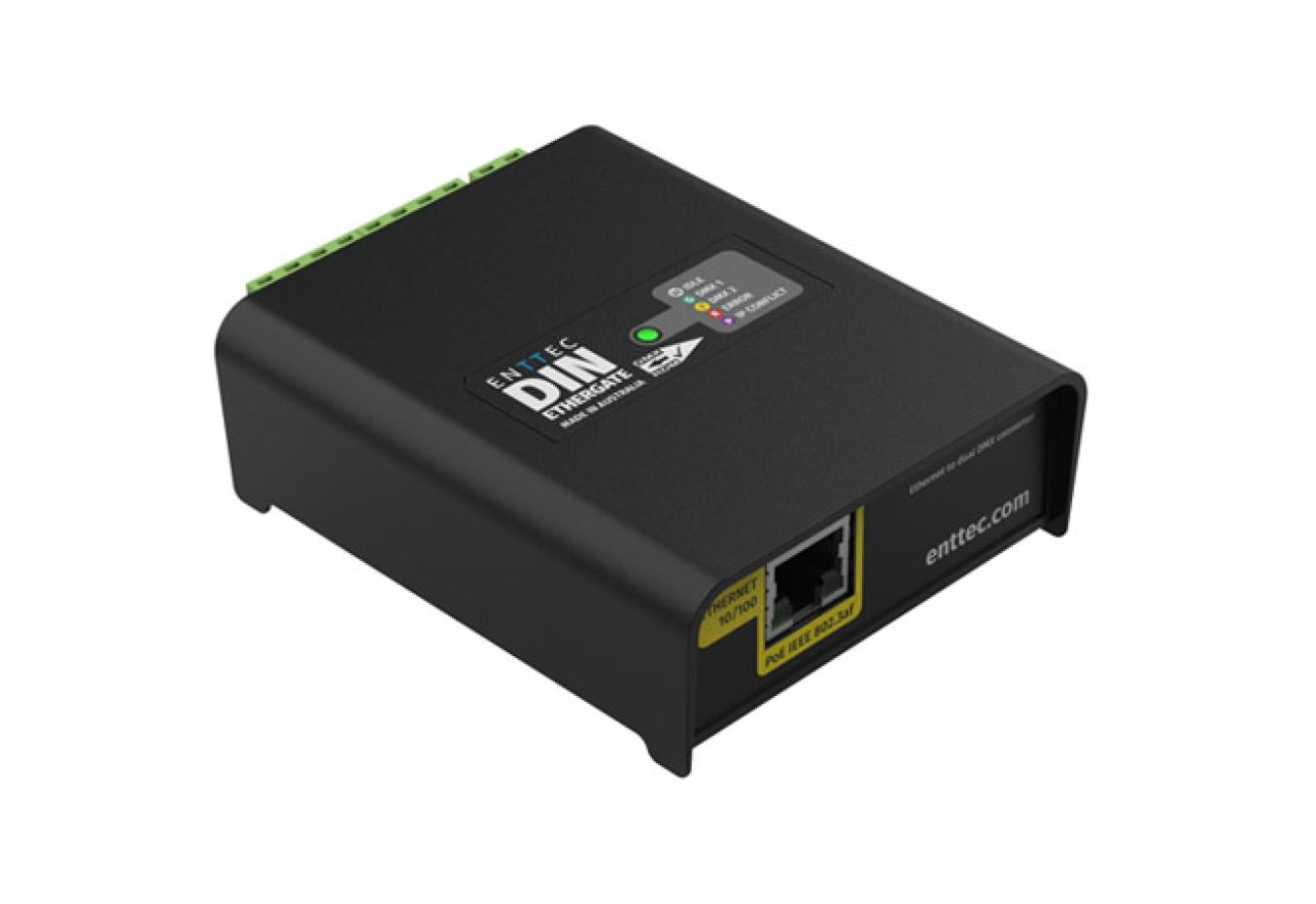

Enttec DIN ETHERGATE | Ethernet to Dual DMX (Phoenix Outs)

$195.00

Order within [hour] to get by [date_end]

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

Enttec DIN ETHERGATE | Ethernet to Dual DMX (Phoenix Outs)

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

ENTTEC’s DIN ETHERGATE is a robust and reliable
installation grade DMX node engineered to take any
architectural, commercial or entertainment project to
the next level.
With 2 universes of bi-directional eDMX -> DMX
conversion and ArtRDM support, the DIN ETHERGATE is
a flexible, cost-effective method to connect physical
DMX devices to your network infrastructure.
The configuration as well as the firmware updates are
managed through the localhost web interface to
simplify commissioning from any computer on your
network.

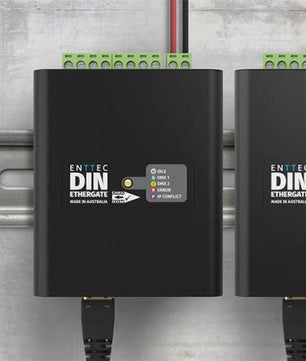

The DIN ETHERGATE’s slim, 4 DIN-module electrically
insulated housing supports TS35 DIN and surface
mounting for fast installation. Pluggable terminal
blocks with inbuilt termination line make wiring
simple.
The Power over Ethernet (PoE) featuring DIN Ethergate
reduces the number of cables and can be deployed
remotely without the need for a local power source
close to the device.

FEATURES:

Two bi-directional DMX/ E1.20 RDM ports with
optional termination and RDM support.
IEEE 802.3af PoE (Power over Ethernet) or DC
12-24v input.
Support for Art-Net, sACN and ESP to DMX
conversion.
HTP/LTP merging support for up to 2 DMX
sources.
Pluggable terminal blocks and inbuilt DMX
termination.
Configurable DMX output refresh rate.
Intuitive device configuration and updates
through the inbuilt web interface.
Surface or TS35 DIN rail mount.
10/100 Mbps network speed.
‘Current Port Buffer’ allows live DMX values to
be viewed.

SPECIFICATION:

Connectors
1* LAN port (RJ45)
2* Bi-directional DMX
(4 Pin Phoenix)
1* Power Input
(2 Pin Phoenix)
IP rating IP20
LED Indicators
Forward facing status
indicator
Network Link / Activity
indicators (RJ45 Port)
eDMX protocols
Art-Net Art-RDM
sACN ESP
DMX protocols
USITT DMX512-A
ANSI E1.20 RDM
DMX & RDM timings
Break time 300ms
Mark after
Break (MAB) 15ms
Art-Net merging 2 Sources
Max. channels 2 Universes (1024ch)
Max. refresh rate 44FPS
Network Speed 10/100Base-T
Power over Ethernet IEEE 802.3af
Network configuration Static (default
192.168.0.10) / DHCP.
Firmware updates Through web interface
Inbuilt DMX termination Yes
DC input voltage 12-24V DC1
Max. power draw 7W
Max. heat dissipation 7W
Operating temperature
0°C to 50°C
32°F to 122°F
Operating humidity
5- 95%
(non-condensing)
Body material ABS plastic
Mounting options
Surface mount
TS35 DIN-Rail mount
Unit dimensions 100.5 * 72.25 * 34mm
Unit weight 0.11kg / 0.24lbs
1
Please refer latest User Manual for revision history and firmware
version.
Shipping dimensions 140 * 140* 40mm
Shipping weight 0.16kg / 0.35lbs
Warranty 3-year return to base
manufacturer warranty
