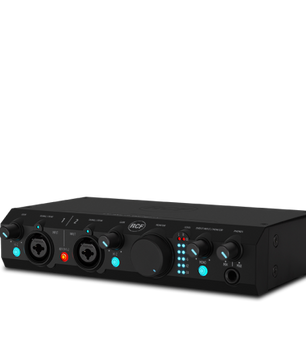

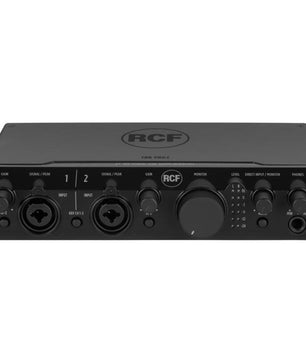

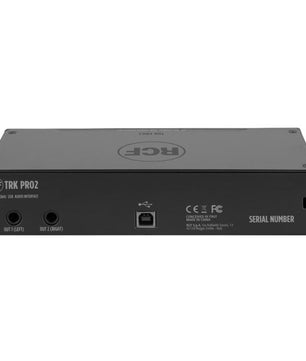

RCF TRK PRO2 | 2x2 USB Audio Interface

$249.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

RCF TRK PRO2 hardware interface packs a robust and well-thought USB 2.0 studio-in-a-box with all the connectivity required for microphones, musical instruments, or line-level signals to a computer running macOS or Windows. The 2-channel internal linear preamp circuit allows the connection of 48V phantom-powered microphones and Hi-Z level instruments. Input signals can be routed to DAW (Digital Audio Workstation) at up to 24-bit, 192 kHz resolution; similarly, software monitoring and direct monitoring can be routed to the balanced outputs with variable mixing ratio. The interface can be connected to an amplifier and speakers, powered monitors, headphones, an analog mixer, or other analog audio devices.

FEATURES:

2 In 2 Out USB 2.0 Bus-Powered Audio Interface
Up to 24-Bit/192kHz
2 Mic and Instrument/Line Combo input
High-Quality Preamps
Balanced Output
Independent Headphone Volume Control
Zero-latency monitoring
Independent Gain Control with Signal-Peak LED
Perfect for RDNet Measures
Rack Mount Ears included

SPECIFICATIONS:

MIC INPUT 1/2 (Balanced):

Freq. Response: 20Hz-20kHz, +/-0.1dB THD+N: <0.0011%, -1dBFS, 20Hz-20kHz Noise EIN: < -120dB Dynamic Range: 107dB (A-weighted)
Input Impedance: 3.5KOhm Gain Range: -9 dB ~ +47 dB Maximum Input Level: +9 dBu

LINE INPUT 1/2 (Balanced):

Freq. Response: 20Hz-20kHz, +/-0.1dB THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz Dynamic Range: 107 dB (A-weighted
Input Impedance: 15 kOhm Gain Range: -20 dB ~ +36 dB Maximum Input Level: +20 dB

INSTRUMENT INPUT 1/2 (Unbalanced):

Freq. Response: 20Hz-20kHz, +/-0.1dB THD+N: 107dB (A-weighted) Input Impedance: 1MOhm Gain Range: -10 dB ~ +46 dB Maximum Input Level: +10 dBu

ANALOG OUTPUT (Balanced):

Maximum Output Level 0dBFS=12dBu Freq.Response: 20 Hz~20 kHz,+/-0.2 THD+N: <0.0012%, -1dBFS, 20Hz-20 kHz Dynamic range: 107 dB (A-weighted)

HEADPHONES OUTPUT (Unbalanced):

Output Impedance: <10 Ohm Max Output Level: 500 Ohm - 114 mW

SUPPORTED SAMPLE RATES:

44.1 kHz, 48 kHz, 88.2 kHz,96 kHz, 176.4 kHz, 192 kHz

SUPPORTED BIT DEPTH:

16 Bit, 24 Bit

Cabinet/Case Material: Steel
Hardware: Rack mount ears incuded
Color: Black - RAL 9005
Rack mounting: 1/2 19", 1U
Height: 46 mm / 1.81 inches
Width: 210 mm / 8.27 inches
Depth: 125.8 mm / 4.95 inches
Weight: 0.85 kg / 1.87 lbs
