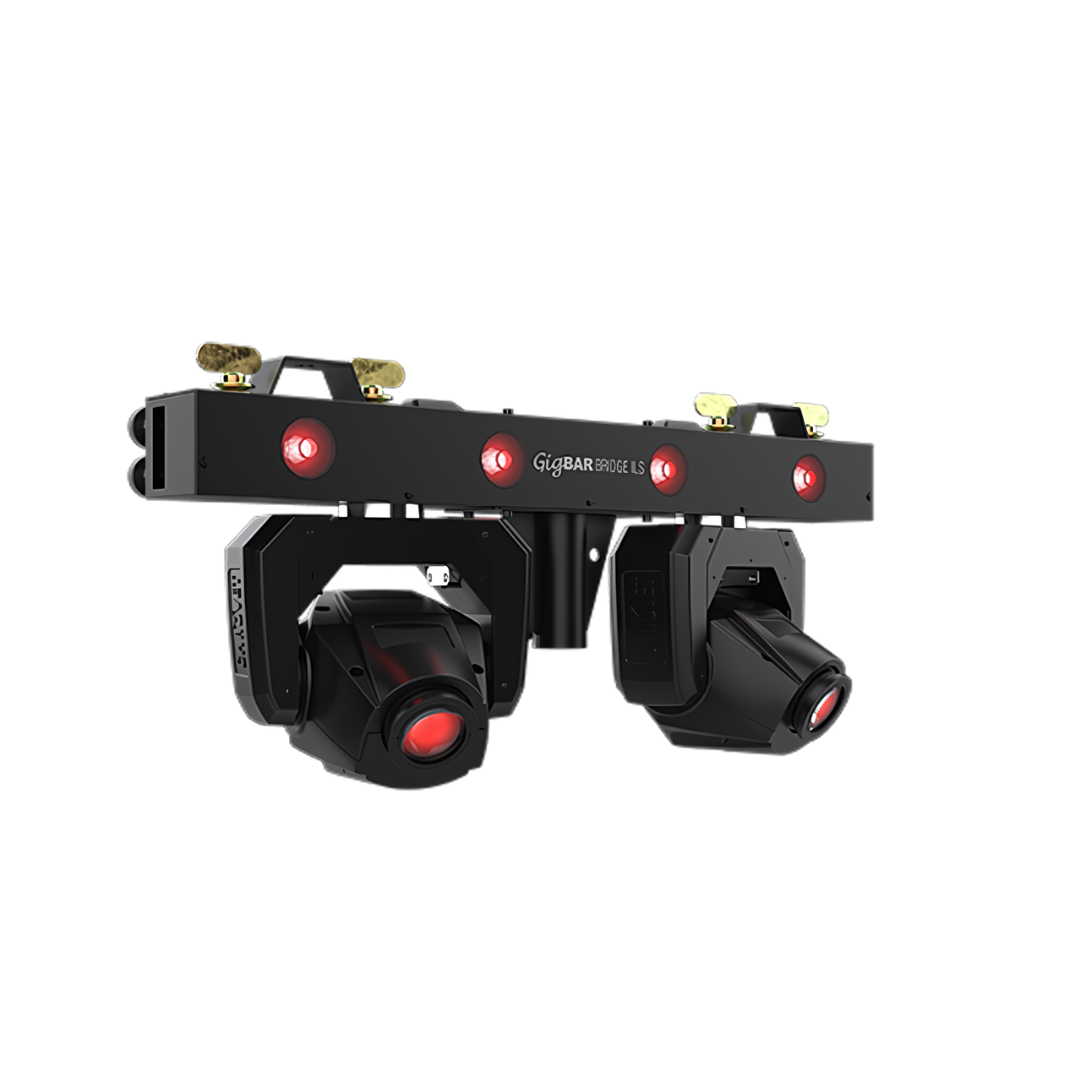

Chauvet DJ GigBAR Bridge ILS | 40W Moving Heads & 10W Wash Lights, Wireless DMX & ILS | All-in-One Lighting System with ILS Compatibility (Demo Condition)

$865.00

Order within [hour] to get by [date_end]

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

Chauvet DJ GigBAR Bridge ILS | 40W Moving Heads & 10W Wash Lights, Wireless DMX & ILS | All-in-One Lighting System with ILS Compatibility (Demo Condition)

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Customizable Party Lighting System with ILS Compatibility

The Chauvet DJ GigBAR Bridge ILS offers a versatile and dynamic lighting solution in a single, easy-to-use system. Featuring powerful moving heads and wash lights pre-mounted on a single bar, this 2-in-1 setup minimizes setup time while delivering professional-grade lighting effects. With ILS (Integrated Lighting System) compatibility, the GigBAR Bridge ILS enables seamless integration with other ILS fixtures for coordinated light shows, making it ideal for DJs, event organizers, and venues.

Chauvet DJ GigBAR Bridge ILS Competitive Differences

2-in-1 system includes moving heads and washes pre-mounted for rapid deployment.
Integrated ILS compatibility allows synchronized light shows across multiple fixtures.
Totem Mode keeps moving heads focused on the dance floor for optimal effects.
Built-in D-Fi transceiver enables wireless DMX or ILS communication.
Power linking supports up to 8 units at 120V or 13 units at 230V for simplified cabling.
Full-color LCD display for intuitive navigation and control.
Locking system ensures quick and secure connections between multiple fixtures.
Durable design with removable bracket for truss or tripod mounting.

Chauvet DJ GigBAR Bridge ILS Description

The Chauvet DJ GigBAR Bridge ILS combines powerful moving heads and washes into a single, compact unit for a complete lighting experience. Designed with ILS compatibility, this system integrates effortlessly with other ILS-enabled fixtures to create stunning, synchronized light shows. The moving heads feature 9 colors, 9 gobos, and creative programming options with separate color and gobo wheels. The wash lights utilize hex-color RGBAW + UV LEDs for vibrant, customizable lighting effects. Equipped with a built-in D-Fi transceiver, the GigBAR Bridge ILS supports wireless DMX and ILS signals, eliminating the need for extensive cabling. Its totem mode ensures the moving heads remain focused on the dance floor, making it ideal for weddings, parties, and live performances. With quick setup, secure connections, and a carry bag for easy transport, the GigBAR Bridge ILS offers maximum flexibility and portability for any event.

GigBAR Bridge ILS Features

2-in-1 system with pre-mounted moving heads and wash lights for rapid setup.
Powerful moving heads with 40W cool white LED and separate color/gobo wheels.
Wash lights feature 4 hex-color RGBAW + UV LEDs for dynamic color mixing.
Built-in D-Fi transceiver for wireless DMX and ILS communication.
Totem Mode for focused moving head effects on the dance floor.
Full-color LCD display for easy access to settings and functions.
Locking system for quick and secure fixture connections.
Power linking supports multiple units for simplified setups.

GigBAR Bridge ILS Specifications

DMX Channels: 3, 16, or 46.
Light Source (Moving Head): 1 x 40W cool white LED; 50,000-hour life expectancy.
Light Source (Wash): 4 x 10W RGBAW + UV LEDs; 50,000-hour life expectancy.
Beam Angle (Wash): 22°; Field Angle (Wash): 38°.
Maximum SPL: 191 W, 1.5 A @ 120V; 175 W, 1 A @ 230V.
Illuminance (Moving Head): 6,594 Lux @ 2m; (Wash): 375 Lux @ 2m.
Power Linking: 8 units @ 120V; 13 units @ 230V.
Connectivity: 3-pin XLR DMX, D-Fi wireless, and PowerCON input.
Dimensions: 26" x 2.8" x 12" (660 x 71 x 305 mm); Weight: 18.6 lbs (8.4 kg).
Approvals: CE, RoHS, FCC.

What's In The Box

GigBAR Bridge ILS
Power Cord
2 Hanging Brackets
Carry Bag
Quick Reference Guide
