High End SolaPix 7

$3,249.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Details

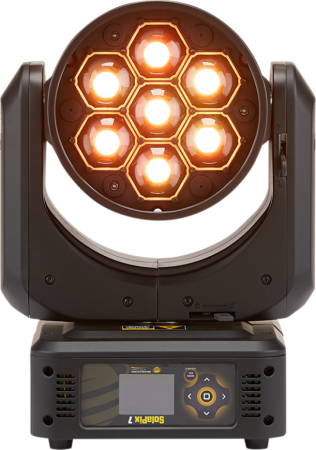

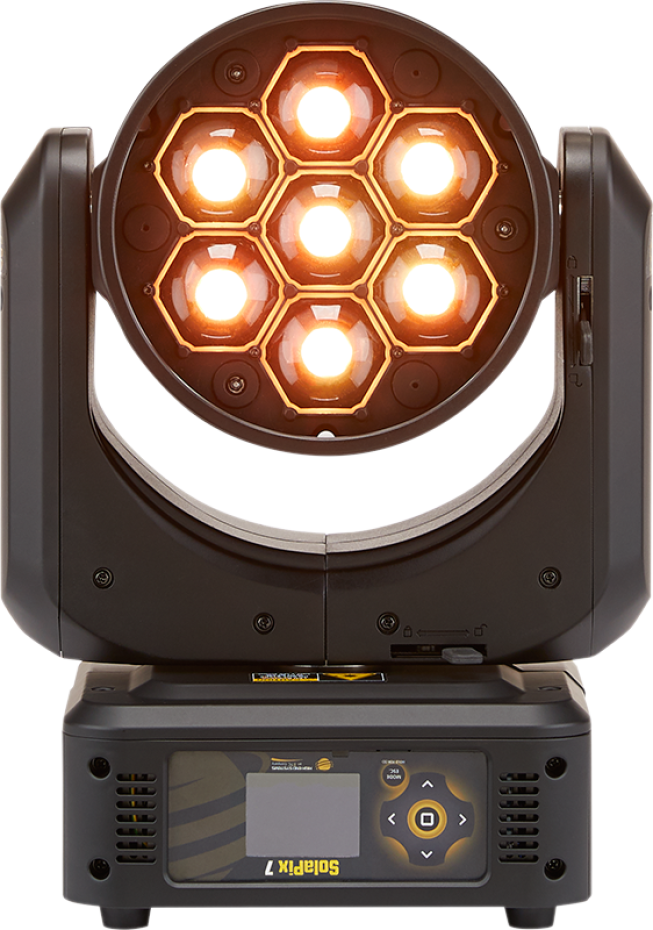

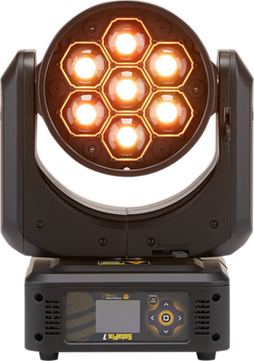

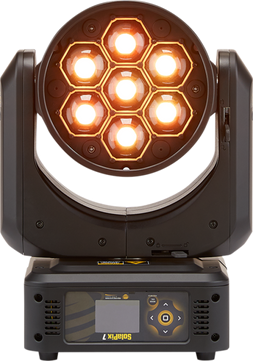

The High End Systems SolaPix 7 is a 7 x 40 Watt RGBW LED Moving Head Wash featuring pixel control, 4.5 to 60 degree zoom, FleX Effects engine for customizable macros, modular control with Art-Net or sACN, and a Patent-pending HaloGraphic Pixel Definition system.

High End Systems SolaPix 7 Features

Additive LED, RGBW, color mixing system for extremely powerful saturated colors and tunable white control
Versatile 4.5° - 60° zoom
Extremely efficient optical system provides market-leading lumen output
FleX Effects Engine for easily customizable macros
Pixel mapping on all models
Modular control with Art-Net, or sACN in addition to simultaneous DMX control
Patent-Pending HaloGraphic Pixel Definition
High End Systems SolaPix 7 Specifications

Source

LED Quantity: 7
Max Field Lumens: 5,500
Integrating Sphere Lumens: 5,600
LPW: 20
LED Type: 40W Osram Ostar LED
LED Life: 50,000 hours
Color

Color Mixing: Red, Green, Blue, White
Color Temperature Range: Variable from 2800K to 8000K
Optical

Beam Angle: 4.5 to 60 Degree
Flicker Control/Hz Range: 2.4kHz, 16 kHz
Control

Input Method: DMX (5-Pin) or Ethernet
Protocols: DMX via RS-485, Art-Net, or sACN via Ethernet
RDM Functions: Yes
UI Type: Full color graphical UI with 6 button navigational control
Local Control: Yes
Effects Engine: Built in effects engine with multi parameter color and speed control
Pixel Mapping: Individual addressing via DMX, Art-Net, or sACN
Dimming Performance: 16-Bit, DMX controlled
Electrical:

Max Wattage: 408 W @ 100 V
Max Current: 4.1 A @ 100 V
Voltage Range: 100-240 V 50-60 Hz
Input Method: powerCON TRUE1
Thermal

Ambient Operating Temperature: 32 to 104F
Fan Mode: Standard, Studio, User fan control channel
Physical

Pan/Tilt Range: 540 Pan, 255 Tilt
Pan/Tilt Speed: Pan - 360 degree in 1.2 s, Tilt - 180 degree in 0.58 s
Weight: 20.2 lbs
Materials: Steel and aluminum frame with molded plastic covers
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP20
Included Accessories: powerCON TRUE1 to bare end fixture tail, (2) clamp brackets, safety cable
Warranty

Fixture Warranty: 5 years light engine, 2 years for complete fixture
Regulatory & Compliance

Regulatory Standards: Listed to UL 1573, Certified to CSA STD. C22.2 No: 166, EAC
CE Compliance: Safety: EN 60598-1, EN 60598-2-17, EN 62031, EN 62471 / EMC: EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
Complies to ROHS Directive: Yes
Safety

Safety: Minimum distance to illuminated surface = 2.0 m, Minimum distance from fixture head to combustible materials = 0.1m
